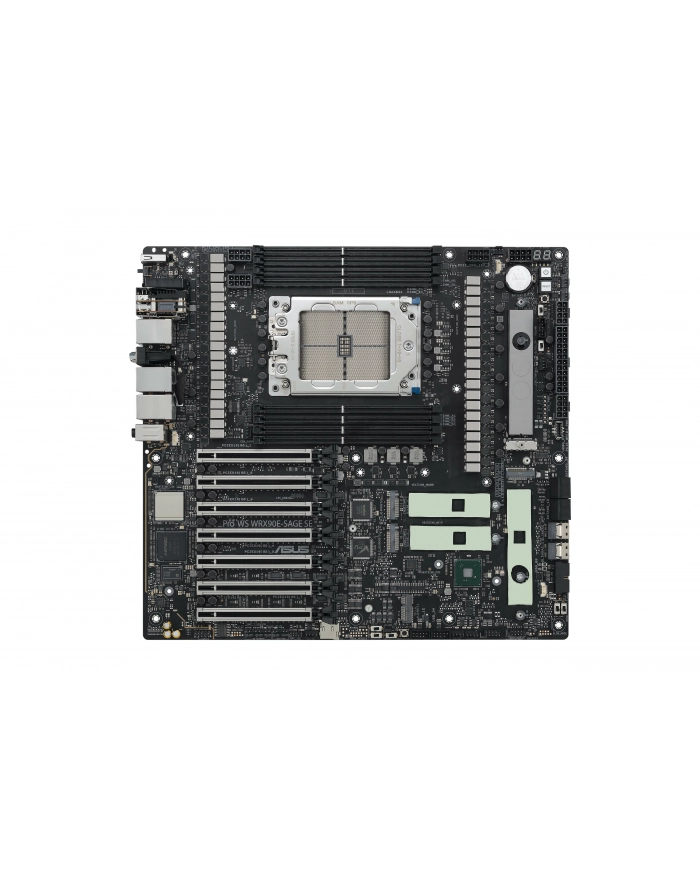

ASUS PRO WS WRX90E-SAGE SE AMD WRX90 Threadripper PRO, 2 x Intel X7100-AT2 dual 10Gb + 1x RTL8211F 1Gb/ USB 32 Gen2 x6, 7 x PCIe 50 x16, 4 x SATA 6Gb/s (RAID 0,1,5,10), 4 x M2 socket 3 Key M (2 x type 2242-22110, PCIe 50 + 2 x type 2242-2280, PCI

Format:EEB; Chipset:AMD WRX90; Socket:Socket TRX5; Motherboard memory module type:DDR5; RAID support:0, 1, 5, 10; PCI express 16x:7; COM portASUS Pro WS WRX90E-SAGE SEAMD sTR5 EEB workstation motherboard, 7 PCIe 5.0 x16 slots, multi-GPU support, robust 32+3+3+3 power-stage design, CPU and memory overclocking ready, 4 PCIe 5.0 M.2 slots, dual 10 Gb LAN, PCIe Q-Release SlimAMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors.Ultrafast connectivity: Seven PCIe 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4 40Gbps Type-C and SlimSAS NVMe support.CPU and memory overclocking: Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC).Robust power and thermal design: 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad.PCIe Q-release Slim: Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch.Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.CPUAMD Socket sTR5 for Ryzen™ Threadripper™ PRO 7000 WX-Series**Refer to www.asus.com for CPU support list.ChipsetAMD WRX90 ChipsetMemory8 x DIMM slots, DDR5, ECC Registered Memory*4 Channel Memory Architecture*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.Expansion SlotsAMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors*6 x PCIe 5.0 x16 slots1 x PCIe 5.0 x16 slot (x8 mode)*Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)**To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.StorageTotal supports 4 x M.2 slots, 2 x SlimSAS ports and 4 x SATA 6Gb/s ports*AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors*M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)AMD WRX90 Chipset2 x SlimSAS slots support PCIe 4.0 x4 mode NVMe device4 x SATA 6Gb/s ports* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.Ethernet1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600)1 x Intel dual 10Gb EthernetASUS LANGuardUSBRear USB (Total 9 ports)2 x USB 40Gbps (USB4) with ASMedia ASM4242 controller ports (2 x USB Type-C) 6 x USB 10Gbps ports (6 x Type-A)1 x USB 2.0 ports (2 x Type-A )Front USB (Total 7 ports)1 x USB 20Gbpsconnector (supports USB Type-C)1 x USB 5Gbps header supports 2 additional USB 5G ports2 x USB 2.0 headers support additional 4 USB 2.0 portsAudioRealtek ALC1220P Surround Sound High Definition Audio CODEC*- Impedance sense for front and rear headphone outputs- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)- Supports up to 32-Bit/192 kHz playbackAudio Features- Premium audio capacitors- Dedicated audio PCB layers- Unique de-pop circuit*A chassis with an HD audio module in the front panel is required to support 5.1 Surround Sound audio output.* This motherboard will only support up to 5.1 Surround Sound due to the number of audio ports available on the motherboard.Back Panel I/O Ports2 x USB 40Gbps (USB4) with ASMedia ASM4242 controller ports (2 x USB Type-C) 6 x USB 10Gbps ports (6 x Type-A)1 x USB 2.0 port (2 x Type-A)1 x VGA port2 x mini DisplayPort IN1 x Intel dual 10Gb Ethernet ports1 x Realtek 1Gb Ethernet port2 x Audio jacks1 x BIOS FlashBack™ button1 x Clear CMOS buttonInternal I/O ConnectorsFan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x W_PUMP+ header5 x 4-pin Chassis Fan headers2 x 4-pin VRM Fan header (with VRM FAN onboard)1 x 4-pin M.2 Fan header (with M.2 FAN onboard)Power related1 x 24-pin Main Power connectors2 x 8-pin +12V Power connectors2 x 8-pin PCIe to CPU power connectors2 x 8-pin PCIe Power connectorStorage related4 x M.2 slots (Key M)4 x SATA 6Gb/s ports2 x SlimSAS portUSB1 x USB 20Gbps connector supports USB Type-C1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous1 x Chassis intrusion header1 x COM port header1 x FlexKey button1 x Front panel audio header (F_AUDIO)1 x LN2 mode jumper1 x M.2 slot (Key E)7 x ProbeIt measurement points1 x ReTry button1 x RSVD switch1 x Slow mode switch1 x Safe boot button1 x SPI TPM header (14-1 pin)1 x Start button1 x 10-1 pin system panel header1 x Thermal sensor headerSpecial FeaturesASUS 5X PROTECTION III- DIGI+ VRM (- Digital power design with SPS)- ESD Guards- LANGuard- Overvoltage protection- SafeSlot- Stainless-steel back I/OASUS Q-Design- M.2 Q-Latch- Q-Release Slim (with PCIe SafeSlot)- Q-Code- Q-Connector- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink backplate and onboard thermal pads- M.2 heatsink- Steel backplate- VRM heatsink design with active fansASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- Clear CMOS button- ProCool II- Pre-mounted I/O shield- SafeSlot- SafeDIMMBespoke Motherboard Design & Business Focused Features- 24/7 Reliability- Overcurrent ProtectionBMC Related1 x BMC switch1 x BMC LAN fixed IP switch1 x IPMI switch1 x Message LED header1 x microSD card socket2 x LAN LED headers1 x Location LED header1 x Location button header1 x PSU_SMB header1 x SMART_PSU switch1 x VGA switch1 x VGA header (Dedicated Management for AST2600)1 x VPP_I2C headerSoftware FeaturesASUS Exclusive SoftwareArmoury Crate- Fan Xpert 4ASUS CPU-ZAdobe Creative Cloud (Free Trial)Norton 360 for Deluxe (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUSTeK. EzFlash UtilityFlexKeyIT Management software supported- ASUS Control Center Express(ACCE)BIOS256 Mb Flash ROM, UEFI AMI BIOS(text-based)ManageabilityWOL by PME, PXEAccessoriesCables2 x PCIe 8-pin to CPU power cables1 x 24-pin power cable (Y cable)2 x Mini DisplayPort cables4 x SATA 6Gb/s cables1 x Thermistor cable packMiscellaneous1 x Q-connector1 x M.2 Q-Latch package1 x AMI license sticker4 x M.2 rubber packages1 x Screw package for M.2 Key EDocumentation1 x ACC Express Activation Key Card1 x Quick start guideOperating SystemWindows 11Windows 10 64-bitForm FactorEEB Form Factor(30.5 cm x 33 cm)

ASUS PRO WS WRX90E-SAGE SE jest oparty na chipsecie AMD TRX50 i obsługuje procesory AMD dla gniazda AM4. Posiada cztery gniazda DDR5. ASUS PRO WS WRX90E-SAGE SE jest również wyposażony w siedem gniazd PCIe 5.0 x16 (jedno z liniami x8). ASUS PRO WS WRX90E-SAGE SE ma również 8-kanałowy dźwięk, 10 Gigabit LAN, 2,5 Gigabit interfejs LAN, cztery porty SATA3, trzy porty M.2, Wi-Fi 7, Bluetooth 5.4 i całą gamę interfejsów USB. .: 100042953


Typ płyty głównej
EAN 4711387441145
Nr producenta 90MB1FW0-M0EAY0
Gniazdo sTR5
Maksymalna liczba obsługiwanych procesorów 1
Obsługiwane modele procesorów [Ryzen Threadripper 79xxX, Ryzen Threadripper PRO 79xxWX] Procesory Ryzen™ Threadripper™ PRO 7000 WX-Series i Ryzen™ Threadripper™ 7000 Series
Chipset AMD TRX50
Sloty PCIe x16 7x (w tym: 6x PCIe x16, 1x PCIe x8)
BIOS 256Mb Flash ROM, UEFI AMI BIOS
Współczynnik kształtu SSI-CEB
Użyj komputera
Ilość pamięci w gniazdach 8x DDR5
ASMedia ASM4242
Porty (zewnętrzne) USB-A 3.2 Gen 2 (10 Gbit/s) 6
Złącza (wewnętrzne) SATA 4
Porty (opcjonalne) USB 3.2 Gen 1 (5 Gbit/s) 2
Kontroler SATA AMD TRX50
Kontroler USB AMD TRX50
Dźwięk Realtek ALC1220P Dźwięk przestrzenny Kodek audio wysokiej rozdzielczości
LAN Podwójny Ethernet Intel® 10 Gb
Funkcje specjalne Realtek 1Gb Ethernet (Dedykowana sieć LAN do zarządzania dla AST2600)
Cechy zasilania: 1x 24-pin, 2x 8-pin +12V, 2x 8-pin PCIe do procesora, 2x 8-pin PCIe
Dalsze informacje W celu obsługi najnowszych rdzeni procesorów może być wymagana aktualizacja BIOS-u.

ASUS PRO WS WRX90E-SAGE SE jest oparty na chipsecie AMD TRX50 i obsługuje procesory AMD dla gniazda AM4. Posiada cztery gniazda DDR5. ASUS PRO WS WRX90E-SAGE SE jest również wyposażony w siedem gniazd PCIe 5.0 x16 (jedno z liniami x8). ASUS PRO WS WRX90E-SAGE SE ma również 8-kanałowy dźwięk, 10 Gigabit LAN, 2,5 Gigabit interfejs LAN, cztery porty SATA3, trzy porty M.2, Wi-Fi 7, Bluetooth 5.4 i całą gamę interfejsów USB. .: 100042953


Typ płyty głównej
EAN 4711387441145
Nr producenta 90MB1FW0-M0EAY0
Gniazdo sTR5
Maksymalna liczba obsługiwanych procesorów 1
Obsługiwane modele procesorów [Ryzen Threadripper 79xxX, Ryzen Threadripper PRO 79xxWX] Procesory Ryzen™ Threadripper™ PRO 7000 WX-Series i Ryzen™ Threadripper™ 7000 Series
Chipset AMD TRX50
Sloty PCIe x16 7x (w tym: 6x PCIe x16, 1x PCIe x8)
BIOS 256Mb Flash ROM, UEFI AMI BIOS
Współczynnik kształtu SSI-CEB
Użyj komputera
Ilość pamięci w gniazdach 8x DDR5
ASMedia ASM4242
Porty (zewnętrzne) USB-A 3.2 Gen 2 (10 Gbit/s) 6
Złącza (wewnętrzne) SATA 4
Porty (opcjonalne) USB 3.2 Gen 1 (5 Gbit/s) 2
Kontroler SATA AMD TRX50
Kontroler USB AMD TRX50
Dźwięk Realtek ALC1220P Dźwięk przestrzenny Kodek audio wysokiej rozdzielczości
LAN Podwójny Ethernet Intel® 10 Gb
Funkcje specjalne Realtek 1Gb Ethernet (Dedykowana sieć LAN do zarządzania dla AST2600)
Cechy zasilania: 1x 24-pin, 2x 8-pin +12V, 2x 8-pin PCIe do procesora, 2x 8-pin PCIe
Dalsze informacje W celu obsługi najnowszych rdzeni procesorów może być wymagana aktualizacja BIOS-u.

ASUS PRO WS WRX90E-SAGE SE. Producent procesora: AMD, Gniazdo procesora: Socket sTR5. Obsługiwane rodzaje pamięci: DDR5-SDRAM, Typ slotów pamięci: DIMM, Obsługa kanałów pamięci: Ośmiokanałowy. Wspierane interfejsy dysków twardych: M.2, SATA III, SlimSAS, Obsługiwane rodzaje dysków: HDD & SSD, Poziomy raid: 0, 1, 5, 10. Obsługiwany typ USB: USB Typu-A, USB Type-C. Rodzaj interfejsu sieci Ethernet: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
