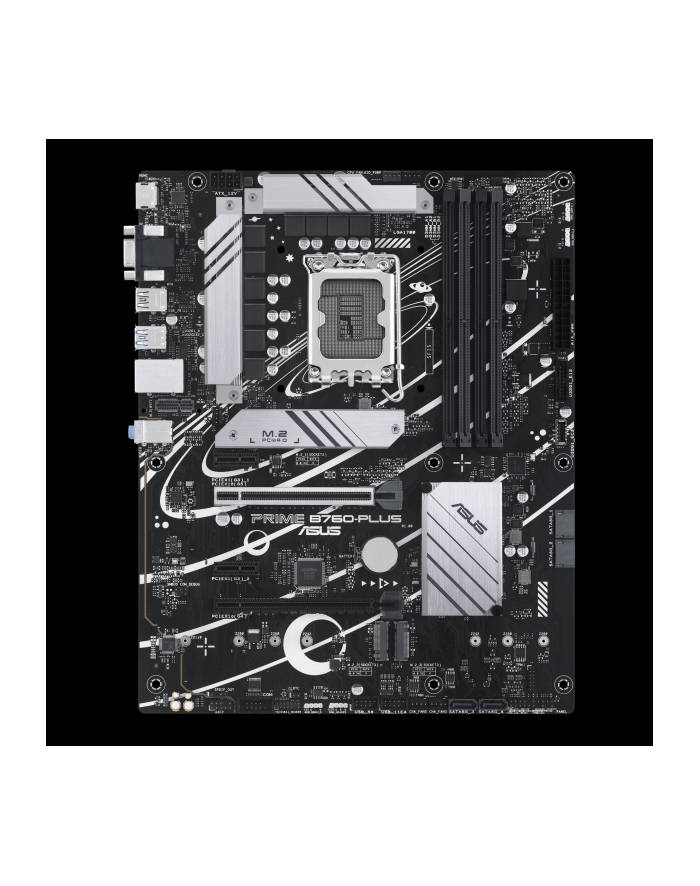

ASUS PRIME B760-PLUS LGA1700 B760 USB 3.2 GEN 2X2 AURA MB

Format:ATX; Chipset:Intel B760; Socket:Socket 1700; Motherboard memory module type:DDR5; RAID support:0, 1, 5, 10; PCI express 16x:2; COM portPRIME B760-PLUSASUS Prime B760-PLUS, an Intel B760 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI™, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C, front USB 3.2 Gen 1 Type-C, Thunderbolt™ (USB4) support, Aura SyncIntel LGA 1700 Socket: Ready for 14th and 13th and 12th Gen Intel processorsUltrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front USB 3.2 Gen 1 Type-C and Thunderbolt™ (USB4) header supportComprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem IIAura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardwareSupports 14th Gen Intel Core™ ProcessorsSpecial FeaturesASUS 5X PROTECTION III- DIGI+ VRM- LANGuard- Overvoltage Protection- SafeSlot Core+- Stainless-Steel Back I/OASUS Q-Design- Q-DIMM- Q-LED Core- Q-SlotASUS Thermal Solution- M.2 heatsink- VRM heatsink designASUS EZ DIY- ProCoolAura Sync- Aura RGB header- Addressable Gen 2 headersCPUIntel Socket LGA1700 for 14th Gen Intel Core™ & 13th Gen Intel Core™ & 12th Gen Intel Core™, Pentium Gold and Celeron Processors*Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*** Refer to www.asus.com for CPU support list.** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.ChipsetIntel B760 ChipsetMemory4 x DIMM, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel Extreme Memory Profile (XMP)OptiMem II* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/.* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.Graphics1 x DisplayPort**1 x VGA port1 x HDMI™ port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.** Supports max. 4K@60Hz as specified in DisplayPort 1.4.*** Supports 4K@60Hz as specified in HDMI™ 2.1.Expansion SlotsIntel 14th & 13th & 12th Gen Processors1 x PCIe 5.0 x16 slotIntel B760 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)2 x PCIe 3.0 x1 slotsNote: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.StorageTotal supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*Intel 14th & 13th & 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)Intel B760 ChipsetM.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)4 x SATA 6Gb/s ports* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.Ethernet1 x Realtek 2.5Gb EthernetWireless & BluetoothVertical M.2 slot only (Key E, CNVi & PCIe)** Wi-Fi module is sold separately.USBRear USB (Total 6 ports)1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)2 x USB 3.2 Gen 2 ports (2 x Type-A)1 x USB 3.2 Gen 1 port (1 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB (Total 10 ports)1 x USB 3.2 Gen 1 connector (supports USB Type-C)1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 portsAudioRealtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.Internal I/O ConnectorsFan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin AIO Pump header3 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related3 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 connector (supports USB Type-C )1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Aura RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x S/PDIF Out header1 x SPI TPM header (14-1pin)1 x 20-3 pin System Panel header with Chassis intrude function1 x Thunderbolt™ (USB4) headerBack Panel I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)2 x USB 3.2 Gen 2 ports (2 x Type-A)1 x USB 3.2 Gen 1 port (1 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x VGA port1 x HDMI™ port1 x Vertical M.2 slot (Key E)1 x Realtek 2.5Gb Ethernet port3 x Audio jacksSoftware FeaturesASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- Fan Xpert 2+- Power SavingAI Suite 3- DIGI+ VRM- PC CleanerASUS CPU-ZNorton 360 Deluxe (60 Days Free Trial)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ ModeBIOS128 Mb Flash ROM, UEFI AMI BIOSManageabilityWOL by PME, PXEForm FactorATX Form Factor 30.5 cm x 24.4 cm OSWindows 11, Windows 10 64-bitAccessoriesCables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x M.2 Rubber Package2 x Screw Packages for M.2 SSDDocumentation1 x User guide
