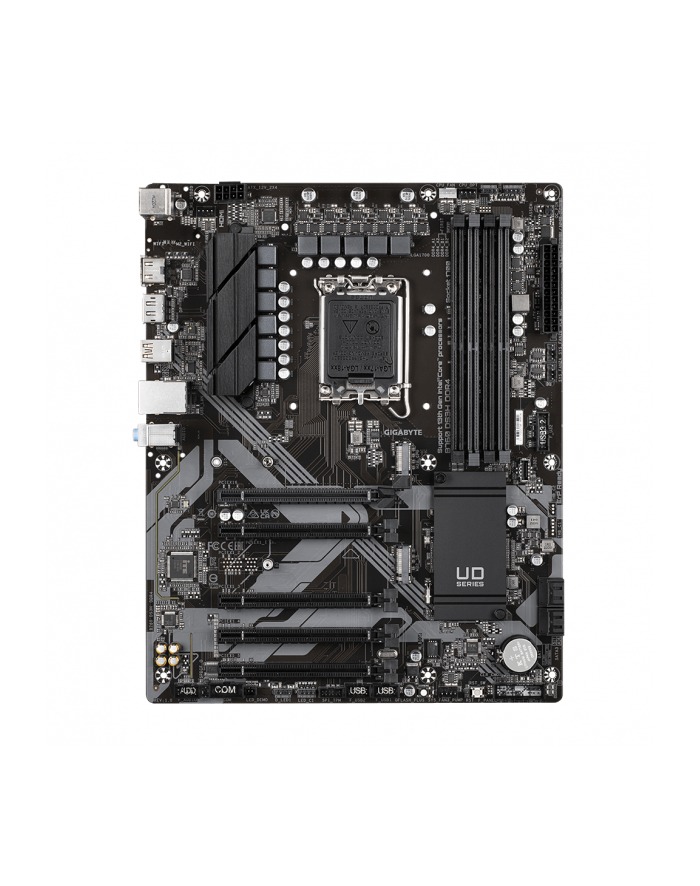

Płyta główna Gigabyte B760 DS3H DDR4

Format:ATX; Chipset:Intel B760; Socket:Socket 1700; Motherboard memory module type:DDR4; RAID support:0, 1, 5, 10; PCI express 16x:5B760 DS3H DDR4Supports Intel Core™ 14th/ 13th /12th processorsUnparalleled Performance:Hybrid 8+2+1 Phases Digital VRM SolutionDual Channel DDR4:4*DIMMs XMP Memory Module SupportNext Generation Storage:2*PCIe 4.0 x4 M.2 ConnectorsEZ-Latch:PCIe 4.0x16 Slot with Quick Release DesignFast Networks:GbE LANExtended Connectivity:Rear USB-C 20Gb/s, DP, HDMISmart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOPQ-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card CPULGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core™, Pentium Gold and Celeron ProcessorsL3 cache varies with CPU(Please refer qqq1qqq1CPU Support Listqqq1qqq1 for more information.)ChipsetIntel B760 Express ChipsetMemorySupport for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Please refer qqq1qqq1Memory Support Listqqq1qqq1 for more information.)Onboard GraphicsIntegrated Graphics Processor-Intel HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz* Support for DisplayPort 1.2 version and HDCP 2.3(Graphics specifications may vary depending on CPU support.)AudioRealtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF OutLANRealtek GbE LAN chip (1 Gbps/100 Mbps)Expansion SlotsCPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_3~PCIEX1_5)Storage InterfaceCPU:1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devicesUSBChipset:1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header1 x USB 3.2 Gen 2 Type-A port (red) on the back panel2 x USB 3.2 Gen 1 ports available through the internal USB header4 x USB 2.0/1.1 ports on the back panelChipset+2 USB 2.0 Hubs:4 x USB 2.0/1.1 ports available through the internal USB headersInternal I/O Connectors1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x CPU fan/water cooling pump header3 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers2 x RGB LED strip headers2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB Type-C header, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header1 x Q-Flash Plus button1 x reset button1 x reset jumper1 x Clear CMOS jumperBack Panel Connectors1 x PS/2 keyboard/mouse port1 x USB Type-C port, with USB 3.2 Gen 2x2 support1 x USB 3.2 Gen 2 Type-A port (red)4 x USB 2.0/1.1 ports1 x HDMI port1 x DisplayPort1 x RJ-45 port3 x audio jacksI/O ControlleriTE I/O Controller ChipH/W MonitoringVoltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.BIOS1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique FeaturesSupport for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusBundled SoftwareNorton Internet Security (OEM version)LAN bandwidth management softwareOperating SystemSupport for Windows 11 64-bitSupport for Windows 10 64-bitForm FactorATX Form Factor; 30.5cm x 24.4cm

Gigabyte B760 DS3H DDR4. Producent procesora: Intel, Gniazdo procesora: LGA 1700, Procesor: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Obsługiwane rodzaje pamięci: DDR4-SDRAM, Maksymalna pojemność pamięci: 128 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2, PCI Express 4.0, SATA III, Obsługiwane rodzaje dysków: HDD & SSD, Poziomy raid: 0, 1, 5, 10. Maks. rozdzielczość: 4096 x 2304 px. Obsługiwany typ USB: USB Typu-A, USB Type-C
