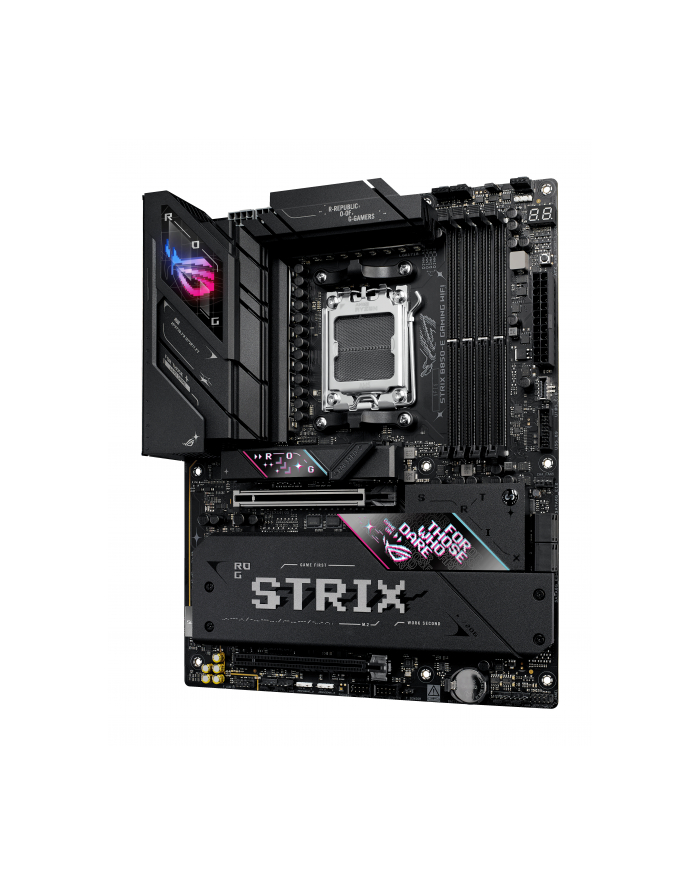

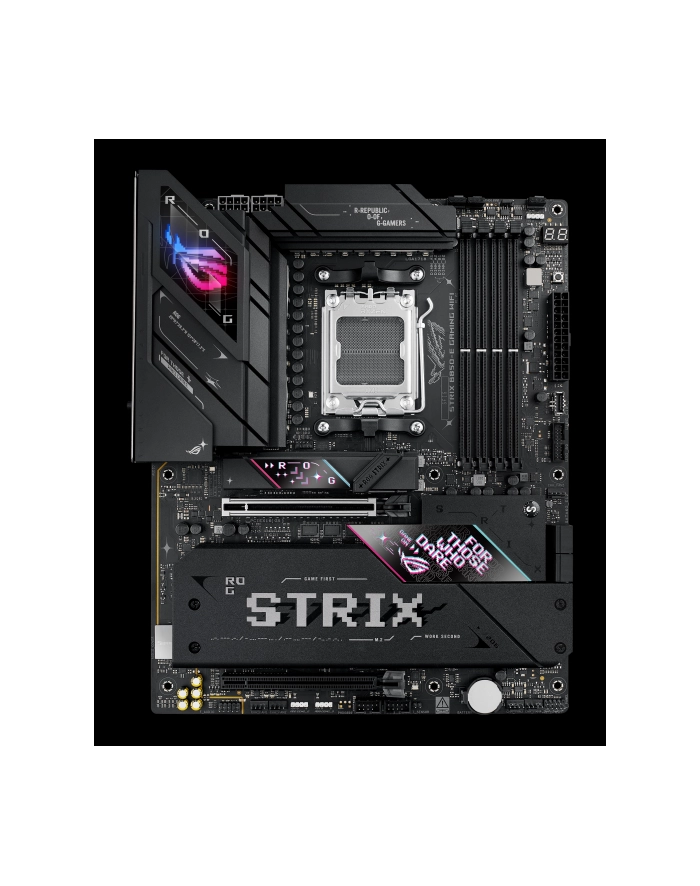

Płyta główna ASUS ROG STRIX B850-E GAMING WIFI

Format:ATX; Chipset:AMD B850; Socket:Socket AM5 (LGA 1718); Motherboard memory module type:DDR5; RAID support:0, 1, 5, 10; PCI express 16x:2ASUS ROG STRIX B850-E GAMING WIFIThe ROG Strix B850-E Gaming WiFi is engineered to harness the full potential of AMD Ryzen™ 9000 Series processors. Featuring PCIe 5.0 support, AI Overclocking, AI Networking II, and AEMP, setup is streamlined while performance is maximized. One USB4 Type-C port and WiFi 7 with Realtek 5Gb Ethernet ensure top-tier connectivity, while robust heatsinks keep M.2 drives cool under heavy loads. This motherboard not only meets the demands of gaming and professional applications but also delivers the power and connectivity essential for advanced AI PC applications.CPUAMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors** Refer to https://www.asus.com/support/download-center/ for CPU support list.ChipsetAMD B850 ChipsetMemory4 x DIMM slots, max. 192GB, DDR5Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM*Dual channel memory architectureSupports AMD Extended Profiles for Overclocking (EXPO™)ASUS Enhanced Memory Profile (AEMP)* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.**Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.Graphics1 x DisplayPort*1 x HDMI™ port**1 x USB4 (40Gbps) port supports USB Type-C display outputs***- Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.* Supports max. 8K@30Hz as specified in DisplayPort 1.4** Supports 4K@60Hz as specified in HDMI 2.1*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a***** VGA resolution support depends on processorsqqq1 or graphic cardsqqq1 resolution.Expansion SlotsAMD Ryzen™ 9000 & 7000 Series Desktop Processors*1 x PCIe 5.0 x16 slot with Q-Release Slim (supports x16 or x8 modes)**AMD Ryzen™ 8000 Series Desktop Processors1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8 or x4 mode)***AMD B850 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)***** Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).** When either M.2_2 or M.2_3 is enabled, PCIEX16(G5) will run x8.*** Specifications vary by CPU types.**** M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled.- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.StorageTotal supports 5 x M.2 slots and 4 x SATA 6Gb/s portsAMD Ryzen™ 9000 & 7000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)*M.2_3 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)*AMD Ryzen™ 8000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 4.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)**M.2_3 slot (Key M), type 2280 (Not supports)***AMD B850 ChipsetM.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports* When either M.2_2 or M.2_3 slot is operating, PCIEX16_1 will run x8.** M.2_2 and M.2_3 slot will be disabled while using the AMD Ryzen™ 8000 Series Desktop Processors.*** M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled.AMD RAIDXpert2 TechnologyRyzen™ 9000 Series Processors: RAID 0/1/5/10Ryzen™ 8000 Series Processors: RAID 0/1Ryzen™ 7000 Series Processors: RAID 0/1/10Ethernet1 x Realtek 5Gb EthernetASUS LANGuardWireless & BluetoothWi-Fi 7*2x2 Wi-Fi 7 (802.11be)Supports 2.4/5/6GHz frequency band**Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.Bluetooth v5.4****Wi-Fi features may vary depending on the operating systemFor Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendorqqq1s website for details.** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturerqqq1s website for the latest specifications.USBRear USB (Total 12 ports)1 x USB4 (40Gbps) port(1 x USB Type-C)*1 x USB 20Gbps port (supports USB Type-C with up to 30W PD/PPS Fast-charge)**6 x USB 10Gbps ports (6 x Type-A)4 x USB 2.0 ports (4 x Type-A)Front USB (Total 7 ports)1 x USB 10Gbps connector (1 x USB Type-C)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports* USB Type-C power delivery output: max. 5V/3A** USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0AAudioROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*- Impedance sense for front and rear headphone outputs- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input- Supports up to 32-Bit/384 kHz playback on front panelAudio Features- SupremeFX Shielding Technology- Savitech SV3H712 AMP- Gold-plated audio jacks- Rear optical S/PDIF out port- Premium audio capacitors- Audio cover* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.Back Panel I/O Ports1 x USB4 (40Gbps)(1 x USB Type-C)1 x USB 20Gbps port (supports USB Type-C with up to 30W PD/PPS Fast-charge)6 x USB 10Gbps ports (6 x Type-A)4 x USB 2.0 ports (4 x Type-A)1 x DisplayPort1 x HDMI™ port1 x Wi-Fi module1 x Realtek 5Gb Ethernet port2 x Gold-plated audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack™ button1 x Clear CMOS button Internal I/O ConnectorsFan and Cooling Related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header5 x 4-pin Chassis Fan headersPower Related1 x 24-pin Main Power connector2 x 8-pin +12V CPU Power connectorStorage Related5 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 10Gbps connector (supports USB Type-C )1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 header(s)1 x CPU Over voltage jumper1 x Front Panel Audio header (F_AUDIO)1 x Power button1 x 10-1 pin Front System Panel header1 x Thermal Sensor headerSpecial FeaturesExtreme Engine Digi+- 5K Black metallic capacitorsASUS Q-Design- M.2 Q-Latch- M.2 Q-Release- M.2 Q-Slide- PCIe Slot Q-Release Slim (with PCIe SafeSlot)- Q-Antenna- Q-Code- Q-Dashboard- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink backplate- M.2 heatsinkASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- Clear CMOS button- ProCool- Pre-mounted I/O shield- SafeSlot- SafeDIMMAura Sync- Addressable Gen 2 header(s)Rear USB 20Gbps with PD Fast Charge Support- Support: up to 30W fast charging and USB Wattage Watcher- Output: 5V/9V max. 3A, 12V max 2.5A, 15V max2.0A- Compatible with PD3.0Software FeaturesROG Exclusive Software- ROG CPU-Z- Dolby AtmosASUS Exclusive SoftwareArmoury Crate- AIDA64 Extreme (60 days free trial)- Aura Creator- Aura Sync- GameFirst- Fan Xpert 4- HWiNFO- Power SavingASUS DriverHubASUS GlideXUSB Wattage WatcherTurboV CoreAdobe Creative Cloud (Free Trial)Norton 360 for Gamers (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSAI Overclocking GuideASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode- ASUS MyHotkeyDynamic OC SwitcherCore FlexBIOS256 Mb Flash ROM, UEFI AMI BIOSManageabilityWOL by PME, PXEAccessoriesCables2 x SATA 6Gb/s cablesAdditional Cooling Kit1 x Thermal pad for M.2 22110Miscellaneous1 x ASUS WiFi Q-Antenna1 x Cable ties package1 x M.2 Q-Slide package1 x ROG key chain1 x ROG Strix stickers5 x M.2 rubbersDocumentation1 x Quick start guideOperating SystemWindows 11Form FactorATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

ASUS ROG STRIX B850-E GAMING WIFI. Producent procesora: AMD, Gniazdo procesora: Gniazdo AM5, Procesor: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Obsługiwane rodzaje pamięci: DDR5-SDRAM, Maksymalna pojemność pamięci: 192 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2, SATA III, Obsługiwane rodzaje dysków: HDD & SSD, Poziomy raid: 0, 1, 5, 10. Maks. rozdzielczość: 7680 x 4320 px. Rodzaj interfejsu sieci Ethernet: 5 Gigabit Ethernet, Podstawowy standard Wi-Fi: Wi-Fi 7 (802.11be), Standardy Wi- Fi: Wi-Fi 7 (802.11be)
