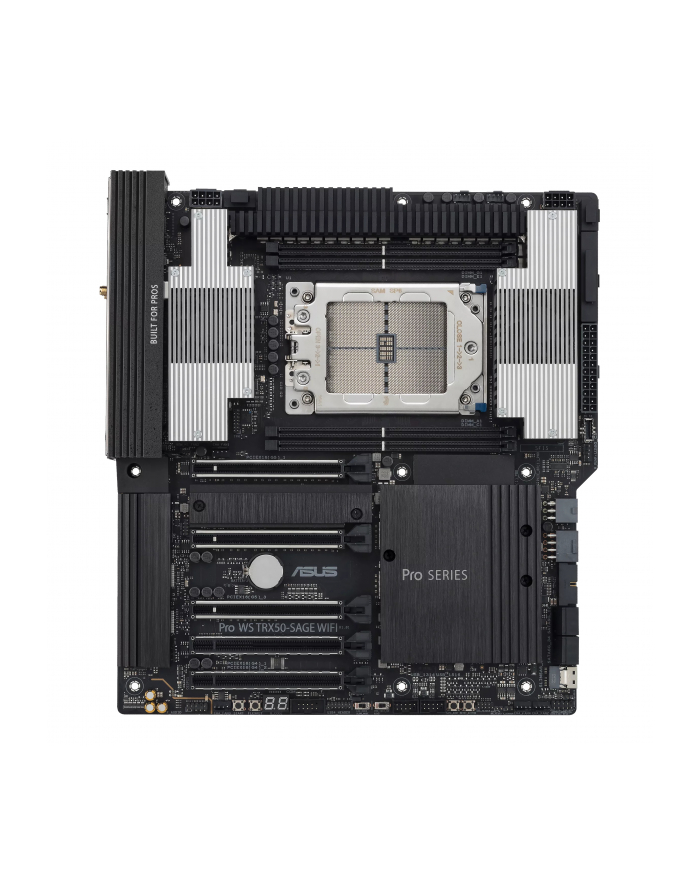

Płyta ASUS PRO WS TRX50-SAGE WIFI 90MB1FZ0-M0EAY0

Format:CEB; Chipset:AMD TRX50; Socket:Socket TRX5; Motherboard memory module type:DDR5; RAID support:0, 1, 5, 10; PCI express 16x:5; COM portASUS Pro WS TRX50-SAGE WiFiAMD TRX50 CEB workstation motherboard, CPU and memory overclocking ready, robust 36 power-stage design, PCIe 5.0 x 16, PCIe 5.0 M.2, 10 Gb and 2.5 Gb LAN, multi-GPU supportAMD socket sTR5 supports up to 96-core CPUs: Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors and AMD Ryzen Threadripper 7000 Series Processors.CPU and memory overclocking: Support for up to 1TB ECC R-DIMM DDR5 memory modules (1DPC)Robust power and thermal design: 36 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks, and M.2 thermal pad.Ultrafast connectivity: three PCIe 5.0 x16 slots, 10 Gb & 2.5 Gb LAN ports, three M.2 slots, front and rear USB 20Gbps Type-C and SlimSAS NVMe support.Server-grade IPMI remote management: hardware and software support for ASUS IPMI expansion cards, plus ASUS Control Center Express software for real-time monitoring and managementTrusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operationCPUAMD Socket sTR5 for RYZEN™ Threadripper™ PRO 7000 WX-Series and RYZEN™ Threadripper™ 7000 Series Processors ** Refer to www.asus.com for CPU support list.ChipsetAMD TRX50 ChipsetMemory4 x DIMM slots, DDR5, ECC Registered Memory*4 Channel Memory Architecture* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.Expansion SlotsAMD RYZEN™ Threadripper™ PRO 7000 WX-Series and RYZEN™ Threadripper™ 7000 Series Processors2 x PCIe 5.0 x16 slots1 x PCIe 5.0 x16 slot(x8 mode)1 x PCIe 4.0 x16 slot1 x PCIe 4.0 x16 slot(x4 mode)* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)StorageTotal supports 3 x M.2 slots, 4 x SATA 6Gb/s ports AMD RYZEN™ Threadripper™ PRO 7000 WX-Series and RYZEN™ Threadripper™ 7000 Series ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)AMD TRX50 ChipsetM.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports1 x SlimSAS slot supports PCIe 4.0 x4 mode NVMe device* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.LAN1 x Marvell AQtion 10Gb Ethernet 1 x Intel I226-LM 2.5Gb EthernetWiFi & Bluetooth---Místo pro Wifi a BT---USBRear USB (Total 9 ports)1 x USB 20Gbps port (1 x USB Type-C)6 x USB 10Gbps ports (6 x Type-A )2 x USB 2.0 ports (2 x Type-A )Front USB (Total 7 ports)1 x USB 20Gbps connector (supports USB Type-C with up to 27W PD/QC4+)1 x USB 5Gbps header supports 2 additional USB 5G ports2 x USB 2.0 headers support additional 4 USB 2.0 portsAudioqqq1qqq1Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*- Impedance sense for front and rear headphone outputs- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)- Supports up to 32-Bit/192 kHz playback*qqq1qqq1Audio Features - Audio Shielding- Rear optical S/PDIF out port- Dedicated audio PCB layers- Unique de-pop circuit* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports1 x USB 20Gbps port (1 x USB Type-C)6 x USB 10Gbps ports (6 x Type-A) 2 x USB 2.0 port (2 x Type-A) 1 x Wi-Fi Module1 x Marvell AQtion 10Gb Ethernet port1 x Intel 2.5Gb Ethernet port2 x Audio jacks 1 x Optical S/PDIF out port1 x BIOS FlashBack™  button 1 x Clear CMOS button Internal I/O PortsFan and Cooling related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x W_PUMP+ header4 x 4-pin Chassis Fan headers2 x 4-pin VRM Fan header (with VRM FAN onboard)Power related 2 x 24-pin Main Power connectors2 x 8-pin +12V Power connectors2 x 8-pin PCIe to CPU power connectors1 x 6-pin PCIe Power connector 1 x 8-pin PCIe Power connectorStorage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports1 x SlimSAS portUSB 1 x USB 20Gbps connector supports USB Type-C 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous1 x BMC header1 x COM Port header1 x USB4 header1 x FlexKey button 1 x Front panel audio header (F_AUDIO) 1 x Start button1 x Safe boot button1 x ReTry button1 x LN2 mode jumper 1 x Slow mode switch 1 x SPI TPM header (14-1pin)1 x 10-1 pin system panel header1 x Chassis intrusion header1 x Thermal Sensor headerSpecial FeaturesASUS Q-Design - Q-Code- M.2 Q-Latch- Q-Connector- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink and onboard thermal pads- VRM heatsink design with active fansASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- Clear CMOS button- ProCool II- Pre-mounted I/O shield- SafeSlot- SafeDIMMBespoke Motherboard Design & Business Focused Features- 24/7 Reliability- Overcurrent Protection Software FeaturesASUS Exclusive SoftwareArmoury Crate- Fan Xpert 4ASUS CPU-ZIT Management software supported- ASUS Control Center Express(ACCE)Adobe Creative Cloud (Free Trial)Norton 360 Deluxe (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUSTeK. EzFlash UtilityFlexKeyBIOS256 Mb Flash ROM, UEFI AMI BIOSManageabilityWOL by PME, PXE (UEFI mode)AccessoriesCables2 x SATA 6Gb/s cables 1 x CPU 8-pin to PCIe 8-pin adapter cable package1 x Thermistor cable packMiscellaneous1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas 1 x M.2 Q-Latch package(2 in 1)2 x M.2 Rubber Packages1 x Q-connectorDocumentation1 x ACC Express Activation Key Card1 x QSGOperating Systemqqq1qqq1Windows 11Windows 10 64-bit qqq1qqq1Form FactorCEB Form Factor12 inch x 11 inch (30.5 cm x 28.0 cm)

Das ASUS PRO WS TRX50-SAGE WIFI basiert auf dem AMD-TRX50-Chipsatz und unterstützt AMD-Prozessoren für den Sockel sTR5. Es verfügt über vier DDR5-Slots für bis zu 1024 GB Arbeitsspeicher. Zur weiteren Ausstattung des ASUS PRO WS TRX50-SAGE WIFI gehören drei PCIe-5.0-x16-Slots (von einer mit (x8 Lanes), ein PCIe-4.0-x16-Slot und ein PCIe-4.0-x16-Slot (x4 Lanes). Außerdem verfügt das ASUS PRO WS TRX50-SAGE WIFI über 8-Kanal-Sound, eine 10 Gigabit-LAN, eine 2.5 Gigabit-LAN-Schnittstelle, vier SATA3-Anschlüsse, drei M.2-Anschlüsse, WiFi 7, Bluetooth 5.4 und eine Reihe an USB Schnittstellen.

Das ASUS PRO WS TRX50-SAGE WIFI basiert auf dem AMD-TRX50-Chipsatz und unterstützt AMD-Prozessoren für den Sockel sTR5. Es verfügt über vier DDR5-Slots für bis zu 1024 GB Arbeitsspeicher. Zur weiteren Ausstattung des ASUS PRO WS TRX50-SAGE WIFI gehören drei PCIe-5.0-x16-Slots (von einer mit (x8 Lanes), ein PCIe-4.0-x16-Slot und ein PCIe-4.0-x16-Slot (x4 Lanes). Außerdem verfügt das ASUS PRO WS TRX50-SAGE WIFI über 8-Kanal-Sound, eine 10 Gigabit-LAN, eine 2.5 Gigabit-LAN-Schnittstelle, vier SATA3-Anschlüsse, drei M.2-Anschlüsse, WiFi 7, Bluetooth 5.4 und eine Reihe an USB Schnittstellen.

ASUS Pro WS TRX50-SAGE WIFI. Producent procesora: AMD, Gniazdo procesora: Socket sTR5, Procesor: AMD Ryzen™ Threadripper™. Obsługiwane rodzaje pamięci: DDR5-SDRAM, Typ slotów pamięci: DIMM, Obsługa kanałów pamięci: Czterokanałowy. Wspierane interfejsy dysków twardych: M.2, SATA III, Obsługiwane rodzaje dysków: HDD & SSD, Poziomy raid: 0, 1, 5, 10. Obsługiwany typ USB: USB Typu-A, USB Type-C. Rodzaj interfejsu sieci Ethernet: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Kontroler LAN: Intel I226-LM, Podstawowy standard Wi-Fi: Wi-Fi 7 (802.11be)

ASUS Pro WS TRX50-SAGE WIFI. Producent procesora: AMD, Gniazdo procesora: Socket sTR5, Procesor: AMD Ryzen Threadripper 1000 Series. Obsługiwane rodzaje pamięci: DDR5-SDRAM, Maksymalna pojemność pamięci: 1 TB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2, SATA III, Obsługiwane rodzaje dysków: HDD & SSD, Poziomy raid: 0, 1, 5, 10. Obsługiwany typ USB: USB Typu-A, USB Type-C. Rodzaj interfejsu sieci Ethernet: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Kontroler LAN: Intel I226-LM, Podstawowy standard Wi-Fi: Wi-Fi 7 (802.11be)
