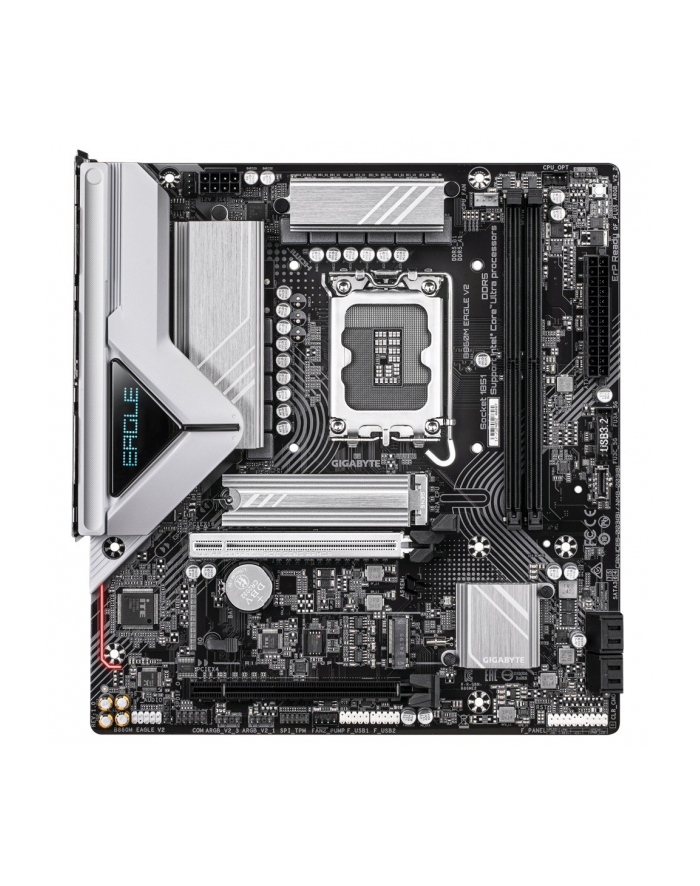

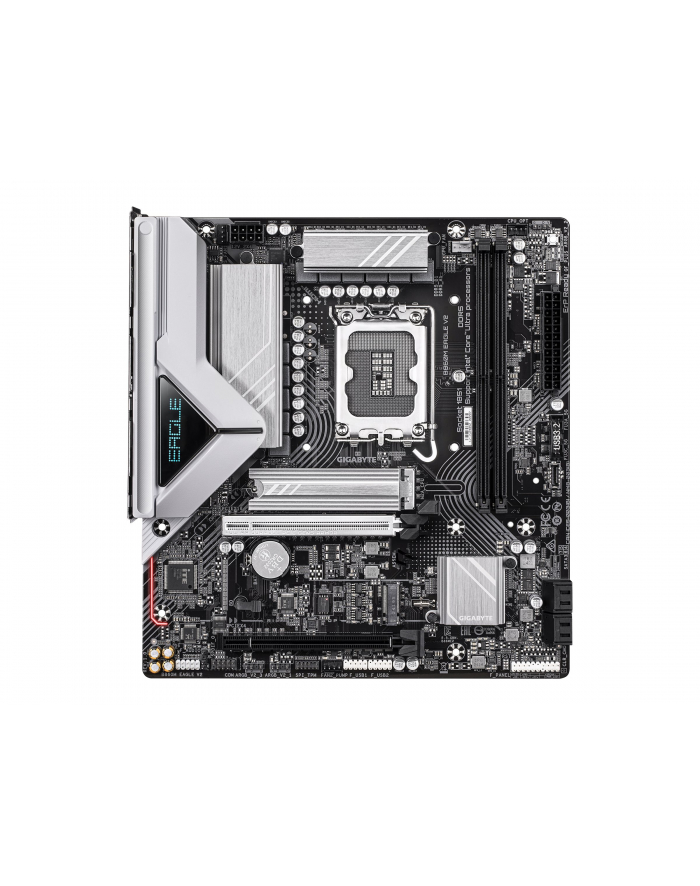

gigabyte Płyta główna B860M EAGLE v2 s1851 2DDR5 HDMI/DP mATX

Format:micro ATX; Chipset:Intel B860; Socket:Socket 1851; Motherboard memory module type:DDR5; RAID support:0, 1, 5, 10; PCI express 16x:2GIGABYTE B860M EAGLE V2 Supports Intel Core™ Ultra processors (Series 2) Digital 6+1+2 phases VRM solution Dual Channel DDR5: 2*DIMMs with XMP Memory Module Support D5 Bionic Corsa for Infinite Memory Performance AI Perfdrive: Provides optimal and customized BIOS preset profile for users EZ-Latch: PCIe and M.2 slots with Quick Release & Screwless Design EZ-Latch Click: M.2 heatsinks with screwless design Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW Ultra-Fast Storage: 2*M.2 slots, including 1* PCIe 5.0 x4 Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard Fast Networking: 2.5GbE LAN Extended Connectivity: HDMI, DisplayPortCPULGA1851 socket: Support for Intel Core™ Ultra Processors(Go to GIGABYTEqqq1s website for the latest CPU support list.)L3 cache varies with CPUChipsetIntel B860 Express ChipsetMemorySupport for DDR5 9066(O.C)/8800(O.C)/8600(O.C)/8400(O.C)/8266(O.C)/8200(O.C)/8000(O.C)/7950(O.C)/7900(O.C)/7800(O.C)/7600(O.C)/7400(O.C)/7200(O.C)/7000(O.C)/6800(O.C)/6600(O.C)/6400/5600 MT/s memory modules2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to qqq1qqq1Memory Support Listqqq1qqq1 on GIGABYTEqqq1s website for more information.)Onboard GraphicsIntegrated Graphics Processor-Intel HD Graphics support1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz* Support for DisplayPort 2.1 version.(Graphics specifications may vary depending on CPU support.)AudioRealtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF OutLANRealtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)Expansion SlotsCPU:1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)Storage InterfaceCPU:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)Chipset:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devicesUSBChipset:1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)3 x USB 2.0/1.1 ports on the back panelChipset + USB 2.0 Hub:4 x USB 2.0/1.1 ports available through the internal USB headersInternal I/O Connectors1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x CPU fan/water cooling pump header1 x system fan header1 x system fan/water cooling pump header3 x addressable RGB Gen2 LED strip headers2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB Type-C header, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)1 x serial port header1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumperBack Panel Connectors1 x PS/2 keyboard/mouse port1 x HDMI port*1 x DisplayPort*3 x USB 3.2 Gen 1 ports3 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks* Actual support may vary by CPU.I/O ControlleriTE I/O Controller ChipH/W MonitoringVoltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.BIOS1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique FeaturesSupport for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart BackupBundled SoftwareNorton Internet Security (OEM version)LAN bandwidth management softwareOperating SystemSupport for Windows 11 64-bitSupport for Windows 10 64-bit* The Intel NPU driver is only supported on Windows 11.Form FactorMicro ATX Form Factor; 24.4cm x 22.5cm
