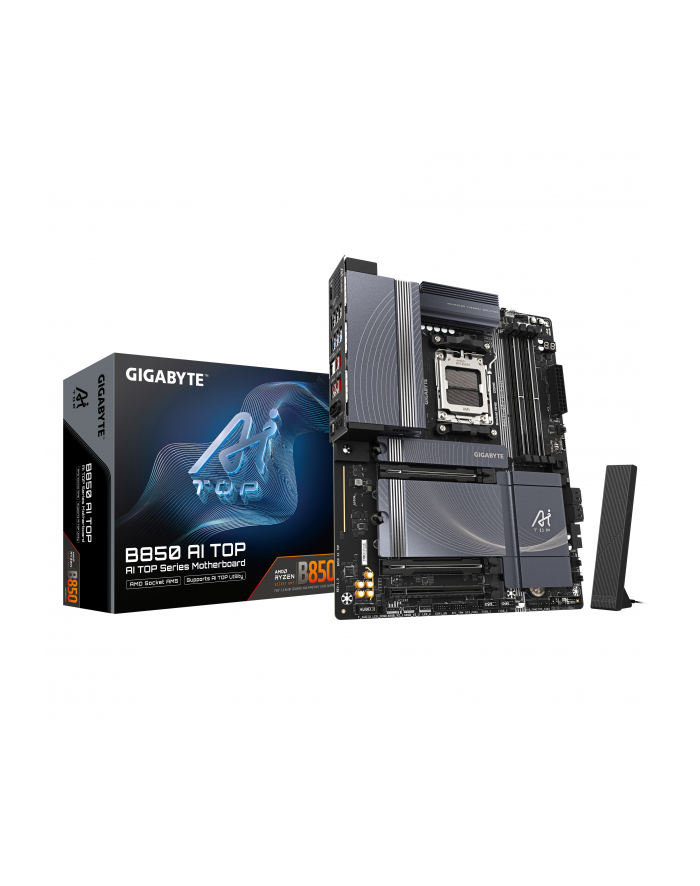

GIGABYTE B850 AI TOP AM5 MB 4xDDR5 4xSATA 3xM.2

Format:ATX; Chipset:AMD B850; Socket:Socket AM5 (LGA 1718); Motherboard memory module type:DDR5; RAID support:0, 1, 5, 10; PCI express 16x:3GIGABYTE B850 AI TOPTraining your own AI on your deskDDR5 OC up to 8600MT/sAMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series ProcessorsDigital twin 16+2+2 phases VRM solutionDual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module SupportWIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installationEZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless DesignEZ-Latch Click : M.2 heatsinks with screwless designFriendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.New Power Monitor in HWinfo for real-time monitoring on CPU power phasesUltra-Fast Storage : 3*M.2 slots, including 2*PCIe 5.0 x4Efficient Thermal : VRM Thermal Armor Advanced with M.2 Thermal GuardBlazing Fast Networks : Dual 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antennaExtended Connectivity : Rear USB-C support up to 40Gb/s, Front USB-C 20Gb/s, HDMIHigh-Res Audio : ALC1220 and High-End Audio CapacitorUltra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability.PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics cardCPUAMD Socket AM5, support for:AMD Ryzen™ 9000 Series Processors/AMD Ryzen™ 8000 Series Processors/AMD Ryzen™ 7000 Series Processors(Go to GIGABYTEqqq1s website for the latest CPU support list.)ChipsetAMD B850MemorySupport for DDR5 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC and non-ECC Un-buffered DIMM memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to qqq1qqq1Memory Support Listqqq1qqq1 on GIGABYTEqqq1s website for more information.)Onboard GraphicsIntegrated Graphics Processor with AMD Radeon™ Graphics support:- 1 x USB Type-C port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz* Support for DisplayPort 1.4 version and HDR.- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3, and HDR.** Support for native HDMI 2.1 TMDS compatible ports.(Graphics specifications may vary depending on CPU support.)AudioRealtek ALC1220 CODEC* The back panel line out jack supports DSD audio.High Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF OutLAN2 x Marvell AQtion AQC113C 10GbE LAN chips(10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)Wireless Communication moduleRealtek Wi-Fi 7 RTL8922AE- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.4- Support for 11be 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.)* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)** Wi-Fi 7 channels on 6 GHz band availability depends on individual countryqqq1s regulations.Expansion Slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 modeAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 modeAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.* The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x8 mode* The PCIEX8 slot become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/ Phoenix 2 processor is used.Chipset:- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x2 (PCIEX2)* The PCIEX2 slot shares bandwidth with the M2C_SB connector. The PCIEX2 slot becomes unavailable when a device is installed in the M2C_SB connector.Storage Interface1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type, type 25110/22110/2580/2280 SSDs:AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDsAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type, type 25110/22110/2580/2280 SSDs:AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDsAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.RAID 0, RAID 1, and RAID 10 support for SATA storage devicesUSBCPU:- 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support (Note)CPU+USB 2.0 Hub:- 4 x USB 2.0/1.1 ports on the back panelChipset:- 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header- 2 x USB 3.2 Gen 1 ports available through the internal USB header- 4 x USB 2.0/1.1 ports available through the internal USB headersChipset+USB 3.2 Gen 1 Hub:- 4 x USB 3.2 Gen 1 ports on the back panel(Note) This USB Type-C port supports a maximum speed of 40 Gbps. Actual support may vary by CPU.Internal I/O Connectors1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x CPU fan/water cooling pump header4 x system fan headers2 x system fan/water cooling pump headers3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header4 x SATA 6Gb/s connectors3 x M.2 Socket 3 connectors1 x front panel header1 x front panel audio header1 x USB Type-C header, with USB 3.2 Gen 2x2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x noise detection header1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)1 x power button1 x reset button1 x reset jumper1 x Clear CMOS jumper2 x temperature sensor headersBack Panel Connectors1 x Q-Flash Plus button2 x SMA antenna connectors (2T2R)1 x HDMI port (Note)1 x USB Type-C port (DisplayPort (Note))3 x USB 3.2 Gen 2 Type-A ports (red)4 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports2 x RJ-45 ports1 x optical S/PDIF Out connector2 x audio jacks(Note) Actual support may vary by CPU.I/O ControlleriTE I/O Controller ChipH/W MonitoringVoltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.Noise detectionBIOS1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique FeaturesSupport for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart BackupBundled SoftwareNorton Internet Security (OEM version)LAN bandwidth management softwareOperating SystemSupport for Windows 11 64-bitForm FactorATX Form Factor; 30.5cm x 24.4cm

GIGABYTE B850 AI TOP bazuje na chipsecie AMD B850 i obsługuje procesory AMD na gnieździe AM5. Posiada cztery gniazda DDR5 o pojemności do 256 GB. Dodatkowe funkcje GIGABYTE B850 AI TOP obejmują gniazdo PCIe 5.0 x16 i dwa gniazda PCIe 4.0 x16. GIGABYTE B850 AI TOP ma także 8-kanałowy dźwięk, 2,5-gigabitowy interfejs LAN, dziesięć portów SATA3, WiFi7, Bluetooth, trzy porty M.2 i szereg interfejsów USB.


Typ płyty głównej
EAN 4719331866570
Nr producenta B850 AI TOP
Gniazdo AM5
Maks. obsługiwane procesory 1
Obsługa systemu operacyjnego Windows 10 gotowy, Windows 11 gotowy
Procesor Obsługiwane modele Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 8xxxF (Phoenix), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxx (Granite Ridge), Ryzen 5 9xxxX ( Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 7 8xxxF (Phoenix), Ryzen 7 9xxxX (Granite Ridge), Ryzen 7 9xxxX3D (Granite Ridge), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael), Ryzen 9 9xxxX (Granitowy grzbiet)
Chipset AMD B850
Sloty PCIe x16 3x (w tym: 1x PCIe x16, 1x PCIe x8, 1x PCIe x2)
BIOS EFI BIOS Tak
Współczynnik kształtu ATX
Użyj komputera
Zasilanie ATX12V (24-pin + 8-pin)
Pamięć maksymalnie 256 GB
Wi-Fi 7
Porty (zewnętrzne) USB-C 3.2 Gen 2 (10 Gbit/s) 1
Złącza (wewnętrzne) SATA 4
Porty (opcjonalne) USB 3.2 Gen 1 (5 Gbit/s) 2
Kontroler SATA AMD B850
Bezpośrednio dostępne poziomy RAID 0, 1, 10
Kontroler USB AMD B850
Wbudowana grafika Złączy graficznych na płycie głównej można używać tylko w przypadku korzystania z procesora ze zintegrowanym układem graficznym.
Dźwięk Realtek ALC1220-VB
Sieć LAN Realtek 2.5G LAN
Dalsze informacje W celu obsługi najnowszych rdzeni procesorów może być wymagana aktualizacja BIOS-u.
Ostrzeżenia i instrukcje bezpieczeństwa Ostrzeżenia:Uwaga: Produkt zawiera baterię pastylkową lub pastylkową.

GIGABYTE B850 AI TOP. Producent procesora: AMD, Gniazdo procesora: Gniazdo AM5, Procesor: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Obsługiwane rodzaje pamięci: DDR5-SDRAM, Maksymalna pojemność pamięci: 256 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2, SATA III, Obsługiwane rodzaje dysków: HDD & SSD, Poziomy raid: 0, 1, 10. Maks. rozdzielczość: 4096 x 2160 px. Rodzaj interfejsu sieci Ethernet: 10 Gigabit Ethernet, Podstawowy standard Wi-Fi: Wi-Fi 7 (802.11be), Standardy Wi- Fi: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E...
