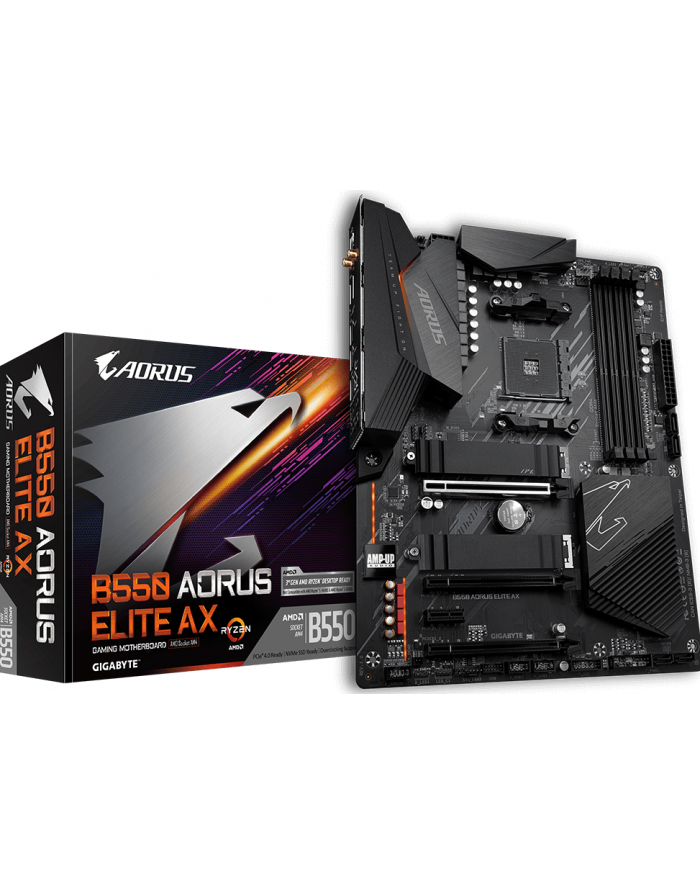

GIGABYTE B550 AORUS ELITE AX AM4 DDR4 2xM.2 4xSATA HDMI ATX MB

Format:ATX; Chipset:AMD B550, AMD; Socket:Socket AM4; Motherboard memory module type:DDR4; RAID support:1, 10; PCI express 16x:3B550 AORUS ELITE AX V2AMD B550 AORUS Motherboard with 12+2 Phases Digital Twin Power Design, Enlarged Surface Heatsinks, Dual PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards, AMD WiFi 6E 802.11ax, 2.5GbE LAN, Front USB Type-C™, RGB FUSION 2.0, Q-Flash PlusSupports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 and Ryzen™ 3000 G-Series ProcessorsDual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs12+2 Phases Digital Twin Power Design with 50A DrMOSAdvanced Thermal Design with Enlarged Surface HeatsinksUltra Durable™ PCIe 4.0 x16 SlotDual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal GuardsOnboard AMD WiFi 6E 802.11ax & BT 5.2AMP-UP Audio with ALC1200 and WIMA CapacitorsBlazing Fast 2.5GbE LAN with Bandwidth ManagementFront USB 3.2 Gen1 Type-C™ and DisplayPort & HDMI for Multiple DisplayRGB FUSION 2.0 Supports Addressable LED & RGB LED StripsSmart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOPQ-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics CardPre-installed IO Shield for Easy and Quick InstallationThis MB has several revisions, you can see the differences in the belowCPUAMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series, Ryzen™ 3000 Series and Ryzen™ 3000 G-Series ProcessorsSocket AM4(Please refer qqq1qqq1CPU Support Listqqq1qqq1 for more information.)ChipsetAMD B550Memory4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memorySupport for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modulesDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules** ECC memory (ECC mode) support varies by CPUSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Please refer qqq1qqq1Memory Support Listqqq1qqq1 for more information.)Onboard GraphicsIntegrated Graphics Processor:1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.Maximum shared memory of 16 GBAudioPCB Rev. 1.5, 1.4Realtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF OutPCB Rev. 1.3, 1.2, 1.1, 1.0Realtek ALC1200 codecHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF OutLANRealtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)Wireless Communication modulePCB Rev. 1.5, 1.4Realtek Wi-Fi 6E RTL8852CEWIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.2Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data ratePCB Rev. 1.3Intel Wi-Fi 6E AX210WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data ratePCB Rev. 1.2, 1.1AMD Wi-Fi 6E RZ608 (MT7921K)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.2Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data ratePCB Rev. 1.0Intel Wi-Fi 6 AX200WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-BandBLUETOOTH 5Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate* Actual data rate may vary depending on environment and equipment.Expansion Slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:- AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode* Actual support may vary by AMD CPUqqq1s specification- AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support PCIe 3.0 x16 mode* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:- Supporting PCIe 3.0 x2 mode1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:- Supporting PCIe 3.0 x1 mode1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:- Supporting PCIe 3.0 x1 modeStorage Interface1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:- AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs- AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:- Supporting SATA and PCIe 3.0 x4/x2 SSDs4 x SATA 6Gb/s connectors, integrated in the Chipset:- Support for RAID 0, RAID 1, and RAID 10USBCPU:AMD Ryzen™ 5000 Series/3000 Series Processors support two USB 3.2 Gen 2 Type-A ports (red) on the back panelAMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support two USB 3.2 Gen 1 ports (red) on the back panel2 x USB 3.2 Gen 1 ports on the back panelChipset:1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header1 x USB 3.2 Gen 1 port on the back panel2 x USB 3.2 Gen 1 ports available through the internal USB header2 x USB 2.0/1.1 ports on the back panelChipset+USB 2.0 Hub:4 x USB 2.0/1.1 ports available through the internal USB headersInternal I/O Connectors1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x CPU cooler LED strip/RGB LED strip header2 x addressable LED strip headers2 x RGB LED strip headers1 x front panel header1 x front panel audio header1 x USB Type-C™ port, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)1 x Clear CMOS jumper*All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.Back Panel Connectors1 x DisplayPort1 x HDMI port2 x SMA antenna connectors (2T2R)2 x USB 3.2 Gen 2 Type-A*/USB 3.2 Gen 1 ports (red)* For AMD Ryzen™ 5000 Series/3000 Series Processors only.3 x USB 3.2 Gen 1 ports2 x USB 2.0/1.1 ports1 x Q-Flash Plus button1 x RJ-45 port1 x optical S/PDIF Out connector5 x audio jacksI/O ControlleriTE I/O Controller ChipH/W MonitoringVoltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionOverheating warningFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the fan you install.BIOS1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique FeaturesSupport for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashBundled SoftwareNorton Internet Security (OEM version)LAN bandwidth management softwareOperating SystemSupport for Windows 11 64-bitSupport for Windows 10 64-bitForm FactorATX Form Factor; 30.5cm x 24.4cm

Budowa: ATX
Chipset: AMD B550
VRM: 8 rzeczywistych faz (6+2), 14 wirtualnych faz (12+2), kontroler PWM: RAA 229004 (max. 8 rzeczywistych faz)
MOSFETs CPU: 12x 50A SiC651C
MOSFETs SoC: 2x 50A SiC651ACD
RAM: 4x DDR4 DIMM, dual PC4-37866U/?DDR4-4733 (OC), max. 128GB (UDIMM)
Sloty rozszerzeń: 1x PCIe 4.0 x16, 2x PCIe 3.0 x16 (1x x2, 1x x1), 1x PCIe 3.0 x1, 1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 22110/?2280/?2260/?2242), 1x M.2/?M-Key (PCIe 3.0 x4/?SATA, 22110/?2280/?2260/?2242)
Złącza zewnętrzne: 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 2x USB-A 3.1 (10Gb/?s, B550), 3x USB-A 3.0 (5Gb/?s), 2x USB-A 2.0 (480Mb/?s), 1x 2.5GBase-T (Realtek RTL8125B-CG), 5x wtyczka jack, 1x Toslink
Złącza wewnętrzne: 1x USB-C 3.0 Key-A Header (5Gb/?s), 1x USB 3.0 Header (5Gb/?s, 2x USB 3.0), 2x USB 2.0 Header (480Mb/?s, 4x USB 2.0), 4x SATA 6Gb/s (B550), 1x TPM-Header
Header Chłodzenie: 1x Wentylatory CPU 4-Pin, 1x Wentylatory CPU/?pompa 4-Pin, 3x wentylator 4-Pin
Header Oświetlenie: 3x 4-Pin RGB (+12V/?G/?R/?B, max. 2A), 2x 3-Pin ARGB (+5V/?DATA/?GND, max. 5A)
Przyciski/przełączniki: USB BIOS Flashback/?Q-Flash Plus (zewn.)
Audio: 7.1 (Realtek ALC1200)
Grafika: iGPU
Wireless: Wi-Fi 6 (WLAN 802.11a/?b/?g/?n/?ac/?ax, 2x2, Intel AX200), Bluetooth 5.1
Poziom RAID: 0/?1/?10 (B550)
Multi GPU: brak
Złącza zasilania: 1x 24-Pin ATX, 1x 8-Pin EPS12V
Oświetlenie: RGB, 1 Zone (obwód audio)
BIOS: 1x 32MB (256Mb)
Cechy szczególne: Audio+solid capacitors, I/?O-zaślepka zintegrowany, 2x pasywne chłodzenie M.2, obsługa ECC


Budowa: ATX
Chipset: AMD B550
VRM: 8 rzeczywistych faz (6+2), 14 wirtualnych faz (12+2), kontroler PWM: RAA 229004 (max. 8 rzeczywistych faz)
MOSFETs CPU: 12x 50A SiC651C
MOSFETs SoC: 2x 50A SiC651ACD
RAM: 4x DDR4 DIMM, dual PC4-37866U/?DDR4-4733 (OC), max. 128GB (UDIMM)
Sloty rozszerzeń: 1x PCIe 4.0 x16, 2x PCIe 3.0 x16 (1x x2, 1x x1), 1x PCIe 3.0 x1, 1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 22110/?2280/?2260/?2242), 1x M.2/?M-Key (PCIe 3.0 x4/?SATA, 22110/?2280/?2260/?2242)
Złącza zewnętrzne: 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 2x USB-A 3.1 (10Gb/?s, B550), 3x USB-A 3.0 (5Gb/?s), 2x USB-A 2.0 (480Mb/?s), 1x 2.5GBase-T (Realtek RTL8125B-CG), 5x wtyczka jack, 1x Toslink
Złącza wewnętrzne: 1x USB-C 3.0 Key-A Header (5Gb/?s), 1x USB 3.0 Header (5Gb/?s, 2x USB 3.0), 2x USB 2.0 Header (480Mb/?s, 4x USB 2.0), 4x SATA 6Gb/s (B550), 1x TPM-Header
Header Chłodzenie: 1x Wentylatory CPU 4-Pin, 1x Wentylatory CPU/?pompa 4-Pin, 3x wentylator 4-Pin
Header Oświetlenie: 3x 4-Pin RGB (+12V/?G/?R/?B, max. 2A), 2x 3-Pin ARGB (+5V/?DATA/?GND, max. 5A)
Przyciski/przełączniki: USB BIOS Flashback/?Q-Flash Plus (zewn.)
Audio: 7.1 (Realtek ALC1200)
Grafika: iGPU
Wireless: Wi-Fi 6 (WLAN 802.11a/?b/?g/?n/?ac/?ax, 2x2, Intel AX200), Bluetooth 5.1
Poziom RAID: 0/?1/?10 (B550)
Multi GPU: brak
Złącza zasilania: 1x 24-Pin ATX, 1x 8-Pin EPS12V
Oświetlenie: RGB, 1 Zone (obwód audio)
BIOS: 1x 32MB (256Mb)
Cechy szczególne: Audio+solid capacitors, I/?O-zaślepka zintegrowany, 2x pasywne chłodzenie M.2, obsługa ECC


GIGABYTE B550 AORUS ELITE AX V2. Producent procesora: AMD, Gniazdo procesora: Socket AM4, Procesor: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series. Obsługiwane rodzaje pamięci: DDR4-SDRAM, Maksymalna pojemność pamięci: 128 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2, SATA III, Obsługiwane rodzaje dysków: HDD & SSD, Poziomy raid: 0, 1, 10. Maks. rozdzielczość: 5120 x 2880 px. Rodzaj interfejsu sieci Ethernet: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Kontroler LAN: Realtek RTL8125, Podstawowy standard Wi-Fi: Wi-Fi 6E (802.11ax)
