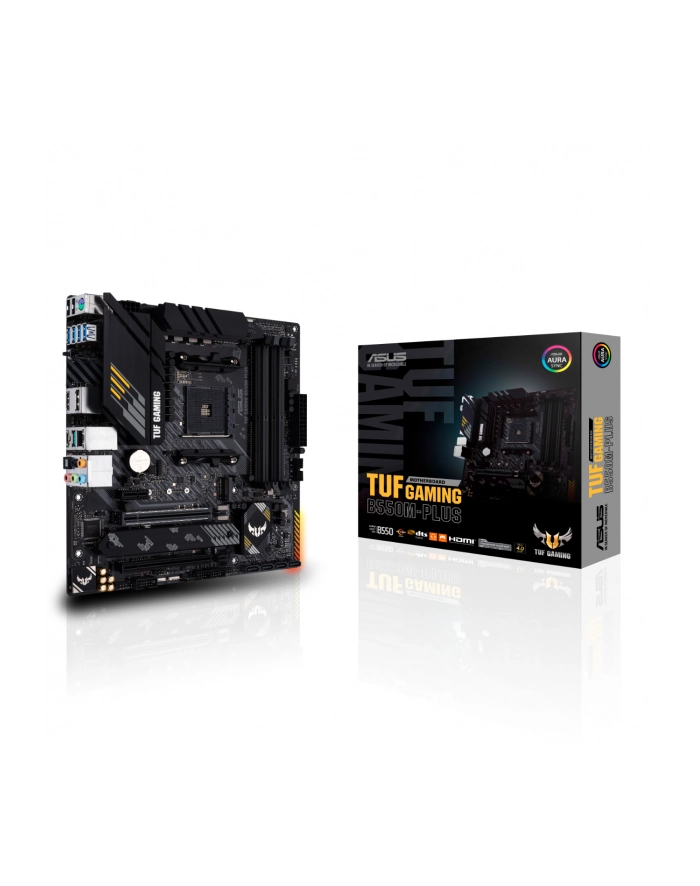

ASUS TUF GAMING B550M-PLUS (90MB14A0-M0EAY0)

Format:micro ATX; Chipset:AMD B550, AMD; Socket:Socket AM4; Motherboard memory module type:DDR4; RAID support:0, 1, 10; PCI express 16x:2; COM portTUF GAMING B550M-PLUSAMD B550 (Ryzen AM4) micro ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, and Aura Sync RGB lighting supportAMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ ProcessorsEnhanced power solution: 8+2 DrMOS power stages, ProCool connector, military-grade TUF components, and Digi+ VRM for maximum durabilityComprehensive cooling: VRM heatsinks, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 2+ utilityNext-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C supportMade for online gaming: 2.5 Gb Ethernet, TUF LANGuard and TurboLAN technologyRealtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line inAI noise-canceling microphone: Provides crystal-clear in-game voice communicationTECHNICAL SPECIFICATIONS CPUBuild in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors ** Refer to www.asus.com for CPU support list ChipsetAMD B550 Memory3rd Gen AMD Ryzen™ Processors4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *ECC Memory (ECC mode) support varies by CPU.* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic1 x DisplayPort 1.21 x HDMI 2.1(4K@60HZ) Multi-GPU SupportSupports AMD 2-Way CrossFireX Technology Expansion Slots3rd Gen AMD Ryzen™ Processors1 x PCIe 4.0 x16 (x16 mode)AMD B550 Chipset1 x PCIe 3.0 x16 (x4 mode)1 x PCIe 3.0 x1* Support PCIe bifurcation for RAID on CPU function. StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports3rd Gen AMD Ryzen™ Processors :1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices supportAMD B550 Chipset :1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support4 x SATA 6Gb/s port(s),Support Raid 0, 1, 10 LANRealtek RTL8125B 2.5Gb EthernetTUF LANGuard AudioRealtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playbackAudio Feature :- Exclusive DTS Custom for GAMING Headsets.- Optical S/PDIF out port(s) at back panel- Audio cover- Audio Shielding- Dedicated audio PCB layers- Premium Japanese audio capacitors USB PortsRear USB Port ( Total 8 )2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C)4 x USB 3.2 Gen 1 port(s)(4 x Type-A)2 x USB 2.0 port(s)(2 x Type-A)Front USB Port ( Total 6 )2 x USB 3.2 Gen 1 port(s)(2 x Type-A)4 x USB 2.0 port(s)(4 x Type-A) Software FeaturesASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- AI Noise Cancelling MicrophoneAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDigi+ VRMFan Xpert 2+- EZ updateTUF GAMING CPU-ZAI ChargerASUS Turbo LANDAEMON ToolsDTS Custom for GAMING HeadsetsNorton Anti-virus software (Free Trial for 60 days)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode ASUS Special FeaturesASUS TUF PROTECTION- ASUS DIGI+ VRM (Digital power design with Dr. MOS)- ASUS Enhanced DRAM Overcurrent Protection- ASUS ESD Guards- TUF LANGuard- ASUS Overvoltage Protection- ASUS SafeSlot- ASUS Stainless-Steel Back I/OASUS Q-Design- ASUS Q-DIMM- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- ASUS Q-SlotASUS Thermal Solution- Aluminum M.2 heatsinkASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- ProcoolAURA Sync- Standard RGB headers- Addressable Gen 2 RGB header Back I/O Ports1 x PS/2 keyboard/mouse combo port(s)1 x DisplayPort1 x HDMI1 x LAN (2.5G) port(s)2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C)4 x USB 3.2 Gen 1 (blue) Type-A2 x USB 2.01 x Optical S/PDIF out5 x Audio jack(s)1 x BIOS FlashBack™ Button(s) Internal I/O Ports1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)2 x Chassis Fan connector(s)2 x Aura RGB Strip Headers1 x Addressable Gen 2 header(s)1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 4.0 x 4 mode)1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x SPI TPM header4 x SATA 6Gb/s connector(s)1 x 24-pin EATX Power connector(s)1 x 8-pin EATX 12V Power connectors1 x Front panel audio connector(s) (AAFP)1 x Clear CMOS jumper(s)1 x System panel connector1 x COM port header1 x Speaker connector AccessoriesUserqqq1s manualI/O Shield2 x SATA 6Gb/s cable(s)1 x Supporting DVD1 x TUF Gaming Sticker1 x TUF Certification card(s)1 x M.2 SSD screw package(s)1 x M.2 Rubber Package(s) BIOS256 Mb Flash ROM, UEFI AMI BIOS ManageabilityWOL by PXE Operating SystemWindows 10 64-bit Form FactormATX Form Factor9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Budowa: µATX
Chipset: AMD B550
CPU-Kompatybilność: Ryzen 4000G,
VRM: 10 wirtualnych faz (8+2)
MOSFETs CPU: 8x
MOSFETs SoC: 2x
RAM: 4x DDR4 DIMM, dual PC4-38400U/?DDR4-4800 (OC), max. 128GB (UDIMM)
Sloty rozszerzeń: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4), 1x PCIe 3.0 x1, 1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 2280/?2260/?2242), 1x M.2/?M-Key (PCIe 3.0 x4/?SATA, 22110/?2280/?2260/?2242)
Złącza zewnętrzne: 1x HDMI 2.1, 1x DisplayPort 1.2, 1x USB-C 3.1 (B550), 1x USB-A 3.1 (B550), 4x USB-A 3.0, 2x USB-A 2.0, 1x 2.5GBase-T (Realtek RTL8125B-CG), 5x wtyczka jack, 1x Toslink, 1x combo PS/?2
Złącza wewnętrzne: 1x USB 3.0 Header (2x USB 3.0), 2x USB 2.0 Header (4x USB 2.0), 4x SATA 6Gb/s (B550), 1x port szeregowy, 1x TPM-Header, 1x Speaker-Header
Header Chłodzenie: 2x Wentylatory CPU 4-Pin, 2x wentylator 4-Pin
Header Oświetlenie: 2x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 1x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A, ASUS Gen2)
Przyciski/przełączniki: USB BIOS Flashback (zewn.)
Audio: 7.1 (Realtek ALC1200), DTS Custom Audio
Grafika: CPU
Wireless: brak
Poziom RAID: 0/?1/?10 (B550)
Multi GPU: AMD 2-Way-CrossFireX (x16/?x4)
Złącza zasilania: 1x 24-Pin ATX, 1x 8-Pin EPS12V
Oświetlenie: RGB, 1 Zone (strona prawo)
BIOS: 1x 32MB (256Mb)
Cechy dodatkowe: Audio+solid capacitors, dioda diagnostyczna (LED-wskaźniki), 1x pasywne chłodzenie M.2
Gwarancja producenta: trzy lata (realizacja przez sklep)


Budowa: µATX
Chipset: AMD B550
CPU-Kompatybilność: Ryzen 4000G,
VRM: 10 wirtualnych faz (8+2)
MOSFETs CPU: 8x
MOSFETs SoC: 2x
RAM: 4x DDR4 DIMM, dual PC4-38400U/?DDR4-4800 (OC), max. 128GB (UDIMM)
Sloty rozszerzeń: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4), 1x PCIe 3.0 x1, 1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 2280/?2260/?2242), 1x M.2/?M-Key (PCIe 3.0 x4/?SATA, 22110/?2280/?2260/?2242)
Złącza zewnętrzne: 1x HDMI 2.1, 1x DisplayPort 1.2, 1x USB-C 3.1 (B550), 1x USB-A 3.1 (B550), 4x USB-A 3.0, 2x USB-A 2.0, 1x 2.5GBase-T (Realtek RTL8125B-CG), 5x wtyczka jack, 1x Toslink, 1x combo PS/?2
Złącza wewnętrzne: 1x USB 3.0 Header (2x USB 3.0), 2x USB 2.0 Header (4x USB 2.0), 4x SATA 6Gb/s (B550), 1x port szeregowy, 1x TPM-Header, 1x Speaker-Header
Header Chłodzenie: 2x Wentylatory CPU 4-Pin, 2x wentylator 4-Pin
Header Oświetlenie: 2x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 1x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A, ASUS Gen2)
Przyciski/przełączniki: USB BIOS Flashback (zewn.)
Audio: 7.1 (Realtek ALC1200), DTS Custom Audio
Grafika: CPU
Wireless: brak
Poziom RAID: 0/?1/?10 (B550)
Multi GPU: AMD 2-Way-CrossFireX (x16/?x4)
Złącza zasilania: 1x 24-Pin ATX, 1x 8-Pin EPS12V
Oświetlenie: RGB, 1 Zone (strona prawo)
BIOS: 1x 32MB (256Mb)
Cechy dodatkowe: Audio+solid capacitors, dioda diagnostyczna (LED-wskaźniki), 1x pasywne chłodzenie M.2
Gwarancja producenta: trzy lata (realizacja przez sklep)


ASUS TUF GAMING B550M PLUS. Producent procesora: AMD, Gniazdo procesora: Socket AM4, Procesor: 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd.... Obsługiwane rodzaje pamięci: DDR4-SDRAM, Maksymalna pojemność pamięci: 128 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2,SATA. Obsługa przetwarzania równoległego: 2-Way CrossFireX. Rodzaj płyty: micro ATX, Rodzina płyt z chipsetami: AMD, Układ płyty głównej: AMD B550

ASUS TUF GAMING B550M PLUS. Producent procesora: AMD, Gniazdo procesora: Socket AM4, Procesor: AMD Ryzen 3000 Series. Obsługiwane rodzaje pamięci: DDR4-SDRAM, Maksymalna pojemność pamięci: 128 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2, SATA. Obsługa przetwarzania równoległego: 2-Way CrossFireX. Przeznaczenie: PC, Rodzaj płyty: micro ATX, Rodzina płyt z chipsetami: AMD
