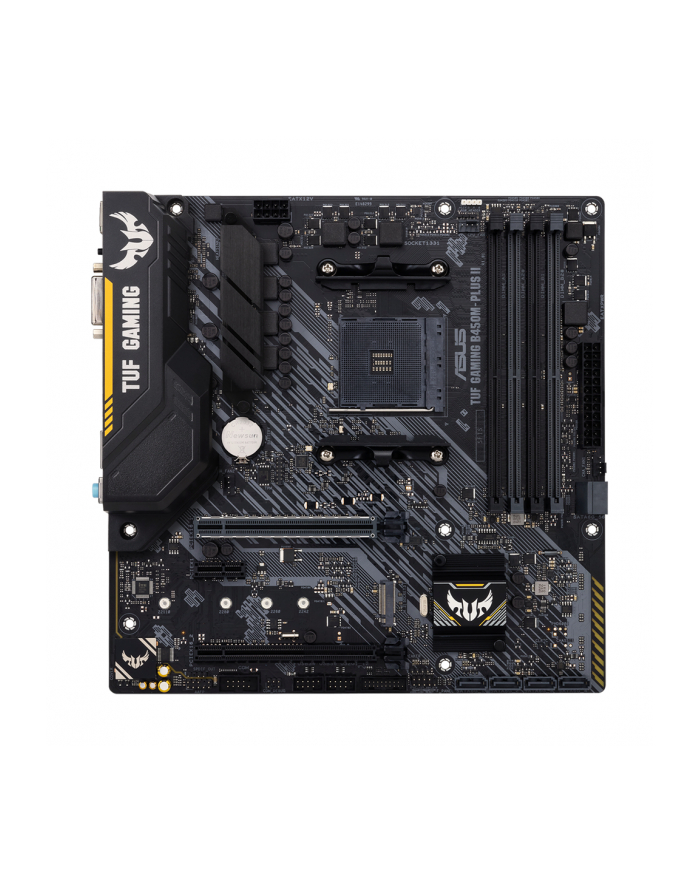

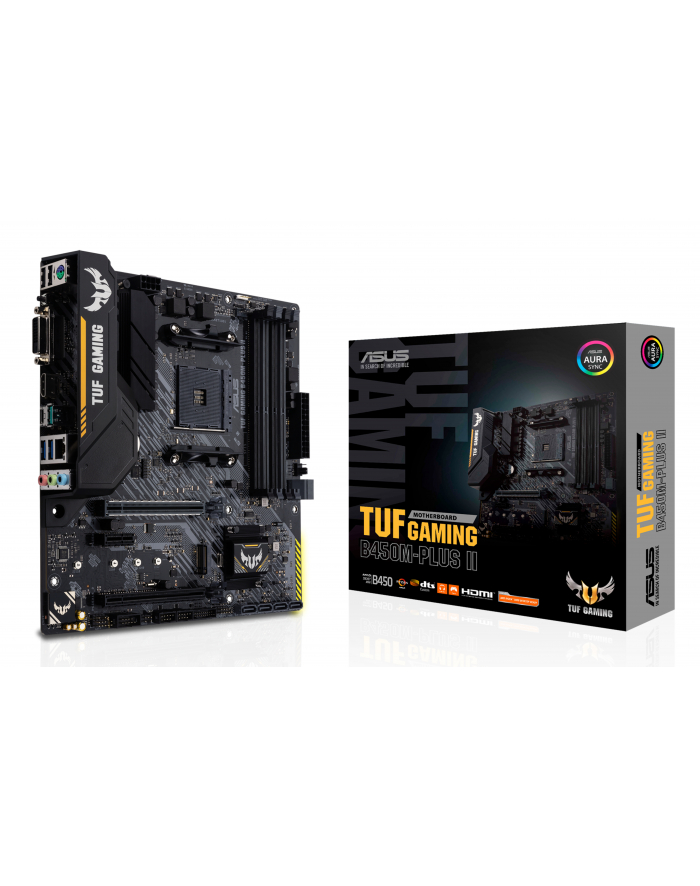

Asus TUF GAMING B450M-PLUS II - Socket AM4 - Mainboard

Format:micro ATX; Chipset:AMD B450; Socket:Socket AM4; Motherboard memory module type:DDR4; RAID support:0, 1, 10; PCI express 16x:2; COM portTUF GAMING B450M-PLUS IIAMD B450 (AM4) micro ATX gaming motherboard with M.2 support, AI Noise-Canceling Microphone, HDMI, DVI-D, USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1 Type-A and Type-C, Aura Sync RGB lighting supportComprehensive cooling: VRM heatsink, PCH heatsink, Fan Xpert 2+Next-gen connectivity: USB 3.2 Gen 2 Type-A supportAI Noise-Canceling Microphone: Provides crystal-clear in-game voice communicationAura Sync RGB Lighting: Synchronize LED lighting with a vast portfolio of compatible PC gearTECHNICAL SPECIFICATIONSCPUAMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors ** Refer to www.asus.com for CPU support listChipsetAMD B450Memory3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3533(O.C)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *Dual Channel Memory ArchitectureECC Memory (ECC mode) support varies by CPU.* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).* The maximum memory frequency supported varies by processor.GraphicIntegrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors1 x HDMI 2.0b1 x DVI-D*Graphics specifications may vary between CPU types.Multi-GPU SupportSupports AMD 2-Way CrossFireX TechnologyExpansion Slots3rd/2nd/1st Gen AMD Ryzen™ Processors1 x PCIe 3.0/2.0 x16 (x16 mode)2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors1 x PCIe 3.0/2.0 x16 (x8 mode)Athlon™ with Radeon™ Vega Graphics Processors1 x PCIe 3.0/2.0 x16 (max at x4 mode)AMD B450 chipset1 x PCIe 2.0 x16 (x4 mode)1 x PCIe 2.0 x1StorageTotal supports 1 x M.2 slot(s) and 6 x SATA 6Gb/s ports3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics:1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support*1Athlon™ with Radeon™ Vega Graphics Processors:1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*13rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors:2 x SATA 6Gb/s port(s),Support Raid 0, 1, 10AMD B450 chipset:4 x SATA 6Gb/s port(s),Support Raid 0, 1, 10LANRealtek RTL8111H 1Gb EthernetTUF LANGuardAudioRealtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playbackAudio Feature:- Exclusive DTS Custom for GAMING Headsets.- Audio cover- Audio Shielding- Dedicated audio PCB layers- Premium Japanese audio capacitorsUSB PortsRear USB Port (Total 6)1 x USB 3.2 Gen 2 port(s)(1 x Type-A)3 x USB 3.2 Gen 1 port(s)(2 x Type-A +1 x Type-C)2 x USB 2.0 port(s)(2 x Type-A)Front USB Port (Total 6)2 x USB 3.2 Gen 1 port(s)(2 x Type-A)4 x USB 2.0 port(s)(4 x Type-A) Software FeaturesASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- AI Noise-Canceling MicrophoneAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDigi+ VRMFan Xpert 2+- EZ update- PC CleanerTUF GAMING CPU-ZAI ChargerASUS Turbo LANDAEMON ToolsDTS Custom for GAMING HeadsetsNorton Anti-virus software (Free Trial for 60 days)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ ModeASUS Special FeaturesASUS TUF PROTECTION- ASUS DIGI+ VRM- ASUS Enhanced DRAM Overcurrent Protection- ASUS ESD Guards- TUF LANGuard- ASUS Overvoltage Protection- ASUS SafeSlot- ASUS Stainless-Steel Back I/OASUS Q-Design- ASUS Q-DIMM- ASUS Q-SlotASUS Thermal Solution- Aluminum heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LEDAURA Sync- AURA RGB headerBack I/O Ports1 x PS/2 keyboard/mouse combo port(s)1 x DVI-D1 x HDMI1 x LAN (RJ45) port(s)1 x USB 3.2 Gen 2 (teal blue)Type-A,2 x USB 3.2 Gen 1 (blue) Type-A1 x USB 3.2 Gen 1 (black) Type-C2 x USB 2.03 x Audio jack(s)1 x BIOS FlashBack™ Button(s)Internal I/O Ports1 x CPU Fan connector(s)2 x Chassis Fan connector(s)1 x Aura RGB Strip Header1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x SPI TPM header6 x SATA 6Gb/s connector(s)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin EATX 12V Power connectors1 x Front panel audio connector(s) (AAFP)1 x Clear CMOS jumper(s)1 x System panel connector1 x COM port header1 x Speaker connectorAccessoriesUser´s manualI/O Shield2 x SATA 6Gb/s cable(s)1 x Supporting DVD1 x TUF Gaming Sticker1 x TUF Certification card(s)1 x M.2 SSD screw package(s)BIOS256 Mb Flash ROM, UEFI AMI BIOSManageabilityWOL by PXEOperating SystemWindows 10 64-bitWindows 7 64-bit *2Form FactormATX Form Factor9.6 x 9.6 inch (24.4 x 24.4 cm)Note*1 The M.2 slot shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed.*2 To support Windows 7 64-bit, please install an AMD Ryzen™ 2nd Generation or Ryzen™ 1st Generation Processor.

Budowa: µATX
Chipset: AMD B450
RAM: 4x DDR4 DIMM, dual PC4-35200U/?DDR4-4400 (OC), max. 128GB (UDIMM)
Sloty rozszerzeń: 1x PCIe 3.0 x16, 1x PCIe 2.0 x16 (x4), 1x PCIe 2.0 x1, 1x M.2/?M-Key (PCIe 3.0 x4/?SATA, 22110/?2280/?2260/?2242)
Złącza zewnętrzne: 1 x DVI-D (iGPU), 1x HDMI 2.0b (iGPU), 1x USB-A 3.1 (B450), 1x USB-C 3.0, 2x USB-A 3.0, 2x USB-A 2.0, 1x Gb LAN (Realtek RTL8111H), 3x wtyczka jack, 1x combo PS/?2
Złącza wewnętrzne: 1x USB 3.0 Header (2x USB 3.0), 2x USB 2.0 Header (4x USB 2.0), 4x SATA 6Gb/s (B450), 2x SATA 6Gb/s (CPU), 1x port szeregowy, 1x TPM-Header, 1x S/?PDIF-Header, 1x Speaker-Header
Header Chłodzenie: 1x Wentylatory CPU 4-Pin, 2x wentylator 4-Pin
Header Oświetlenie: 1x 4-Pin RGB (+12V/?G/?R/?B, max. 3A)
Przyciski/przełączniki: USB BIOS Flashback (zewn.)
Audio: 7.1 (Realtek ALC887), DTS Custom Audio
Onboard-Grafika: iGPU
Wireless: brak
Poziom RAID: 0/?1/?10 (B450)
Multi GPU: AMD 2-Way-CrossFireX (x16/?x4)
Złącza zasilania: 1x 24-Pin ATX, 1x 8-Pin EPS12V
Oświetlenie: RGB, 1 Zone (strona prawo)
BIOS: 1x 32MB (256Mb)
Cechy szczególne: Audio+solid capacitors, obsługa ECC
Gwarancja: trzy lata (realizacja przez sklep)


Budowa: µATX
Chipset: AMD B450
RAM: 4x DDR4 DIMM, dual PC4-35200U/?DDR4-4400 (OC), max. 128GB (UDIMM)
Sloty rozszerzeń: 1x PCIe 3.0 x16, 1x PCIe 2.0 x16 (x4), 1x PCIe 2.0 x1, 1x M.2/?M-Key (PCIe 3.0 x4/?SATA, 22110/?2280/?2260/?2242)
Złącza zewnętrzne: 1 x DVI-D (iGPU), 1x HDMI 2.0b (iGPU), 1x USB-A 3.1 (B450), 1x USB-C 3.0, 2x USB-A 3.0, 2x USB-A 2.0, 1x Gb LAN (Realtek RTL8111H), 3x wtyczka jack, 1x combo PS/?2
Złącza wewnętrzne: 1x USB 3.0 Header (2x USB 3.0), 2x USB 2.0 Header (4x USB 2.0), 4x SATA 6Gb/s (B450), 2x SATA 6Gb/s (CPU), 1x port szeregowy, 1x TPM-Header, 1x S/?PDIF-Header, 1x Speaker-Header
Header Chłodzenie: 1x Wentylatory CPU 4-Pin, 2x wentylator 4-Pin
Header Oświetlenie: 1x 4-Pin RGB (+12V/?G/?R/?B, max. 3A)
Przyciski/przełączniki: USB BIOS Flashback (zewn.)
Audio: 7.1 (Realtek ALC887), DTS Custom Audio
Onboard-Grafika: iGPU
Wireless: brak
Poziom RAID: 0/?1/?10 (B450)
Multi GPU: AMD 2-Way-CrossFireX (x16/?x4)
Złącza zasilania: 1x 24-Pin ATX, 1x 8-Pin EPS12V
Oświetlenie: RGB, 1 Zone (strona prawo)
BIOS: 1x 32MB (256Mb)
Cechy szczególne: Audio+solid capacitors, obsługa ECC
Gwarancja: trzy lata (realizacja przez sklep)


ASUS TUF Gaming B450M-Plus II. Producent procesora: AMD, Gniazdo procesora: Socket AM4, Procesor: AMD Ryzen 2000 Series, AMD Ryzen 3000 Series, AMD Ryzen Threadripper 1000 Series, AMD Ryzen.... Obsługiwane rodzaje pamięci: DDR4-SDRAM, Maksymalna pojemność pamięci: 128 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2, SATA, SATA II, SATA III, Poziomy raid: 0, 1, 10. Rodzaj interfejsu sieci Ethernet: Gigabit Ethernet. Przeznaczenie: PC, Rodzaj płyty: micro ATX, Rodzina płyt z chipsetami: AMD
