Asus TUF GAMING B450-PLUS II - Socket AM4 - Mainboard

TUF GAMING B450-PLUS II AMD B450 (AM4) ATX gaming motherboard with dual M.2, AI Noise-Canceling Microphone, HDMI, DisplayPort, USB 3.2 Gen 2 Type-A and Type-C and Aura Sync RGB lighting support Comprehensive cooling: VRM heatsinks, PCH heatsink, Fan Xpert 4 core Next-gen connectivity: USB 3.2 Gen 2 Type-A and Type-C support Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in AI Noise-Canceling Microphone: Provides crystal-clear in-game voice communication Aura Sync RGB Lighting: Synchronise LED lighting with a vast portfolio of compatible PC gear TECHNICAL SPECIFICATIONS CPU AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors* Refer to www.asus.com for CPU support list Chipset AMD B450 Memory 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3533(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered MemoryDual Channel Memory ArchitectureECC Memory (ECC mode) support varies by CPU.* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).* The maximum memory frequency supported varies by processor. Graphic Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors1 x DisplayPort 1.21 x HDMI 2.0b*Graphics specifications may vary between CPU types. Multi-GPU Support Supports AMD CrossFireX™ Technology Expansion Slots 3rd/2nd/1st Gen AMD Ryzen™ Processors1 x PCIe 3.0/2.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors1 x PCIe 3.0/2.0 x16 (x8 mode) AMD Athlon™ with Radeon™ Vega Graphics Processors1 x PCIe 3.0/2.0 x16 (x4 mode) AMD B450 chipset1 x PCIe 2.0 x16 (max at x4 mode) *13 x PCIe 2.0 x1 Storage 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics:1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2AMD Athlon™ with Radeon™ Vega Graphics Processors:1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*23rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors:2 x SATA 6Gb/s port(s)Support Raid 0, 1, 10AMD B450 chipset:1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE 2.0 x4)*34 x SATA 6Gb/s port(s)Support Raid 0, 1, 10 LAN Realtek® L8200ATUF LANGuard Audio Realtek® ALC S1200A 8-Channel High Definition Audio CODEC *4Audio Feature:- Exclusive DTS Custom for GAMING Headsets.- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity- Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality. USB Ports Rear USB Port (Total 8)2 x USB 3.2 Gen 2 port(s)(1 x USB Type-C®)(1 x Type-A +0 x )4 x USB 3.2 Gen 1 port(s)(4 x Type-A)2 x USB 2.0 port(s)(2 x Type-A) Front USB Port (Total 6)2 x USB 3.2 Gen 1 port(s)4 x USB 2.0 port(s) Special Features ASUS TUF PROTECTION- ASUS SafeSlot: Protect your graphics card Investment- ASUS Overvoltage Protection: World-class circuit-protecting power design- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!- ASUS DIGI+ VRM: Precision control for stable power- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!AURA :- Aura Lighting Control- Aura RGB Strip HeadersASUS Exclusive Features :- AI Suite 3- Ai Charger- Turbo LAN- PC Cleaner- Armoury Crate- BIOS FlashBack™ ButtonASUS Quiet Thermal Solution :- Stylish Fanless Design Heat-sink solution & MOS Heatsink- ASUS Fan Xpert 4 CoreASUS EZ DIY :- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS USB BIOS FlashBack™- ASUS UEFI BIOS EZ ModeASUS Q-Design :- ASUS Q-Slot- ASUS Q-DIMMArmoury Crate Software Features ASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- AI Noise-Canceling MicrophoneAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDigi+ VRMFan Xpert 4 core- EZ update- PC CleanerTUF GAMING CPU-ZAI ChargerASUS Turbo LANDAEMON ToolsDTS Custom for GAMING HeadsetsNorton Anti-virus software (Free Trial for 60 days)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode ASUS Special Features ASUS TUF PROTECTION- ASUS DIGI+ VRM- ASUS Enhanced DRAM Overcurrent Protection- ASUS ESD Guards- TUF LANGuard- ASUS Overvoltage Protection- ASUS SafeSlot- ASUS Stainless-Steel Back I/OASUS Q-Design- ASUS Q-DIMM- ASUS Q-SlotASUS Thermal Solution- Aluminum heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LEDAURA Sync- AURA RGB headers Back I/O Ports 1 x DisplayPort1 x HDMI1 x LAN (RJ45) port(s)2 x USB 3.2 Gen 2 (1 x USB Type-C®+1 x Type-A)4 x USB 3.2 Gen 1 Type-A2 x USB 2.05 x Audio jack(s)1 x BIOS FlashBack™ Button(s) Internal I/O Ports 1 x CPU Fan connector(s) (1 x 4 -pin)3 x Chassis Fan connector(s) (3 x 4 -pin)1 x AIO_PUMP connector (1 x 4 -pin)2 x Aura RGB Strip Header1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 2.0 x 4 mode)1 x SPI TPM header6 x SATA 6Gb/s connector(s)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x System panel(s)1 x Clear CMOS jumper(s)1 x COM port header Accessories User's manualI/O Shield2 x SATA 6Gb/s cable(s)1 x M.2 Screw Package1 x Supporting DVD1 x TUF GAMING Sticker1 x TUF Certification card(s) BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Operating System Windows® 10 64-bitWindows® 7 64-bit *5 Form Factor ATX Form Factor12.0 inch x 9.6 inch (30.5 cm x 24.4 cm) Note *1 PCIE x16_2 will be unavailable when installing M.2 PCIE SSD in M.2_2 socket.PCIe x16_2 will run x2 when installing devices in PCIe x1_1 or PCIe x1_2 slots.PCIE x16_2 will run x4 when no devices installing in PCIE x1_1 and PCIE x1_2 slots.*2 The M.2 Socket shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed.*3 PCIe x16_2, PCIe x1_1, and PCIe x1_2 slots will be unavailable when installing M.2 PCIe SSD in M.2_2 socket.*4 Use a chassis with HD audio module in the front panel to support an 8-channel audio output.*5 Install an AMD Ryzen™ 2nd Generatione or Ryzen™ 1st Generation Processors to support Windows 7 64-bit operating system.

Budowa: ATX
Chipset: AMD B450
RAM: 4x DDR4 DIMM, dual PC4-35200U/?DDR4-4400 (OC), max. 128GB (UDIMM)
Sloty rozszerzeń: 1x PCIe 3.0 x16, 1x PCIe 2.0 x16 (x4), 3x PCIe 2.0 x1, 1x M.2/?M-Key (PCIe 3.0 x4/?SATA, 22110/?2280/?2260/?2242), 1x M.2/?M-Key (PCIe 2.0 x4, 2280/?2260/?2242)

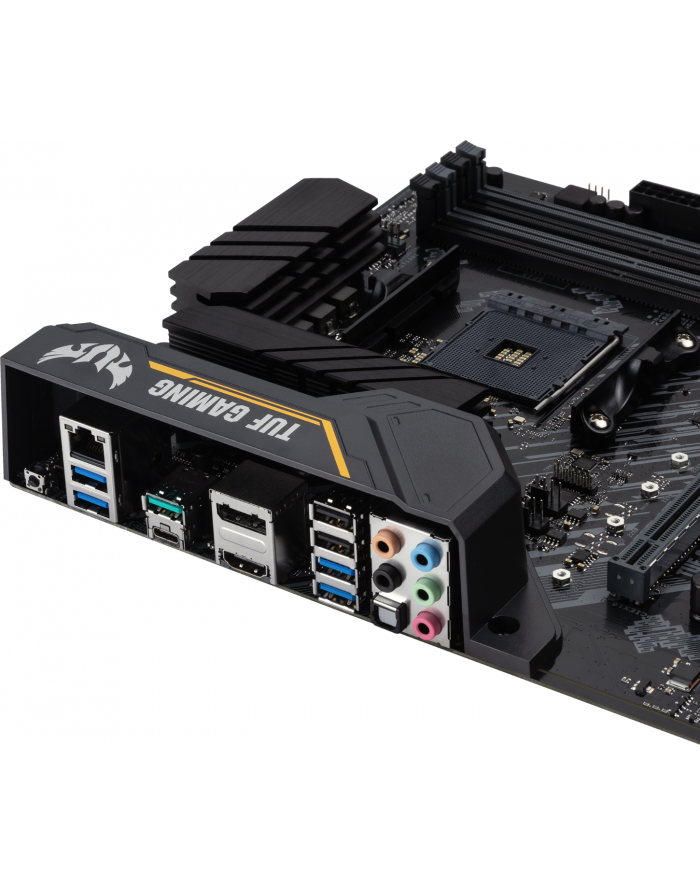

Złącza zewnętrzne: 1x HDMI 2.0b (iGPU), 1x DisplayPort 1.2 (iGPU), 1x USB-C 3.1 (B450), 1x USB-A 3.1 (B450), 4x USB-A 3.0, 2x USB-A 2.0, 1x Gb LAN (Realtek L8200A), 5x wtyczka jack, 1x Toslink
Złącza wewnętrzne: 1x USB 3.0 Header (2x USB 3.0), 2x USB 2.0 Header (4x USB 2.0), 4x SATA 6Gb/s (B450), 2x SATA 6Gb/s (CPU), 1x port szeregowy, 1x TPM-Header
Header Chłodzenie: 1x Wentylatory CPU 4-Pin, 3x wentylator 4-Pin, 1x Pompa AIO 4-Pin
Header Oświetlenie: 2x 4-Pin RGB (+12V/?G/?R/?B, max. 3A)
Przyciski/przełączniki: USB BIOS Flashback (zewn.)
Audio: 7.1 (Realtek ALC1200), DTS Custom Audio
Onboard-Grafika: iGPU
Wireless: brak
Poziom RAID: 0/?1/?10 (B450)
Multi GPU: AMD 2-Way-CrossFireX (x16/?x4)
Złącza zasilania: 1x 24-Pin ATX, 1x 8-Pin EPS12V
Oświetlenie: RGB, 1 Zone (strona prawo)
BIOS: 1x 32MB (256Mb)
Cechy szczególne: Audio+solid capacitors, obsługa ECC
Gwarancja: trzy lata (realizacja przez sklep)


Budowa: ATX
Chipset: AMD B450
RAM: 4x DDR4 DIMM, dual PC4-35200U/?DDR4-4400 (OC), max. 128GB (UDIMM)
Sloty rozszerzeń: 1x PCIe 3.0 x16, 1x PCIe 2.0 x16 (x4), 3x PCIe 2.0 x1, 1x M.2/?M-Key (PCIe 3.0 x4/?SATA, 22110/?2280/?2260/?2242), 1x M.2/?M-Key (PCIe 2.0 x4, 2280/?2260/?2242)
Złącza zewnętrzne: 1x HDMI 2.0b (iGPU), 1x DisplayPort 1.2 (iGPU), 1x USB-C 3.1 (B450), 1x USB-A 3.1 (B450), 4x USB-A 3.0, 2x USB-A 2.0, 1x Gb LAN (Realtek L8200A), 5x wtyczka jack, 1x Toslink
Złącza wewnętrzne: 1x USB 3.0 Header (2x USB 3.0), 2x USB 2.0 Header (4x USB 2.0), 4x SATA 6Gb/s (B450), 2x SATA 6Gb/s (CPU), 1x port szeregowy, 1x TPM-Header
Header Chłodzenie: 1x Wentylatory CPU 4-Pin, 3x wentylator 4-Pin, 1x Pompa AIO 4-Pin
Header Oświetlenie: 2x 4-Pin RGB (+12V/?G/?R/?B, max. 3A)
Przyciski/przełączniki: USB BIOS Flashback (zewn.)
Audio: 7.1 (Realtek ALC1200), DTS Custom Audio
Onboard-Grafika: iGPU
Wireless: brak
Poziom RAID: 0/?1/?10 (B450)
Multi GPU: AMD 2-Way-CrossFireX (x16/?x4)
Złącza zasilania: 1x 24-Pin ATX, 1x 8-Pin EPS12V
Oświetlenie: RGB, 1 Zone (strona prawo)
BIOS: 1x 32MB (256Mb)
Cechy szczególne: Audio+solid capacitors, obsługa ECC
Gwarancja: trzy lata (realizacja przez sklep)


ASUS TUF GAMING B450-PLUS II. Producent procesora: AMD, Gniazdo procesora: Socket AM4, Procesor: 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd.... Obsługiwane rodzaje pamięci: DDR4-SDRAM, Maksymalna pojemność pamięci: 128 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2,SATA, Obsługiwane rodzaje dysków: HDD & SSD. Obsługa przetwarzania równoległego: CrossFireX. Wersja HDMI: 2.0b, Obsługiwany typ USB: USB Typu-A, USB Type-C
