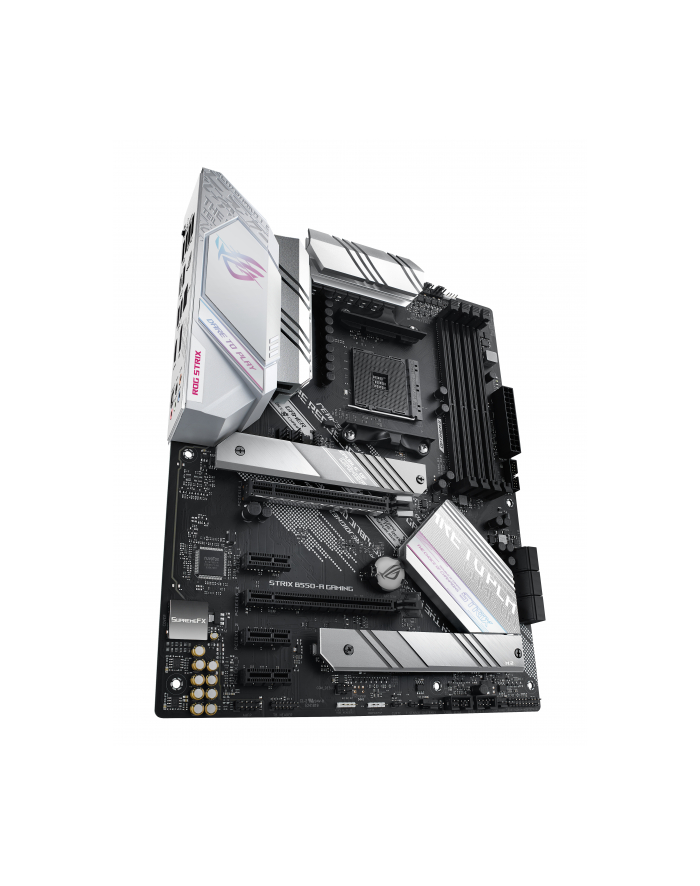

ASUS ROG STRIX B550-A GAMING AM4 B550 USB3.2 M.2 SATA MB

Format:ATX; Chipset:AMD B550, AMD; Socket:Socket AM4; Motherboard memory module type:DDR4; RAID support:0, 1, 10; PCI express 16x:2ROG STRIX B550-A GAMINGAMD B550 Ryzen AM4 Gaming ATX motherboard with PCIe 4.0, teamed power stages, Intel 2.5Gb Ethernet, dual M.2 with heatsinks, SATA 6 Gbps, USB 3.2 Gen 2 and Aura Sync RGBAMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop ProcessorsBest gaming connectivity: PCIe 4.0-ready, dual M.2, USB 3.2 Gen 2 Type-C plus HDMI™ 2.1 and DisplayPort 1.2 output supportSmooth networking: Intel 2.5Gb Ethernet with ASUS LANGuardRobust power solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitorsRenowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking make it easy to configure gaming buildsDIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlotUnmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB header and addressable Gen 2 RGB headerIndustry-leading gaming audio: AI Noise-Canceling Microphone, SupremeFX S1220A codec, DTS Sound Unbound™ and Sonic Studio III for immersive audioTECHNICAL SPECIFICATIONSCPU* Refer to www.asus.com for CPU support listAMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors ChipsetAMD B550 Memory4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered MemoryDual Channel Memory ArchitectureOptiMem IIECC Memory (ECC mode) support varies by CPU.* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).AMD RyzenTM 4000 G-Series Processors GraphicIntegrated Graphics Processor1 x DisplayPort 1.21 x HDMI 2.1(4K@60HZ)*Graphics specifications may vary between CPU types. Multi-GPU SupportSupports AMD 2-Way CrossFireX Technology Expansion Slots1 x PCIe 4.0 x16 (x16 mode)AMD B550 Chipset1 x PCIe 3.0 x16 (x4 mode) *3 x PCIe 3.0 x11 x PCIe 3.0 x16 (x16 mode)AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors StorageTotal supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports3rd Gen AMD Ryzen™ Processors:1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors:1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*AMD B550 Chipset:1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)6 x SATA 6Gb/s port(s),Support Raid 0, 1, 10 LANIntel I225-V 2.5Gb EthernetASUS LANGuard AudioROG SupremeFX 8-Channel High Definition Audio CODEC S1220A- Dual OP Amplifiers- Impedance sense for front and rear headphone outputs- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input- Supports up to 32-Bit/192kHz playback *Audio Feature:- SupremeFX Shielding™ Technology- Gold-plated jacks- Optical S/PDIF in port(s) at back panel- Audio Shielding- Premium Japanese audio capacitors- Audio Cover* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. USB PortsRear USB Port (Total 8)2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C)4 x USB 3.2 Gen 1 port(s)(4 x Type-A)2 x USB 2.0 port(s)Front USB Port (Total 6)2 x USB 3.2 Gen 1 port(s)4 x USB 2.0 port(s) Software FeaturesROG Exclusive Software- RAMCache III- ROG CPU-Z- GameFirst VI- Sonic Studio III + Sonic Studio Virtual Mixer- Sonic Radar III- DTS Sound Unbound- Overwolf- Anti-virus softwareASUS Exclusive Software FeaturesArmoury Crate- Aura Creator- Aura Sync- AI Noise Cancelling MicrophoneAI Suite 3:- PPSUEPUDIGI+ VRMFan Xpert 4TurboV EVO- EZ updateWinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode ASUS Special FeaturesAura Sync- Standard RGB header(s)- Addressable Gen 2 RGB header(s)ASUS Q-Design- ASUS Q-DIMM- ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)- ASUS Q-SlotASUS Thermal Solution- Aluminum M.2 heatsinkASUS EZ DIY-BIOS FlashBack™ button-BIOS FlashBack™ LED-Clear CMOS header-ProCool-Pre-mounted I/O shield- SafeSlot Back I/O Ports1 x Intel I225-V 2.5Gb Ethernet1 x DisplayPort1 x HDMI2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C)4 x USB 3.2 Gen 12 x USB 2.01 x Optical S/PDIF out1 x BIOS FlashBack™ Button(s)5 x Gold-plated audio jacks Internal I/O Ports1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)3 x Chassis Fan connector(s)1 x AIO_PUMP connector1 x AAFP connector2 x Aura RGB Strip Header(s)1 x Addressable Gen 2 header(s)1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)6 x SATA 6Gb/s connector(s)1 x Thunderbolt header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x 4-pin ATX 12V Power connector(s)1 x System panel(s)1 x Thermal sensor connector(s)1 x Clear CMOS jumper(s) AccessoriesUserqqq1s manual4 x SATA 6Gb/s cable(s)1 x Supporting DVD1 x ROG Strix stickers1 x Cable ties pack(s)1 x Extension cable for Addressable LED1 x ROG Thank you card1 x M.2 SSD screw package(s)1 x M.2 Rubber Package(s) BIOS256 Mb Flash ROM, UEFI AMI BIOS ManageabilityWOL by PME, PXE Operating SystemWindows 10 64-bit Form FactorATX Form Factor12 inch x 9.6 inch (30.5 cm x 24.4 cm) Note* Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3* When the M.2_2 Socket 3 is populated , SATA6G_5/6 ports will be disabled.

Budowa: ATX
Chipset: AMD B550
VRM: 4 rzeczywistych faz (4+1), 14 wirtualnych faz (12+2), ASP1106 (RT8877C, max. 6 Phasen)
MOSFETs CPU: 12x 50A SIC639
MOSFETs SoC: 2x 50A SIC639
RAM: 4x DDR4 DIMM, dual PC4-40800U/?DDR4-5100 (OC), max. 128GB (UDIMM)
Sloty rozszerzeń: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4), 3x PCIe 3.0 x1, 1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 22110/?2280/?2260/?2242), 1x M.2/?M-Key (PCIe 3.0 x4/?SATA, 22110/?2280/?2260/?2242)
Złącza zewnętrzne: 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.2 (iGPU), 1x USB-C 3.1 (B550), 1x USB-A 3.1 (B550), 4x USB-A 3.0, 2x USB-A 2.0, 1x 2.5GBase-T (Intel I225-V), 5x wtyczka jack, 1x Toslink
Złącza wewnętrzne: 1x USB 3.0 Header (2x USB 3.0), 2x USB 2.0 Header (4x USB 2.0), 6x SATA 6Gb/s (B550), 1x Thunderbolt-Header 13-Pin
Header Chłodzenie: 2x Wentylatory CPU 4-Pin, 3x wentylator 4-Pin, 1x Pompa AIO 4-Pin, 1x Thermal-czujnik
Header Oświetlenie: 2x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 1x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A, ASUS Gen2)
Przyciski/przełączniki: USB BIOS Flashback (zewn.)
Audio: 7.1 (Realtek ALC1220/?ASUS SupremeFX), DTS Sound Unbound
Onboard-Grafika: iGPU
Wireless: brak
Poziom RAID: 0/?1/?10 (B550)
Multi GPU: AMD 2-Way-CrossFireX (x16/?x4)
Złącza zasilania: 1x 24-Pin ATX, 1x 8-Pin EPS12V, 1x 4-Pin ATX12V
Oświetlenie: RGB, 1 Zone (I/?O-przykrycie)
BIOS: 1x 32MB (256Mb)
Cechy szczególne: Audio+solid capacitors, dioda diagnostyczna (LED-wskaźniki), I/?O-zaślepka zintegrowany, 2x pasywne chłodzenie M.2, obsługa ECC
Gwarancja: trzy lata (realizacja przez sklep)
Ostatnia aktualizacja ceny: -


Budowa: ATX
Chipset: AMD B550
VRM: 4 rzeczywistych faz (4+1), 14 wirtualnych faz (12+2), ASP1106 (RT8877C, max. 6 Phasen)
MOSFETs CPU: 12x 50A SIC639
MOSFETs SoC: 2x 50A SIC639
RAM: 4x DDR4 DIMM, dual PC4-40800U/?DDR4-5100 (OC), max. 128GB (UDIMM)
Sloty rozszerzeń: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4), 3x PCIe 3.0 x1, 1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 22110/?2280/?2260/?2242), 1x M.2/?M-Key (PCIe 3.0 x4/?SATA, 22110/?2280/?2260/?2242)
Złącza zewnętrzne: 1x HDMI 2.1 (iGPU), 1x DisplayPort 1.2 (iGPU), 1x USB-C 3.1 (B550), 1x USB-A 3.1 (B550), 4x USB-A 3.0, 2x USB-A 2.0, 1x 2.5GBase-T (Intel I225-V), 5x wtyczka jack, 1x Toslink
Złącza wewnętrzne: 1x USB 3.0 Header (2x USB 3.0), 2x USB 2.0 Header (4x USB 2.0), 6x SATA 6Gb/s (B550), 1x Thunderbolt-Header 13-Pin
Header Chłodzenie: 2x Wentylatory CPU 4-Pin, 3x wentylator 4-Pin, 1x Pompa AIO 4-Pin, 1x Thermal-czujnik
Header Oświetlenie: 2x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 1x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A, ASUS Gen2)
Przyciski/przełączniki: USB BIOS Flashback (zewn.)
Audio: 7.1 (Realtek ALC1220/?ASUS SupremeFX), DTS Sound Unbound
Onboard-Grafika: iGPU
Wireless: brak
Poziom RAID: 0/?1/?10 (B550)
Multi GPU: AMD 2-Way-CrossFireX (x16/?x4)
Złącza zasilania: 1x 24-Pin ATX, 1x 8-Pin EPS12V, 1x 4-Pin ATX12V
Oświetlenie: RGB, 1 Zone (I/?O-przykrycie)
BIOS: 1x 32MB (256Mb)
Cechy szczególne: Audio+solid capacitors, dioda diagnostyczna (LED-wskaźniki), I/?O-zaślepka zintegrowany, 2x pasywne chłodzenie M.2, obsługa ECC
Gwarancja: trzy lata (realizacja przez sklep)
Ostatnia aktualizacja ceny: -


ASUS ROG STRIX B550-A GAMING. Producent procesora: AMD, Procesor: AMD Ryzen™ 3. Obsługiwane rodzaje pamięci: DDR4-SDRAM, Maksymalna pojemność pamięci: 128 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: PCI Express 3.0. Rodzaj płyty: ATX, Rodzina płyt z chipsetami: AMD, Układ płyty głównej: AMD B550. Typ BIOS: UEFI, Rozmiar pamięci BIOS: 256 Mbit
