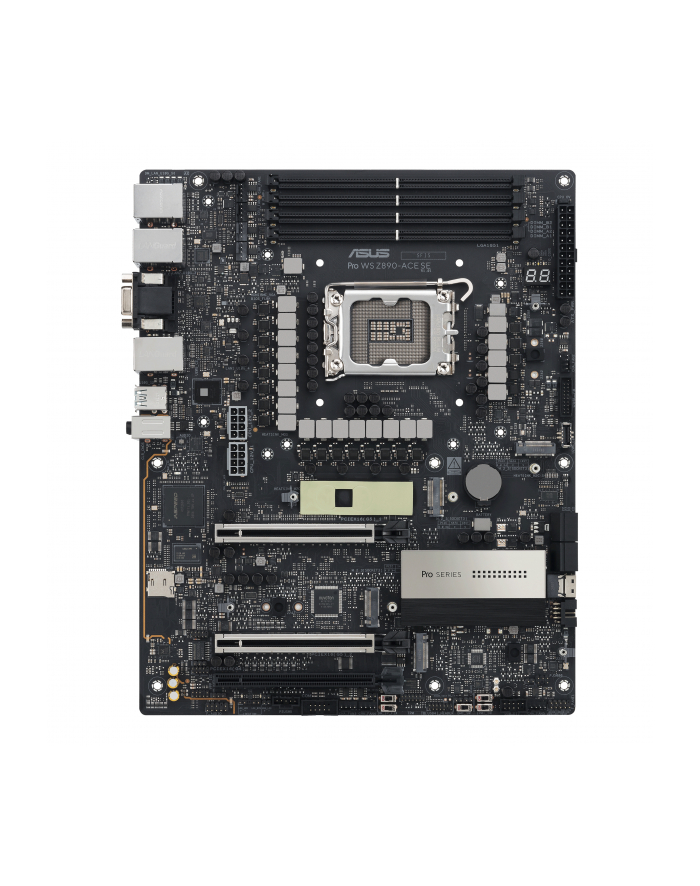

Asus PRO WS Z890-ACE SE (90MB1JC0M0EAY0)

Format:ATX; Chipset:Intel Z890; Socket:Socket 1851; Motherboard memory module type:DDR5; RAID support:0, 1, 5, 10; PCI express 16x:3; COM portIntel Pro WS Z890-ACE SEIntel Z890 LGA1851 ATX workstation motherboard with PCIe 5.0, DDR5 support, 10Gb & 2.5Gb Ethernet, four M.2 slots, plus a USB 20Gpbs front-panel connector and onboard BMC.Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applicationsIntel LGA1851 socket:  Ready for Intel Core™ Ultra 9, 7, and 5 desktop processorsRobust performance: 16+2+1+2 teamed power stages, ProCool II power connectors, high-quality alloy chokes and durable capacitorsFuture-proofed connectivity: Thunderbolt™ 4, 10Gb & 2.5Gb Ethernet, two PCIe 5.0 PCIe slots with full support for next-gen graphics cards, one PCIe 5.0 M.2 and three PCIe 4.0 M.2 slots and a USB 20Gbps front-panel headerExclusive AI and overclocking technologies: AI Overclocking, AI Cooling II, AI Advisor and NPU boostDIY-friendly design: PCIe Slot Q-Release Slim with SafeSlot, M.2 Q-Latch, BIOS FlashBack™, Q-ConnectorServer-grade IPMI remote management and onboard BMC: Hardware- and software-level management with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and managementCPUSupports Intel Core™ Ultra Processors (Series 2) , LGA1851Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*** Refer to https://www.asus.com/support/download-center/ for CPU support list.** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.ChipsetIntel Z890 ChipsetMemory4 x DIMM slots, max. 256GB, DDR5Support up to 9066+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM)*Dual channel memory architectureSupports DIMM FitSupports DIMM FlexSupports Intel Extreme Memory Profile (XMP) memory moduleASUS Enhanced Memory Profile III (AEMP III)* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.* *Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.Graphics1 x HDMI™ port**1 x Intel Thunderbolt™ 4 port (USB Type-C) support DisplayPort and Thunderbolt™ video outputs***1 x VGA port from AST2600* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.**Supports 4K@60Hz as specified in HDMI 2.1.***In ThunderboltTM  4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20.**** VGA resolution support depends on processorsqqq1 or graphic cardsqqq1 resolution.******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.Expansion SlotsExpansion Slots Intel Core™ Ultra Processors (Series 2)*2 x PCIe 5.0 x16 slots*** (supports x16 or x8/x8 modes)**Intel Z890 Chipset**1 x PCIe 4.0 x16 slot (supports x4 mode)**** Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.StorageTotal supports 4 x M.2 slots and 8 x SATA 6Gb/s ports*Intel Core™ Ultra Processors (Series 2)M.2_1 slot (Key M), type 2260/2280  (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe4.0 x4 mode)Intel Z890 Chipset**M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)SlimSAS_1 slot supports PCIe 4.0 x4 mode or up to 4 SATA devices via a transfer cable. The cable is purchased separately. **4 x SATA 6Gb/s ports* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.**SlimSAS port connected to a U.2 device via a transfer cable does not support VMD/RST.Ethernet1 x Marvell AQtion 10Gb Ethernet1 x Intel 2.5Gb Ethernet1 x Realtek 1Gb Ethernet dedicated for AST2600USBRear USB (Total 8 ports)1 x Thunderbolt™ 4 port (1 x USB Type-C)1 x USB 20Gbps port (1 x USB Type-C)6 x USB 10Gbps ports (6 x Type-A)Front USB (Total 7 ports)1 x USB 20Gbps connector (supports USB Type-C)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers supports 4 additional USB 2.0 portsAudioAudioqqq1qqq1Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*- Impedance sense for front and rear headphone outputs- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)- Supports up to 32-Bit/192 kHz playback*qqq1qqq1Audio Features- Audio Shielding- Premium audio capacitorsBack Panel I/O PortsBack Panel I/O Ports 1 x Thunderbolt™ 4 USB Type-C port1 x USB 20Gbps port (1 x USB Type-C)6 x USB 10Gbps ports (6 x Type-A)1 x HDMI™ port1 x Marvell AQtion 10Gb Ethernet port1 x Intel 2.5Gb Ethernet port1 x Realtek 1Gb Ethernet dedicated for AST26002 x Audio jacks1 x BIOS FlashBack™ button1 x Clear CMOS buttonInternal I/O Connectors1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header5 x 4-pin Chassis Fan headers1 x W_PUMP+ headerPower Related1 x 24-pin Main Power connector2 x 8-pin +12V CPU Power connectorStorage Related4 x M.2 slots (Key M)4 x SATA 6Gb/s ports1 x SlimSAS portUSB1 x USB 20Gbps connector (supports USB Type-C )1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 header supports 4 additional USB 2.0 portsMiscellaneous1 x Chassis Intrusion header1 x COM Port header1 x CPU Over voltage jumper1 x Front Panel Audio header (F_AUDIO)1 x 10-1 pin Front System Panel header1 x Thermal Sensor header1 x Thunderbolt™ (USB4) headerSpecial FeaturesASUS 5X PROTECTION III- DIGI+ VRM (- Digital power design with DrMOS)- ESD Guards- LANGuard- Overvoltage protection- SafeSlot Core+- Stainless-steel back I/OASUS Q-Design- M.2 Q-Latch- Q-Release Slim (with PCIe SafeSlot)- Q-Code- Q-Connector- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- Clear CMOS button- CPU Socket lever protector- ProCool II- SafeSlot- SafeDIMMBespoke Motherboard Design & Business Focused Features- 24/7 reliability- Overcurrent protectionSoftware FeaturesASUS Exclusive SoftwareArmoury Crate- Fan Xpert 4- Power SavingASUS DriverHubTurboV CoreASUS CPU-ZAdobe Creative Cloud (Free Trial)Norton 360 Deluxe (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSAI Overclocking GuideASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash  - ASUS MyHotkeyNPU BoostRemote Management FeaturesIT Management software supported- ASUS Control Center Express(ACCE)BMC Related1 x BMC switch1 x BMC debug UART header1 x BMC LAN fixed IP switch1 x IPMI switch1 x Message LED header1 x microSD card socket1 x Location LED header1 x Location button header1 x PSU_SMB header1 x SMART_PSU switch1 x VGA switch1 x VPP_I2C headerBMC LED Design- 1 x BMC LEDBIOS256 Mb Flash ROM UEFI AMI BIOS(text-based)ManageabilityWOL by PME, PXEAccessoriesCables2 x SATA 6Gb/s cablesMiscellaneous1 x AMI license sticker1 x I/O shield2 x M.2 Q-Latch packages2 x M.2 rubber packages1 x Q-connectorDocumentation1 x ACC Express activation key card1 x Quick start guideOperating SystemWindows 11  (22H2 & later), Windows 10 64-bit(21H2 & later)Form FactorATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

ASUS PRO WS Z890-ACE SE. Producent procesora: Intel, Gniazdo procesora: LGA 1851 (Socket V1), Procesor: Intel Core Ultra (Series 2). Obsługiwane rodzaje pamięci: DDR5-SDRAM, Maksymalna pojemność pamięci: 256 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2, PCI Express 5.0, SATA III, Obsługiwane rodzaje dysków: HDD & SSD, Poziomy raid: 0, 1, 5, 10. Rodzaj interfejsu sieci Ethernet: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet. Przeznaczenie: PC, Rodzaj płyty: ATX, Rodzina płyt z chipsetami: Intel
