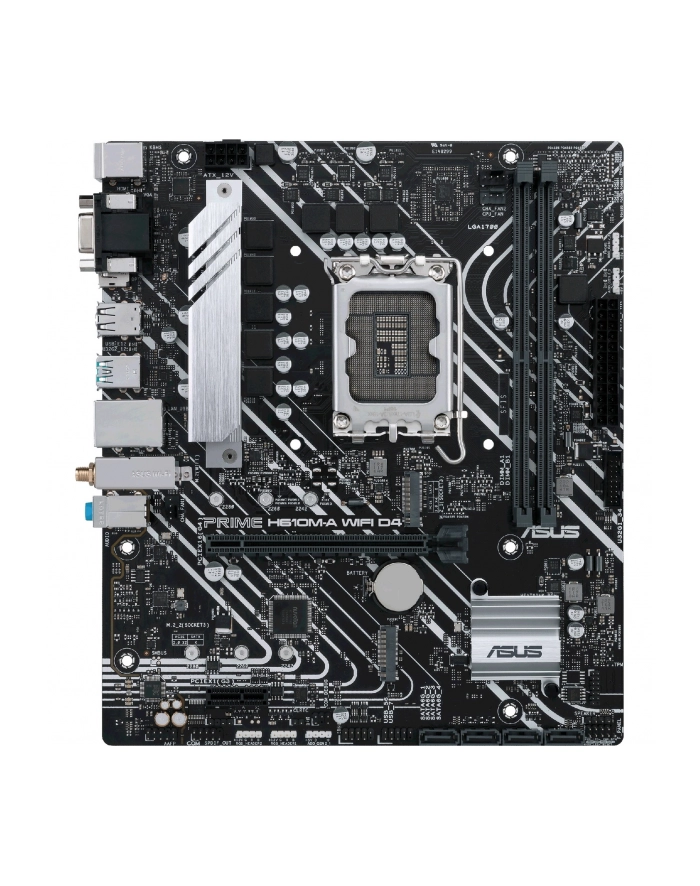

ASUS PRIME H610M-A WIFI D4 LGA1700 H610 M.2 DP HDMI WIFI5 AURA MB

PRIME H610M-A WIFI D4 Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, dual M.2 slots, Intel® 1 Gb Ethernet, WIFI 5, DisplayPort, HDMI®, D-Sub, USB 3.2 Gen 2 ports, SATA 6 Gbps, Addressable Gen 2 headers, and Arua Sync Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+ Ultrafast connectivity: 32Gbps M.2 slot, Intel® 1 Gb Ethernet, WIFI 5 and USB 3.2 Gen 2 ports Aura Sync RGB: Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware CPU Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*** Refer to www.asus.com for CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® H610 Chipset Memory 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)*Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. Graphics 1 x DisplayPort**1 x D-Sub port1 x HDMI® port**** Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.** Supports max. 4K@60Hz as specified in DisplayPort 1.4.*** Supports 4K@60Hz as specified in HDMI 2.1. Expansion Slots Intel® 12th Gen Processors1 x PCIe 4.0 x16 slotIntel® H610 Chipset1 x PCIe 3.0 x1 slot Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s portsIntel® H610 ChipsetM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)4 x SATA 6Gb/s ports Ethernet 1 x Intel® 1Gb Ethernet Wireless & Bluetooth Wi-Fi 5Wi-Fi 5 (802.11 a/b/g/n/ac)Supports 2.4/5GHz frequency bandBluetooth v5.0 USB Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A)Front USB (Total 5 ports)1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 3 USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)1 x DisplayPort1 x HDMI® port1 x D-Sub port1 x Wi-Fi Module1 x Intel® 1Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard (purple) port1 x PS/2 Mouse (green) port Internal I/O Connectors Fan and Cooling related1 x 4-pin CPU Fan header2 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 3 USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers2 x AURA RGB headers1 x Clear CMOS header1 x Front Panel Audio header (AAFP)1 x COM Port header1 x S/PDIF Out header1 x Speaker header1 x SPI TPM header (14-1pin)1 x 10-1 pin System Panel header Special Features ASUS 5X PROTECTION III- DIGI+ VRM- LANGuard- Overvoltage Protection- SafeSlot Core- Stainless-Steel Back I/OASUS Q-Design- Q-DIMM- Q-SlotASUS Thermal Solution- VRM heatsink designAURA Sync- AURA RGB headers- Addressable Gen 2 headers Software Features ASUS Exclusive SoftwareArmoury Crate- AURA Creator- AURA Sync- Fan Xpert 2+AI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDIGI+ VRMASUS CPU-ZMyASUSNorton Anti-virus software (Free Trial version)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables2 x SATA 6Gb/s cablesMiscellaneous1 x ASUS Wi-Fi moving antennas1 x I/O Shield1 x M.2 SSD screw packageInstallation Media1 x Support DVDDocumentation1 x User guide Operating System Windows® 11 64-bit, Windows® 10 64-bit Form Factor mATX Form Factor9.6 inch x 8.3 inch ( 24.4 cm x 21.1 cm )

Płyta główna ASUS PRIME H610M-A WIFI D4 oparta jest na chipsecie Intel® H610 i obsługuje procesory Intel® z gniazdem 1700. Posiada dwa gniazda DDR4 DIMM w trybie dwukanałowym, zapewniające do 64 GB pamięci RAM. Dodatkowe funkcje płyty ASUS PRIME H610M-A WIFI D4 obejmują jedno gniazdo PCIe 4.0 x16 i jedno gniazdo PCIe 3.0 x1. Ponadto, ASUS PRIME H610M-A WIFI D4 oferuje 8-kanałowy dźwięk, interfejs Gigabit LAN, cztery porty SATA3, dwa gniazda M.2, Wi-Fi 5, Bluetooth 5.0 oraz szereg portów USB.


Typ płyty głównej
Numer EAN 4711081758211
Numer producenta 90MB1C80-M0EAY0
Baza 1700
Maksymalna obsługiwana liczba procesorów: 1
Obsługa systemu operacyjnego: Windows 10, Windows 11
Obsługiwane modele procesorów Core i3 12xxx (Alder Lake), Core i3 12xxxT (Alder Lake), Core i3 12xxxF (Alder Lake), Core i3 13xxx (Raptor Lake), Core i3 13xxxF (Raptor Lake), Core i3 13xxxT (Raptor Lake), Core i3 14xxx (Raptor Lake-S), Core i3 14xxxF (Raptor Lake-S), Core i3 14xxxT (Raptor Lake-S), Core i5 12xxx (Alder Lake), Core i5 12xxxK (Alder Lake), Core i5 12xxxKF (Alder Lake), Core i5 12xxxT (Alder Lake), Core i5 12xxxF (Alder Lake), Core i5 13xxx (Raptor Lake), Core i5 13xxxF (Raptor Lake), Core i5 13xxxT (Raptor Lake), Core i5 13xxxK (Raptor Lake), Core i5 13xxxKF (Raptor Lake), Core i5 14xxxK (Raptor Lake-S), Core i5 14xxxKF (Raptor Lake-S), Core i7 12xxx (Alder Lake), Core i7 12xxxK (Alder Lake), Core i7 12xxxKF (Alder Lake), Core i7 12xxxT (Alder Lake), Core i7 12xxxF (Alder Lake), Core i7 13xxx (Raptor Lake), Core i7 13xxxF (Raptor Lake), Core i7 13xxxT (Raptor Lake), Core i7 13xxxK (Raptor Lake), Core i7 13xxxKF (Raptor Lake), Core i7 14xxxK (Raptor Lake-S), Core i7 14xxxKF (Raptor Lake-S), Core i9 12xxx (Alder Lake), Core i9 12xxxK (Alder Lake), Core i9 12xxxKF (Alder Lake), Core i9 12xxxT (Alder Lake), Core i9 12xxxF (Alder Lake), Core i9 12xxxKS (Alder Lake), Core i9 13xxx (Raptor Lake), Core i9 13xxxF (Raptor Lake), Core i9 13xxxT (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxKF (Raptor Lake), Core i9 13xxxKS (Raptor Lake), Core i9 14xxxK (Raptor Lake-S), Core i9 14xxxKF (Raptor Lake-S), Pentium Gold Gxxxx (Alder Lake), Celeron Gxxxx (Alder Lake)
Chipset Intel® H610
Gniazda PCIe x16: 1x (w tym: 1x PCIe x16)
Wi-Fi 5, Bluetooth 5.0
BIOS 128 Mbit UEFI AMI BIOS
Współczynnik kształtu µATX
Korzystanie z komputera
Zasilacz ATX12V (24-pinowy + 8-pinowy + 4-pinowy)
Maksymalna pojemność pamięci masowej 64 GB
Połączenia zewnętrzne: Klawiatura (PS/2) 1
Połączenia wewnętrzne: SATA 4
Porty (opcjonalnie) USB 3.2 Gen 1 (5 Gbit/s) 2
Standard RGB AURA Sync
Kontroler Intel® H610 SATA
Kontroler USB Intel® H610
Wbudowana karta graficzna: Porty graficzne płyty głównej są dostępne wyłącznie w przypadku używania procesora ze zintegrowanym układem graficznym.
Dźwięk Realtek 7.1 Surround Sound Kodek audio wysokiej rozdzielczości
Intel® GbE LAN
Dodatkowe informacje: Aby obsługiwać najnowsze rdzenie procesora, może być konieczna aktualizacja systemu BIOS.
Dołączone akcesoria: 2 kable SATA 6 Gb/s, 1 osłona I/O, 1 śrubka M.2 SSD, 1 płyta DVD z pomocą techniczną, 1 instrukcja obsługi
Wymiary: Szerokość: 244 mm x Wysokość: 244 mm
