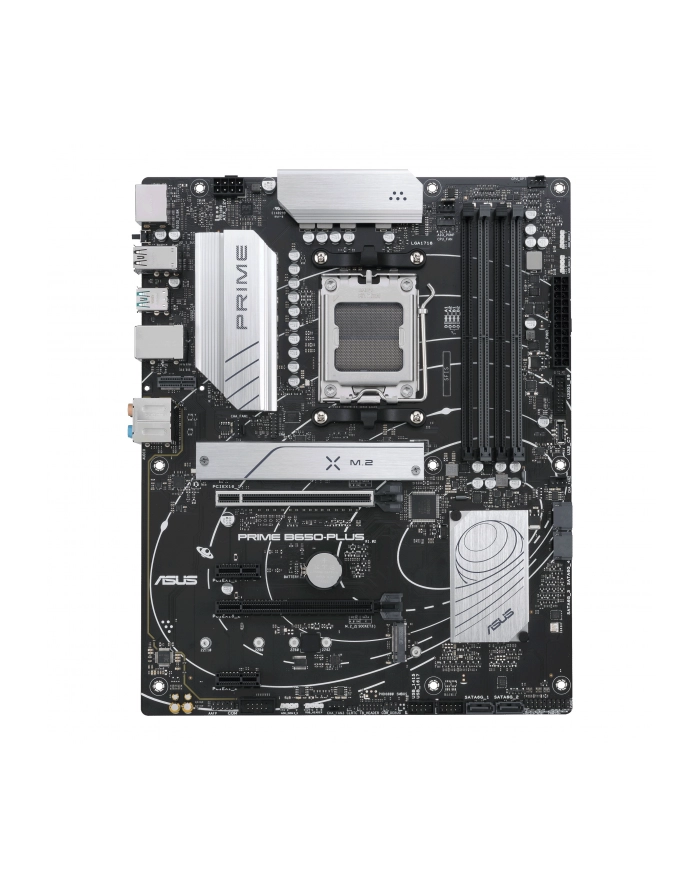

ASUS PRIME B650-PLUS-CSM (90MB1BS0M0EAYC)

Format:ATX; Chipset:AMD B650; Socket:Socket AM5 (LGA 1718); Motherboard memory module type:DDR5; RAID support:0, 1, 10; PCI express 16x:2; COM portPRIME B650-PLUS-CSMAMD B650 ATX motherboard with DDR5, PCIe 5.0 M.2 support, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, SATA 6 Gbps, USB 3.2 Gen 2 Type-C, front USB 3.2 Gen 1 Type-C, BIOS FlashBack™, USB4 Support and Arua Sync supportAMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop ProcessorsUltrafast Connectivity: M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 Type-C, front USB 3.2 Gen 1 Type-C, USB4 SupportASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclockingComprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardwareASUS Control Center Express (ACCE) for easier IT endpoint managementCPUAMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors** Refer to www.asus.com for CPU support list.ChipsetAMD B650 ChipsetMemory4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports AMD Extended Profiles for Overclocking (EXPO™)OptiMem II* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.Graphics1 x DisplayPort**1 x HDMI port**** Graphics specifications may vary between CPU types.** Supports max. 8K@60Hz as specified in DisplayPort 1.4.*** Supports 4K@60Hz as specified in HDMI 2.1.Expansion SlotsAMD Ryzen™ 7000 Series Desktop Processors1 x PCIe 4.0 x16 slot (supports x16 mode)AMD B650 Chipset1 x PCIe 4.0 x16 slot (support x4 mode)2 x PCIe 4.0 x1 slots* Please check the PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/.StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*AMD Ryzen™ 7000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)AMD B650 Chipset4 x SATA 6Gb/s ports* AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.Ethernet1 x Realtek 2.5Gb EthernetWireless & BluetoothVertical M.2 slot only (Key E, PCIe)** Wi-Fi module is sold separately.USBRear USB (Total 8 ports)4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C)2 x USB 3.2 Gen 1 ports (2 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB (Total 7 ports)1 x USB 3.2 Gen 1 connector (supports USB Type-C)1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 portsAudioRealtek 7.1 Surround Sound High Definition Audio CODEC- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layersBack Panel I/O Ports4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C)2 x USB 3.2 Gen 1 ports (2 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x HDMI port1 x Vertical M.2 slot (Key E)1 x Realtek 2.5Gb Ethernet port5 x Audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack™ buttonInternal I/O ConnectorsFan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header3 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 connector (supports USB Type-C )1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Aura RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x SPI TPM header (14-1pin)1 x 20-3 pin System Panel header with Chassis intrude function1 x Thunderbolt™ (USB4) headerSpecial FeaturesASUS 5X PROTECTION III- DIGI+ VRM- LANGuard- Overvoltage Protection- Safeslot Core+- Stainless-Steel Back I/OASUS Q-Design- Q-DIMM- Q-LED Core- Q-SlotASUS Thermal Solution- Flexible M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- ProCoolAura Sync- Aura RGB header- Addressable Gen 2 headersSoftware FeaturesASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- Fan Xpert 2+- Power SavingAI Suite 3- TurboV EVO- DIGI+ VRM- PC CleanerASUS CPU-ZIT Management software supported- ASUS Control Center Express(ACCE)Norton Anti-virus software (Free Trial version)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ ModeBIOS256 Mb Flash ROM, UEFI AMI BIOSManageabilityWOL by PME, PXEAccessoriesCables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x M.2 Rubber Package1 x Screw package for M.2 SSDDocumentation1 x ACC Express Activation Key Card1 x User guideOperating SystemWindows 11, Windows 10 64-bitForm FactorATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Das Mainboard ASUS PRIME B650-PLUS-CSM basiert auf dem AMD B650-Chipsatz und unterstützt AMD-Prozessoren für den Sockel AM5. Es verfügt über vier DDR5-DIMM-Slots im Dual-Channel-Betrieb für bis zu 192 GB Arbeitsspeicher. Zur weiteren Ausstattung des ASUS PRIME B650-PLUS-CSM gehören zwei PCIe-4.0 x16-Slots und zwei PCIe-4.0 x1-Slots. Außerdem verfügt das PRIME B650-PLUS-CSM über 8-Kanal-Sound, eine 2.5 Gigabit-LAN-Schnittstelle, vier SATA3-Anschlüsse, zwei M.2-Anschlüsse (1x mit PCIe 5.0-Unterstützung) und eine Reihe an USB-Schnittstellen.

Das Mainboard ASUS PRIME B650-PLUS-CSM basiert auf dem AMD B650-Chipsatz und unterstützt AMD-Prozessoren für den Sockel AM5. Es verfügt über vier DDR5-DIMM-Slots im Dual-Channel-Betrieb für bis zu 192 GB Arbeitsspeicher. Zur weiteren Ausstattung des ASUS PRIME B650-PLUS-CSM gehören zwei PCIe-4.0 x16-Slots und zwei PCIe-4.0 x1-Slots. Außerdem verfügt das PRIME B650-PLUS-CSM über 8-Kanal-Sound, eine 2.5 Gigabit-LAN-Schnittstelle, vier SATA3-Anschlüsse, zwei M.2-Anschlüsse (1x mit PCIe 5.0-Unterstützung) und eine Reihe an USB-Schnittstellen.

ASUS PRIME B650-PLUS-CSM. Producent procesora: AMD, Gniazdo procesora: Gniazdo AM5, Procesor: AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen. Obsługiwane rodzaje pamięci: DDR5-SDRAM, Maksymalna pojemność pamięci: 128 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2, SATA III, Obsługiwane rodzaje dysków: HDD & SSD, Poziomy raid: 0, 1, 10. Rodzaj interfejsu sieci Ethernet: 2.5 Gigabit Ethernet. Przeznaczenie: PC, Rodzaj płyty: ATX, Rodzina płyt z chipsetami: AMD

ASUS PRIME B650-PLUS-CSM. Producent procesora: AMD, Gniazdo procesora: Gniazdo AM5, Procesor: AMD Ryzen 7000 Series. Obsługiwane rodzaje pamięci: DDR5-SDRAM, Maksymalna pojemność pamięci: 128 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2, SATA III, Obsługiwane rodzaje dysków: HDD & SSD, Poziomy raid: 0, 1, 10. Rodzaj interfejsu sieci Ethernet: 2.5 Gigabit Ethernet. Przeznaczenie: PC, Rodzaj płyty: ATX, Rodzina płyt z chipsetami: AMD
