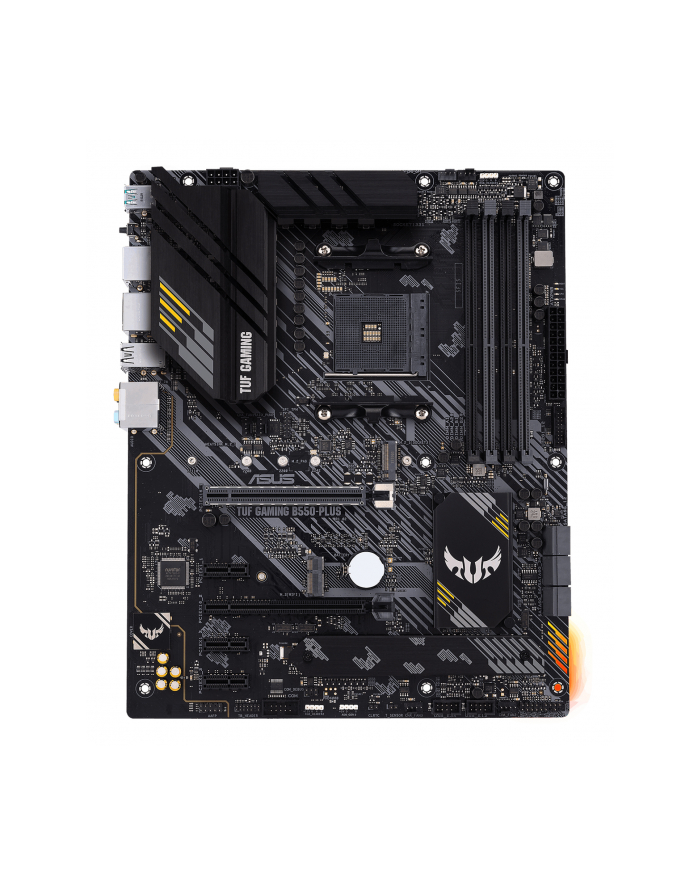

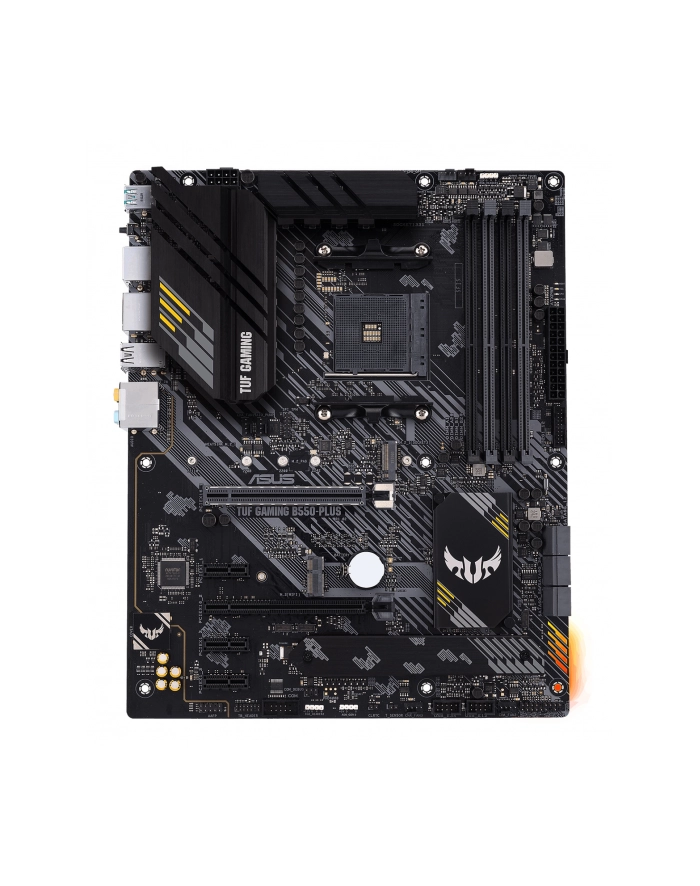

asus Płyta główna TUF GAMING B550-PLUS AM4 DDR4 HDMI/DP M.2 ATX

Format:ATX; Chipset:AMD B550, AMD; Socket:Socket AM4; Motherboard memory module type:DDR4; RAID support:0, 1, 10; PCI express 16x:2; COM portTUF GAMING B550-PLUSAMD B550 (Ryzen AM4) ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, and Aura Sync RGB lighting supportAMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ processorsEnhanced power solution: 8+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durabilityComprehensive cooling: VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utilityNext-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C supportMade for online gaming: 2.5 Gb Ethernet, M.2 slot (Key E) for Wi-Fi module, TUF LANGuard, and Turbo LAN technologyRealtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line inAI noise-canceling microphone: provides crystal-clear in-game voice communicationTECHNICAL SPECIFICATIONS CPUBuild in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors ** Refer to www.asus.com for CPU support list ChipsetAMD B550 Memory4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *Dual Channel Memory ArchitectureECC Memory (ECC mode) support varies by CPU.* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic1 x DisplayPort 1.4 **1 x HDMI 2.1(4K@60HZ)*Graphics specifications may vary between CPU types.**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. Multi-GPU SupportSupports AMD 2-Way CrossFireX Technology Expansion Slots3rd Gen AMD Ryzen™ Processors1 x PCIe 4.0 x16 (x16 mode)AMD B550 Chipset1 x PCIe 3.0 x16 (x4 mode)3 x PCIe 3.0 x1 *1* Support PCIe bifurcation for RAID on CPU function. StorageTotal supports 2 x M.2 slots and 6 x SATA 6Gb/s ports3rd Gen AMD Ryzen™ Processors :1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)AMD B550 Chipset :1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*26 x SATA 6Gb/s port(s),Support Raid 0, 1, 10 LANRealtek RTL8125B 2.5Gb EthernetTUF LANGuard Wireless Data NetworkM.2 slot only (Key E) (Support PCIe interface)**Wi-Fi module is sold separately. AudioRealtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playbackAudio Feature :- Exclusive DTS Custom for GAMING Headsets.- Optical S/PDIF out port(s) at back panel- Audio cover- Audio Shielding- Dedicated audio PCB layers- Premium Japanese audio capacitors- Unique de-pop circuit USB PortsRear USB Port ( Total 8 )2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C)4 x USB 3.2 Gen 1 port(s)( x Type-A)2 x USB 2.0 port(s)( x Type-A)Front USB Port ( Total 6 )2 x USB 3.2 Gen 1 port(s)(2 x Type-A)4 x USB 2.0 port(s)(4 x Type-A) Software FeaturesASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- AI Noise Cancelling MicrophoneAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDigi+ VRMFan Xpert 2+- EZ updateTUF GAMING CPU-ZAI ChargerASUS Turbo LANDAEMON ToolsDTS Custom for GAMING HeadsetsNorton Anti-virus software (Free Trial for 60 days)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode ASUS Special FeaturesASUS TUF PROTECTION- ASUS DIGI+ VRM (Digital power design with Dr. MOS)- ASUS Enhanced DRAM Overcurrent Protection- ASUS ESD Guards- TUF LANGuard- ASUS Overvoltage Protection- ASUS SafeSlot- ASUS Stainless-Steel Back I/OASUS Q-Design- ASUS Q-DIMM- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- ASUS Q-SlotASUS Thermal Solution- Aluminum M.2 heatsinkASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- ProcoolAURA Sync- Standard RGB headers- Addressable Gen 2 RGB header Back I/O Ports1 x DisplayPort1 x HDMI1 x LAN (2.5G) port(s)2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C)4 x USB 3.2 Gen 1 (blue) Type-A2 x USB 2.0 (one port can be switched to USB BIOS FlashBack™)1 x Optical S/PDIF out5 x Audio jack(s)1 x BIOS FlashBack™ Button(s) Internal I/O Ports1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)3 x Chassis Fan connector(s)1 x AIO_PUMP connector2 x Aura RGB Strip Headers1 x Addressable Gen 2 header(s)1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x M.2 with E key for Wi-Fi module1 x SPI TPM header6 x SATA 6Gb/s connector(s)1 x 24-pin EATX Power connector(s)1 x 8-pin EATX 12V Power connectors1 x Front panel audio connector(s) (AAFP)1 x Thermal sensor connector(s)1 x Clear CMOS jumper(s)1 x System panel connector1 x COM port header AccessoriesUserqqq1s manualI/O Shield2 x SATA 6Gb/s cable(s)1 x Supporting DVD1 x TUF Gaming Sticker1 x TUF Certification card(s)1 x M.2 SSD screw package(s)1 x M.2 Rubber Package(s) BIOS256 Mb Flash ROM, UEFI AMI BIOS ManageabilityWOL by PXE Operating SystemWindows 10 64-bit Form FactorATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Note*1 PCIE 3.0 X16_2 runs x1 mode when any of the PCIe 3.0 x1 slots is occupied.*2 M2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated, SATA6G_56 will be disabled.

Budowa: ATX
Chipset: AMD B550
CPU-Kompatybilność: Ryzen 4000G,
VRM: 10 wirtualnych faz (8+2)
MOSFETs CPU: 8x
MOSFETs SoC: 2x
RAM: 4x DDR4 DIMM, dual PC4-38400U/?DDR4-4800 (OC), max. 128GB (UDIMM)
Sloty rozszerzeń: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4), 3x PCIe 3.0 x1, 1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 22110/?2280/?2260/?2242), 1x M.2/?M-Key (PCIe 3.0 x4/?SATA, 22110/?2280/?2260/?2242), 1x M.2/?E-Key (PCIe)
Złącza zewnętrzne: 1x HDMI 2.1, 1x DisplayPort 1.4, 1x USB-C 3.1 (B550), 1x USB-A 3.1 (B550), 4x USB-A 3.0, 2x USB-A 2.0, 1x 2.5GBase-T (Realtek RTL8125B-CG), 5x wtyczka jack, 1x Toslink
Złącza wewnętrzne: 1x USB 3.0 Header (2x USB 3.0), 2x USB 2.0 Header (4x USB 2.0), 6x SATA 6Gb/s (B550), 1x port szeregowy, 1x TPM-Header, 1x Thunderbolt-Header 13-Pin
Header Chłodzenie: 2x Wentylatory CPU 4-Pin, 3x wentylator 4-Pin, 1x Pompa AIO 4-Pin, 1x Thermal-czujnik
Header Oświetlenie: 2x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 1x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A, ASUS Gen2)
Przyciski/przełączniki: USB BIOS Flashback (zewn.)
Audio: 7.1 (Realtek ALC1200), DTS Custom Audio
Grafika: CPU
Wireless: brak
Poziom RAID: 0/?1/?10 (B550)
Multi GPU: AMD 2-Way-CrossFireX (x16/?x4)
Złącza zasilania: 1x 24-Pin ATX, 1x 8-Pin EPS12V
Oświetlenie: RGB, 1 Zone (strona prawo)
BIOS: 1x 32MB (256Mb)
Cechy dodatkowe: Audio+solid capacitors, dioda diagnostyczna (LED-wskaźniki), 1x pasywne chłodzenie M.2
Gwarancja producenta: trzy lata (realizacja przez sklep)


Budowa: ATX
Chipset: AMD B550
CPU-Kompatybilność: Ryzen 4000G,
VRM: 10 wirtualnych faz (8+2)
MOSFETs CPU: 8x
MOSFETs SoC: 2x
RAM: 4x DDR4 DIMM, dual PC4-38400U/?DDR4-4800 (OC), max. 128GB (UDIMM)
Sloty rozszerzeń: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4), 3x PCIe 3.0 x1, 1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 22110/?2280/?2260/?2242), 1x M.2/?M-Key (PCIe 3.0 x4/?SATA, 22110/?2280/?2260/?2242), 1x M.2/?E-Key (PCIe)
Złącza zewnętrzne: 1x HDMI 2.1, 1x DisplayPort 1.4, 1x USB-C 3.1 (B550), 1x USB-A 3.1 (B550), 4x USB-A 3.0, 2x USB-A 2.0, 1x 2.5GBase-T (Realtek RTL8125B-CG), 5x wtyczka jack, 1x Toslink
Złącza wewnętrzne: 1x USB 3.0 Header (2x USB 3.0), 2x USB 2.0 Header (4x USB 2.0), 6x SATA 6Gb/s (B550), 1x port szeregowy, 1x TPM-Header, 1x Thunderbolt-Header 13-Pin
Header Chłodzenie: 2x Wentylatory CPU 4-Pin, 3x wentylator 4-Pin, 1x Pompa AIO 4-Pin, 1x Thermal-czujnik
Header Oświetlenie: 2x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 1x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A, ASUS Gen2)
Przyciski/przełączniki: USB BIOS Flashback (zewn.)
Audio: 7.1 (Realtek ALC1200), DTS Custom Audio
Grafika: CPU
Wireless: brak
Poziom RAID: 0/?1/?10 (B550)
Multi GPU: AMD 2-Way-CrossFireX (x16/?x4)
Złącza zasilania: 1x 24-Pin ATX, 1x 8-Pin EPS12V
Oświetlenie: RGB, 1 Zone (strona prawo)
BIOS: 1x 32MB (256Mb)
Cechy dodatkowe: Audio+solid capacitors, dioda diagnostyczna (LED-wskaźniki), 1x pasywne chłodzenie M.2
Gwarancja producenta: trzy lata (realizacja przez sklep)


Socket AM4 | Chipset AMD B550>br/>
TUF GAMING B550-PLUS

ASUS TUF Gaming B550-PLUS. Producent procesora: AMD, Gniazdo procesora: Socket AM4, Procesor: AMD Ryzen 3000 Series. Obsługiwane rodzaje pamięci: DDR4-SDRAM, Maksymalna pojemność pamięci: 128 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2, SATA, Poziomy raid: 0, 1, 10. Obsługa przetwarzania równoległego: 2-Way CrossFireX. Rodzaj interfejsu sieci Ethernet: 2.5 Gigabit Ethernet, Kontroler LAN: Realtek RTL8125B

ASUS TUF Gaming B550-PLUS. Producent procesora: AMD, Gniazdo procesora: Socket AM4, Procesor: AMD Ryzen 3000 Series. Obsługiwane rodzaje pamięci: DDR4-SDRAM, Maksymalna pojemność pamięci: 128 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2, SATA, Poziomy raid: 0, 1, 10. Obsługa przetwarzania równoległego: 2-Way CrossFireX. Rodzaj interfejsu sieci Ethernet: 2.5 Gigabit Ethernet, Kontroler LAN: Realtek RTL8125B
