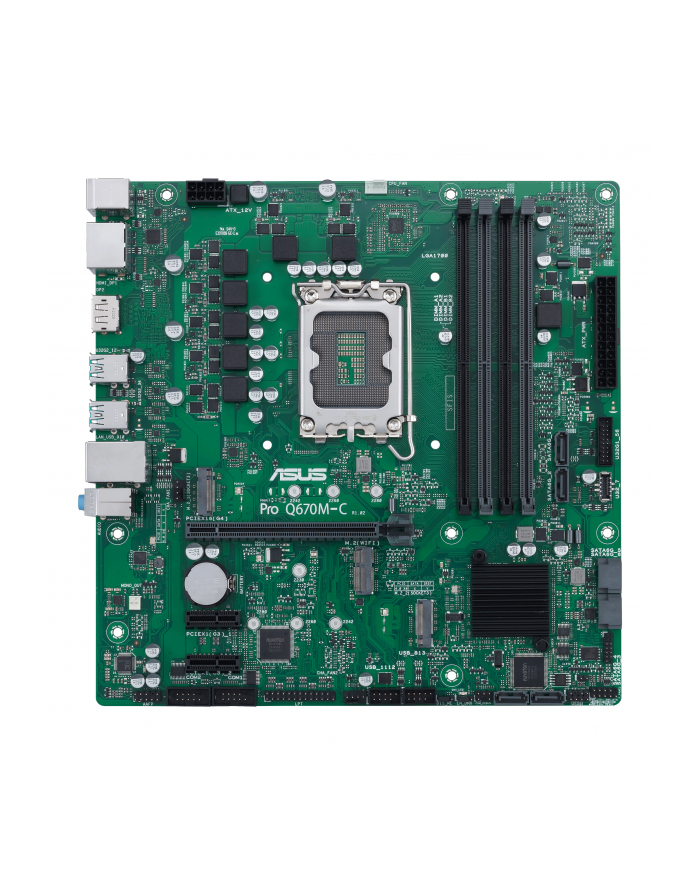

ASUS 90MB19E0-M0EAYC PRO Q670M-C-CSM Intel Q670 LGA 1700 micro ATX

Format:micro ATX; Chipset:Intel Q670; Socket:Socket 1700; Motherboard memory module type:DDR5; RAID support:0, 1, 5, 10; PCI express 16x:1; LPT port; COM portPro Q670M-C-CSMMicro-ATX Q670 business motherboard with Intel vPro support and enhanced security, reliability, manageability and serviceabilityIntel LGA 1700 socket: Ready for 14th and 13th Gen Intel Core™ processorsASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboardsASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administrationEnhanced system security: Boot defender with NIST SP 800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCsConsistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environmentsEfficient management and customization: An event log and commercial BIOS kit to enable easy maintenanceBetter serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processesSupports 14th Gen Intel Core™ ProcessorsCPUIntel Socket LGA1700 for Intel Core™ 14th & 13th Gen Processors, Intel Core™ 12th Gen, Pentium Gold and Celeron ProcessorsSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*** Refer to www.asus.com for CPU support list.** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.ChipsetIntel Q670 ChipsetMemory4 x DIMM, Max. 128GB, DDR5 4800 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel Extreme Memory Profile (XMP)Optimem II*Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).Graphics1 x HDMI 2.02 x DisplayPort**1 x HDMI**** Graphics specifications may vary between CPU types.** Supports max. 4K@60Hz as specified in DisplayPort 1.4.*** Supports 4K@60Hz as specified in HDMI 2.1.**** VGA resolution support depends on processorsqqq1 or graphic cardsqqq1 resolution.Expansion SlotsIntel Core™ Processors (14th & 13th & 12th Gen)*1 x PCIe 4.0/3.0 x16 slotIntel Q670 Chipset2 x PCIe 3.0 x1 slots* Please check PCIe bifurcation table in support site.StorageTotal supports 2 x M.2 slots and 6 x SATA 6Gb/s ports*Intel 14th & 13th & 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280- Intel 12th Gen processors support PCIe 4.0 x4 modeIntel Q670 Chipset**M.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode)6 x SATA 6Gb/s ports* Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.Ethernet1 x Intel 1Gb EthernetASUS LANGuardWireless & Bluetooth*Wi-Fi module is sold separately.USBRear USB:Total 6 ports4 x USB 3.2 Gen 2 ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB:Total 7 ports1 x USB 3.2 Gen 1 front panel connector (suppports USB Type-C)1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 portsAudioRealtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playback qqq1qqq1* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.Back Panel I/O Ports4 x USB 3.2 Gen 2 ports (4 x Type-A)2x USB 2.0 ports (2 x Type-A)2 x DisplayPort1 x HDMI port3 x Audio jacks1 x Intel 1Gb Ethernet1 x PS/2 keyboard (purple) port1 x PS/2 mouse (green) portInternal I/O ConnectorsFan and cooling related1 x 4-pin CPU Fan header2 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related2 x M.2 slots (Key M)6 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C)1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous1 x Clear CMOS header1 x Chassis Intrude header2 x COM Port headers1 x Front Panel Audio header (AAFP)1 x COM debug header1 x DIS ME jumper1 x LPT header1 x Mono-out header(with Amp IC)1 x M.2 slot (Key E)1 x Speaker header1 x 10-1 System Panel headerSpecial FeaturesASUS EZ DIY- Box HeadersBespoke Motherboard Design & Business Focused Features- ASUS Boot Defender- Q-LED Core- ASUS Self Recovering BIOS- ASUS Event Log- ASUS Commercial BIOS kit- Anti-Moisture- 24/7 Reliability- Overcurrent ProtectionTPM 2.0 IC onboardSoftware FeaturesASUS Exclusive SoftwareIT Management software supported- ASUS Control Center Express(ACCE)BIOS256 Mb Flash ROMManageabilityWOL by PME, PXEAccessoriesCables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x M.2 SSD screw package1 x M.2 Key E screw packageInstallation Media1 x Support DVDDocumentation1 x ACC Express Activation Key Card1 x User guideOperating SystemWindows 11, Windows 10 64-bitForm FactormATX Form Factor24.4 cm x 24.4 cm

Das ASUS PRO Q670M-C-CSM Mainboard basiert auf dem Intel®-Z790-Chipsatz und unterstützt Intel®-Prozessoren für den Sockel 1700. Es verfügt über vier DDR5-DIMM-Slots im Dual-Channel-Betrieb für bis zu 192 GB Arbeitsspeicher. Zur weiteren Ausstattung des ASUS PRO Q670M-C-CSM gehören ein PCIe-4.0-x16-Slot und zwei PCIe-3.0-x1-Slots. Außerdem verfügt das ASUS PRO Q670M-C-CSM über 8-Kanal-Sound, eine Gigabit-LAN-Schnittstelle, sechs SATA3-Anschlüsse, drei M.2-Anschlüsse und eine Reihe an USB Schnittstellen.

Das ASUS PRO Q670M-C-CSM Mainboard basiert auf dem Intel®-Z790-Chipsatz und unterstützt Intel®-Prozessoren für den Sockel 1700. Es verfügt über vier DDR5-DIMM-Slots im Dual-Channel-Betrieb für bis zu 192 GB Arbeitsspeicher. Zur weiteren Ausstattung des ASUS PRO Q670M-C-CSM gehören ein PCIe-4.0-x16-Slot und zwei PCIe-3.0-x1-Slots. Außerdem verfügt das ASUS PRO Q670M-C-CSM über 8-Kanal-Sound, eine Gigabit-LAN-Schnittstelle, sechs SATA3-Anschlüsse, drei M.2-Anschlüsse und eine Reihe an USB Schnittstellen.

ASUS PRO Q670M-C-CSM. Producent procesora: Intel, Gniazdo procesora: LGA 1700, Procesor: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Obsługiwane rodzaje pamięci: DDR5-SDRAM, Maksymalna pojemność pamięci: 128 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2, SATA III, Obsługiwane rodzaje dysków: HDD & SSD, Poziomy raid: 0, 1, 5, 10. Rodzaj interfejsu sieci Ethernet: Gigabit Ethernet. Przeznaczenie: PC, Rodzaj płyty: micro ATX, Rodzina płyt z chipsetami: Intel
