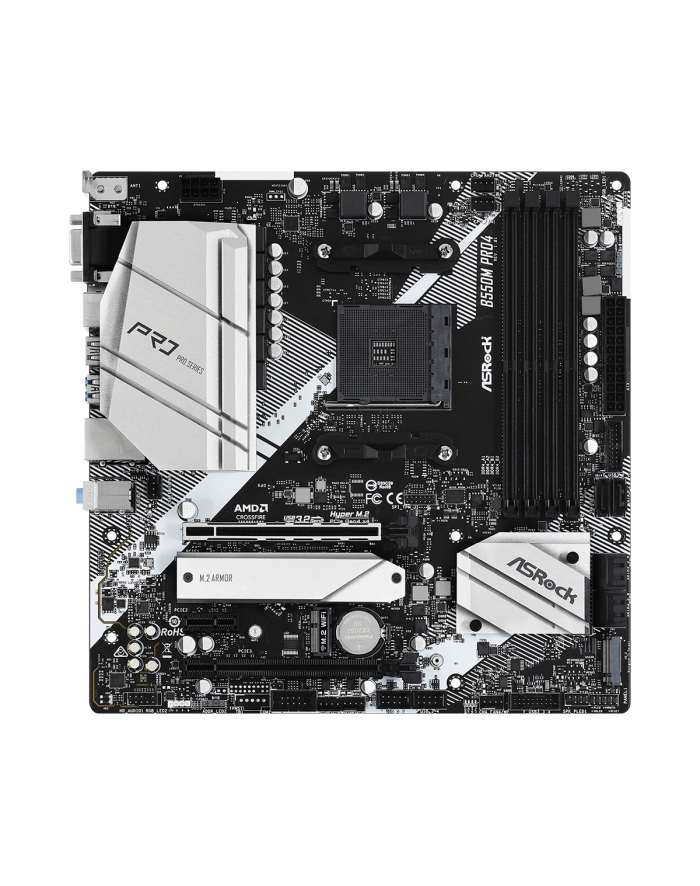

asrock Płyta główna B550M Pro4 AM4 4DDR4 HDMI/DP/D-SUB M.2 mATX

Format:micro ATX; Chipset:AMD B550, AMD; Socket:Socket AM4; Motherboard memory module type:DDR4; RAID support:1, 10; PCI express 16x:2; COM portB550M Pro4Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors8 Power Phase Design, Digi PowerSupports DDR4 4733+ (OC)1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFiGraphics Output Options: HDMI, DisplayPort, D-SubAMD CrossFireX™7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)2 USB 3.2 Gen2 (Rear Type A+C), 8 USB 3.2 Gen1 (4 Front, 4 Rear)Realtek Gigabit LANTECHNICAL SPECIFICATIONSUnique FeatureASRock USB 3.2 Gen2- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)ASRock Super Alloy- XXL Aluminum Alloy Heatsink- Premium 50A Power Choke- Sapphire Black PCB- High Density Glass Fabric PCB- 2oz Copper PCBASRock Steel Slot Gen4ASRock Full Coverage M.2 HeatsinkASRock Hyper M.2 (PCIe Gen4x4)ASRock POST Status Checker (PSC)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP ShopCPU- Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors*- Digi Power design- 8 Power Phase design*Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G.Chipset- AMD B550Memory- Dual Channel DDR4 Memory Technology- 4 x DDR4 DIMM Slots- AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- AMD Ryzen series APUs support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*- Max. capacity of system memory: 128GB**- Supports Extreme Memory Profile (XMP) memory modules- 15µ Gold Contact in DIMM Slots*Graphics- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*- DirectX 12, Pixel Shader 5.0- Shared memory default 2GB. Max Shared memory supports up to 16GB.**- Three graphics output options: D-Sub, HDMI and DisplayPort 1.4- Supports Triple Monitor- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz- Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)- Supports HDR (High Dynamic Range) with HDMI 2.1- Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports- Supports Microsoft PlayReady*Actual support may vary by CPU**The Max shared memory 16GB requires 32GB system memory installed.SlotsAMD Ryzen series CPUs (Matisse)- 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)*AMD Ryzen series APUs- 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)*- 1 x PCI Express 3.0 x1 Slot- Supports AMD Quad CrossFireX™ and CrossFireX™- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module*Supports NVMe SSD as boot disksStorage- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s)**- 1 x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)***M2_2 and SATA3_5_6 share lanes. If either one of them is in use, the other one will be disabled.**Supports NVMe SSD as boot disksSupports ASRock U.2 KitLAN- PCIE x1 Gigabit LAN 10/100/1000 Mb/s- Realtek RTL8111H- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXEConnector- 1 x COM Port Header- 1 x SPI TPM Header- 1 x Power LED and Speaker Header- 2 x RGB LED Headers*- 2 x Addressable LED Headers**- 1 x CPU Fan Connector (4-pin)***- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)*Support in total up to 12V/3A, 36W LED Strip**Support in total up to 5V/3A, 15W LED Strip***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use.Audio- 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)- Premium Blu-ray Audio support- Supports Surge Protection- PCB Isolate Shielding- Individual PCB Layers for R/L Audio Channel- Nahimic AudioRear panel I/O- Antenna Bracket- 1 x PS/2 Mouse/Keyboard Port- 1 x D-Sub Port- 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)- 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)- 2 x USB 2.0 Ports (Supports ESD Protection)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Line in / Front Speaker / MicrophoneSoftware and UEFISoftware- ASRock Motherboard Utility (A-Tuning)- ASRock XFast LANUEFI- ASRock Full HD UEFI- ASRock Instant Flash*These utilities can be downloaded from ASRock Live Update & APP Shop.Support CD- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and ToolbarBIOS- 256Mb AMI UEFI Legal BIOS with GUI support- Supports qqq1qqq1Plug and Playqqq1qqq1- ACPI 5.1 compliance wake up events- Supports jumperfree- SMBIOS 2.3 support- CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment Accessories- Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables- 2 x Screws for M.2 Sockets Hardware Monitor- Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, +1.8V, VDDPOperating System- Microsoft Windows 10 64-bitForm Factor- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm- Solid Capacitor design- 2oz Copper PCBCertifications- FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)

Budowa: µATX
Chipset: AMD B550
CPU-Kompatybilność: Ryzen 4000G,
VRM: 8 wirtualnych faz
RAM: 4x DDR4 DIMM, dual PC4-37866U/?DDR4-4733 (OC), max. 128GB (UDIMM)
Sloty rozszerzeń: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4), 1x PCIe 3.0 x1, 1x M.2/?M-Key (PCIe 4.0 x4, 2280), 1x M.2/?M-Key (PCIe 3.0 x2/?SATA, 2280), 1x M.2/?E-Key (PCIe, 2230)
Złącza zewnętrzne: 1x VGA, 1x HDMI 2.1, 1x DisplayPort 1.4, 1x USB-C 3.1 (B550), 1x USB-A 3.1 (B550), 4x USB-A 3.0, 2x USB-A 2.0, 1x Gb LAN (Realtek RTL8111H), 3x wtyczka jack, 1x combo PS/?2
Złącza wewnętrzne: 2x USB 3.0 Header (4x USB 3.0), 2x USB 2.0 Header (4x USB 2.0), 6x SATA 6Gb/s (B550), 1x port szeregowy, 1x TPM-Header, 1x Speaker-Header
Header Chłodzenie: 1x Wentylatory CPU 4-Pin, 1x Wentylatory CPU/?pompa 4-Pin, 4x wentylator/?pompa 4-Pin
Header Oświetlenie: 2x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 2x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A)
Przyciski/przełączniki: brak
Audio: 7.1 (Realtek ALC1200)
Grafika: CPU
Wireless: brak
Poziom RAID: 0/?1/?10 (B550)
Multi GPU: AMD 2-Way-CrossFireX (x16/?x4)
Złącza zasilania: 1x 24-Pin ATX, 1x 8-Pin EPS12V
Oświetlenie: brak
BIOS: 1x 32MB (256Mb)
Cechy dodatkowe: Audio+solid capacitors, dioda diagnostyczna (LED-wskaźniki), 1x pasywne chłodzenie M.2
Gwarancja producenta: trzy lata (realizacja przez sklep)


Budowa: µATX
Chipset: AMD B550
CPU-Kompatybilność: Ryzen 4000G,
VRM: 8 wirtualnych faz
RAM: 4x DDR4 DIMM, dual PC4-37866U/?DDR4-4733 (OC), max. 128GB (UDIMM)
Sloty rozszerzeń: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4), 1x PCIe 3.0 x1, 1x M.2/?M-Key (PCIe 4.0 x4, 2280), 1x M.2/?M-Key (PCIe 3.0 x2/?SATA, 2280), 1x M.2/?E-Key (PCIe, 2230)
Złącza zewnętrzne: 1x VGA, 1x HDMI 2.1, 1x DisplayPort 1.4, 1x USB-C 3.1 (B550), 1x USB-A 3.1 (B550), 4x USB-A 3.0, 2x USB-A 2.0, 1x Gb LAN (Realtek RTL8111H), 3x wtyczka jack, 1x combo PS/?2
Złącza wewnętrzne: 2x USB 3.0 Header (4x USB 3.0), 2x USB 2.0 Header (4x USB 2.0), 6x SATA 6Gb/s (B550), 1x port szeregowy, 1x TPM-Header, 1x Speaker-Header
Header Chłodzenie: 1x Wentylatory CPU 4-Pin, 1x Wentylatory CPU/?pompa 4-Pin, 4x wentylator/?pompa 4-Pin
Header Oświetlenie: 2x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 2x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A)
Przyciski/przełączniki: brak
Audio: 7.1 (Realtek ALC1200)
Grafika: CPU
Wireless: brak
Poziom RAID: 0/?1/?10 (B550)
Multi GPU: AMD 2-Way-CrossFireX (x16/?x4)
Złącza zasilania: 1x 24-Pin ATX, 1x 8-Pin EPS12V
Oświetlenie: brak
BIOS: 1x 32MB (256Mb)
Cechy dodatkowe: Audio+solid capacitors, dioda diagnostyczna (LED-wskaźniki), 1x pasywne chłodzenie M.2
Gwarancja producenta: trzy lata (realizacja przez sklep)


Asrock B550M Pro4. Producent procesora: AMD, Gniazdo procesora: Socket AM4, Procesor: AMD Ryzen 3000 Series. Obsługiwane rodzaje pamięci: DDR4-SDRAM, Maksymalna pojemność pamięci: 128 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2, SATA III, Obsługiwane rodzaje dysków: HDD & SSD, Poziomy raid: 0, 1, 10. Obsługa przetwarzania równoległego: CrossFireX, Quad-GPU CrossFireX, Maks. rozdzielczość: 5120 x 2880 px. Rodzaj interfejsu sieci Ethernet: Gigabit Ethernet, Kontroler LAN: Realtek RTL8111H
