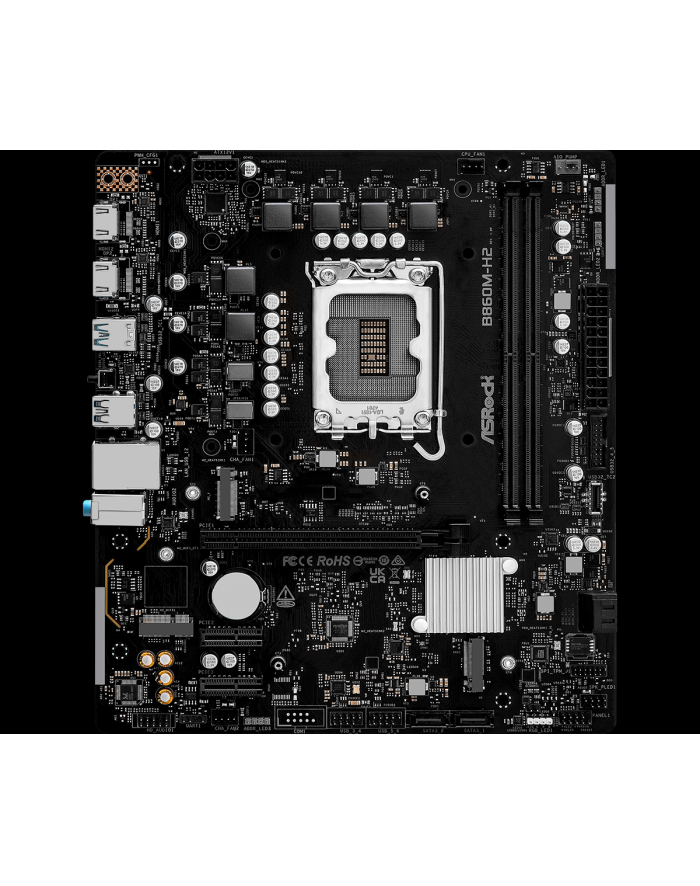

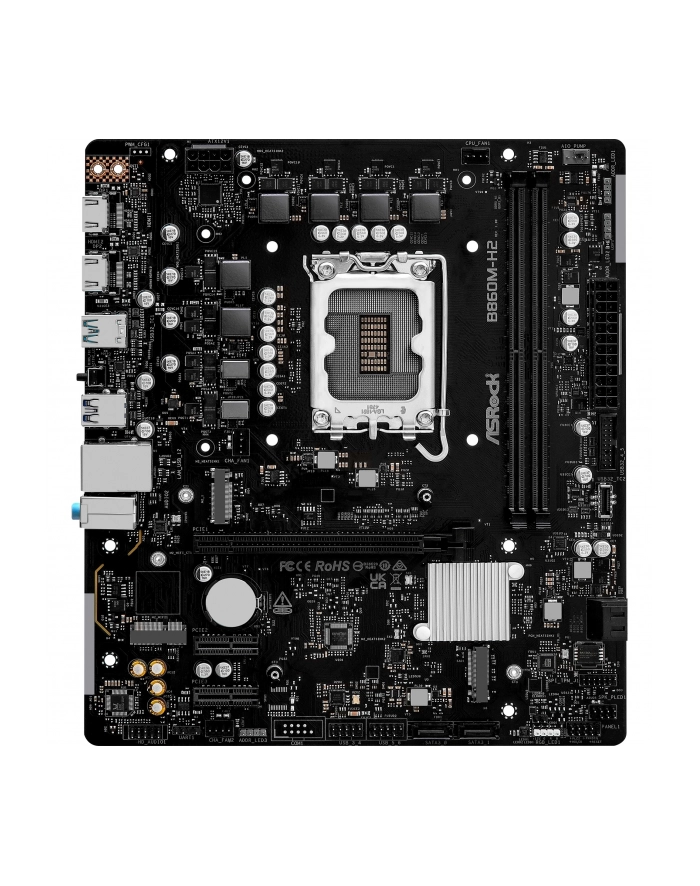

ASROCK B860M-H2 LGA1851 DDR5 mATX MB

Format:micro ATX; Chipset:Intel B860; Socket:Socket 1851; Motherboard memory module type:DDR5; RAID support:0, 1, 5, 10; PCI express 16x:1ASRock B860M-H2Built to deliver reliable performance with versatile features, perfect for daily tasks.The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, itqqq1s able to support the latest memory modules with most extreme memory performance!Unique FeatureSuperb Productivity- PCIe Gen5 (M.2)- Dual Channel DDR5Rock-Solid Durability- 5+1+1+1+1 Power PhaseASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) TechnologyEZ Update- BIOS Flashback Button- ASRock Auto Driver InstallerCPU- Supports Intel Core™ Ultra Processors (Series 2) (LGA1851)- Supports Intel Hybrid Technology- Supports Intel Turbo Boost Max 3.0 Technology- Supports Intel Thermal Velocity Boost (TVB)- Supports Intel Adaptive Boost Technology (ABT)- Integrated NPU for dedicated AI accelerationChipset- Intel B860Memory- Dual Channel DDR5 Memory Technology- 2 x DDR5 DIMM Slots- Supports DDR5 non-ECC, un-buffered memory up to 8333+(OC)*- Supports Clocked Unbuffered DIMM (CUDIMM)- Max. capacity of system memory: 128GB- Supports Intel Extreme Memory Profile (XMP) 3.0x*1DPC 1R Up to 8333+ MHz (OC), 6400 MHz Natively. 1DPC 2R Up to 6200+ MHz (OC), 6400 MHz Natively.BIOS- 256Mb AMI UEFI Legal BIOS with GUI supportGraphics- Intel Xe LPG Graphics Architecture- 2 x HDMI 2.1 TMDS/FRL 8G Compatible, support HDR, HDCP 2.3 and max. resolution up to 4K 120Hz*Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.Audio- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)LAN- Gigabit LAN 10/100/1000 Mb/s- Realtek 8111HSlotsCPU:- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*Chipset:- 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)*- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module*Supports NVMe SSD as boot disksStorageCPU:- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*- 4 x SATA3 6.0 Gb/s Connectors*Supports Intel Volume Management Device (VMD)Supports NVMe SSD as boot disksRAID- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesUSBCPU:- 1 x USB 3.2 Gen2x2 Type-C (Rear)Chipset:- 1 x USB 3.2 Gen1 Type-C (Front)- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)- 6 x USB 2.0 (2 Rear, 4 Front)*All USB ports support ESD ProtectionConnector- 1 x SPI TPM Header- 1 x Power LED and Speaker Header- 1 x RGB LED Header*- 3 x Addressable LED Headers**- 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***- 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)- 1 x USB 3.2 Gen1 Headers (Supports 2 USB 3.2 Gen1 ports)- 1 x Front Panel Type C USB 3.2 Gen1 Header*Supports in total up to 12V/3A, 36W LED Strip**Support in total up to 5V/3A, 15W LED Strip***CPU_FAN1, CHA_FAN1~2 and AIO_PUMP support the fan power up to 3A (36W).CPU_FAN1, CHA_FAN1~2 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.Rear Panel I/O- 2 x Antenna Mounting Points- 2 x HDMI Ports- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)- 3 x USB 3.2 Gen1 Type-A Ports- 2 x USB 2.0 Ports- 1 x RJ-45 LAN Port- 1 x BIOS Flashback Button- HD Audio Jacks: Line in / Front Speaker / MicrophoneSoftware and UEFISoftware- ASRock Motherboard Utility (A-Tuning)- ASRock Polychrome SYNC*UEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Auto Driver Installer- ASRock Instant Flash*These utilities can be downloaded from ASRock Live Update & APP Shop.Accessories- 1 x I/O Shield- 2 x SATA Data Cables- 1 x Screw for M.2 SocketForm Factor- Micro ATX Form Factor: 9.6-in x 8.3-in, 24.4 cm x 21.1 cmOS- Microsoft Windows 11 64-bitCertifications- FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)

Płyta główna ASRock B860M-H2 oparta jest na chipsecie Intel® B860 i obsługuje procesory Intel® z gniazdem 1851. Posiada dwa gniazda DDR5, obsługujące do 128 GB pamięci RAM. Inne funkcje płyty głównej ASRock B860M-H2 to gniazdo PCIe 5.0 x16, gniazdo PCIe 4.0 x4 i gniazdo PCIe 4.0 x1. ASRock B860M-H2 oferuje również 8-kanałowy dźwięk, interfejs Gigabit LAN, cztery porty SATA3, dwa porty M.2 oraz szereg interfejsów USB.


Typ płyty głównej
Kolor: czarny
EAN 4711581490437
Numer producenta 90-MXBS0-A0UAYZ
Gniazdo 1851
Maksymalna obsługiwana liczba procesorów: 1
Procesor Obsługiwane modele Core Ultra 3 2xx (Arrow Lake), Core Ultra 5 2xx (Arrow Lake), Core Ultra 5 2xxF (Arrow Lake), Core Ultra 5 2xxK (Arrow Lake), Core Ultra 5 2xxKF (Arrow Lake), Core Ultra 5 2xxT (Arrow Lake), Core Ultra 7 2xx (Arrow Lake), Core Ultra 7 2xxF (Arrow Lake), Core Ultra 7 2xxK (Arrow Lake), Core Ultra 7 2xxKF (Arrow Lake), Core Ultra 7 2xxT (Arrow Lake), Core Ultra 9 2xx (Arrow Lake), Core Ultra 9 2xxK (Arrow Lake), Core Ultra 9 2xxKF (Arrow Lake), Core Ultra 9 2xxT (Arrow Lake)
Chipset Intel® B860
Sloty PCIe x16 1x (w tym: 1x PCIe x16)
TPM Tak
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Współczynnik kształtu µATX
Użyj komputera
Zasilacz ATX12V (24-pinowy + 8-pinowy)
Maksymalna pamięć 128 GB
Złącza (zewnętrzne) USB-C 3.2 Gen 2x2 (20 Gbit/s) 1
Złącza (wewnętrzne) SATA 4
Złącza (opcjonalnie) USB 3.2 Gen 1 (5 Gbit/s) 2
Standardowa dioda LED RGB RGB
Kontroler SATA Intel® B860
Bezpośrednio użyteczne poziomy RAID 0, 1, 10, 5
Kontroler USB Intel® B860
Dźwięk Realtek ALC897 7.1 dźwięk przestrzenny
LAN Realtek 8111H GbE Ethernet
Informacje dodatkowe Aby obsługiwać najnowsze rdzenie procesora, może być wymagana aktualizacja systemu BIOS.
Akcesoria w zestawie: 2 kable SATA, 1 osłona wejścia/wyjścia, 1 śruba M.2
Wymiary Szerokość: 211 mm x Wysokość: 244 mm
Ostrzeżenia i instrukcje bezpieczeństwa Ostrzeżenia: Uwaga: Produkt zawiera baterię guzikową lub pastylkową.
