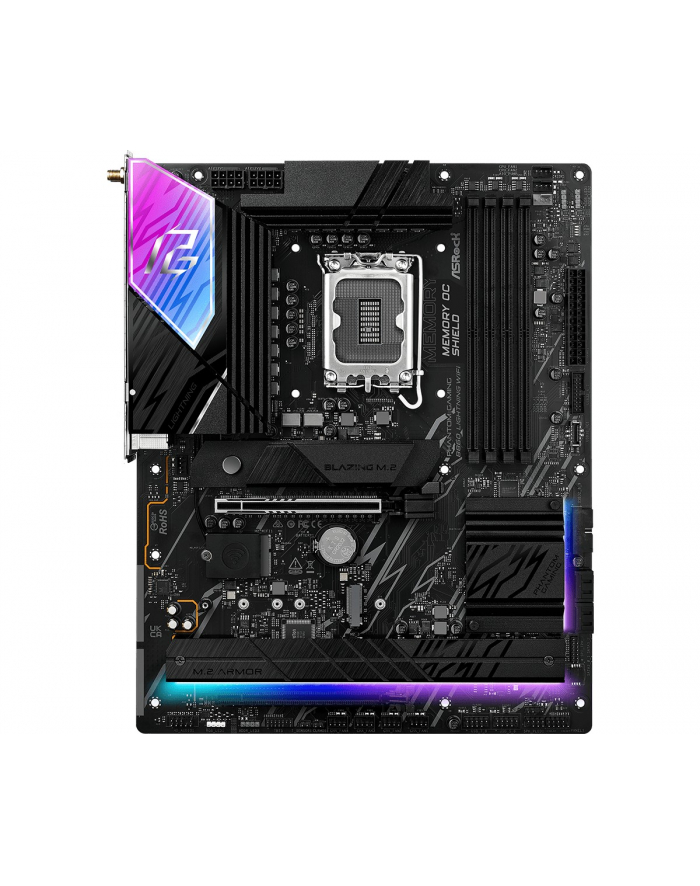

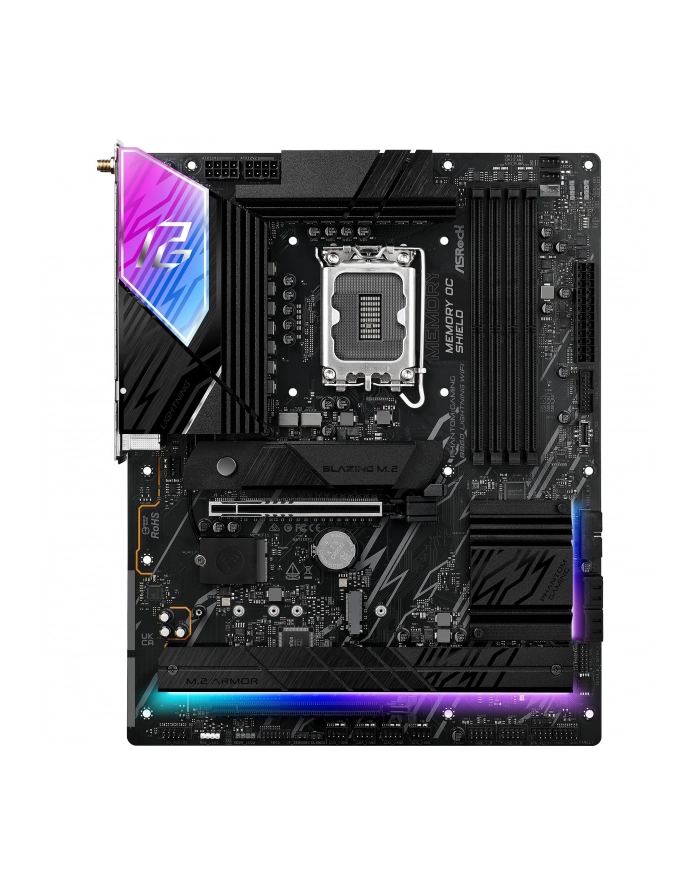

ASROCK B860 Lightning WiFi LGA1851 DDR5 ATX MB

Format:ATX; Chipset:Intel B860; Socket:Socket 1851; Motherboard memory module type:DDR5; RAID support:0, 1, 5, 10; PCI express 16x:2ASRock B860 Lightning WiFiLightning series stands as a symbol of both speed and power. The design employs linear and angular elements, evoking the imagery of lightning – a spectacle of raw energy and breathtaking speed.Unique FeatureSuperb Productivity- PCIe Gen5 (Graphics, M.2)- Dual Channel DDR5- Thunderbolt™ 4 Type-C Port (40 Gb/s)Rock-Solid Durability- Server-Grade Low-Loss PCB- 14+1+1+1+1 Power Phase, 80A Dr.MOS for VCore+GT+SA with Enlarged Heatsink Armor- Memory OC Shield- Flexible Integrated I/O Shield- 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)Ultrafast Gaming- Killer 2.5G LAN, 802.11axe Wi-Fi 6E Module- Killer DoubleShot™ ProEZ Update- BIOS Flashback Button- ASRock Auto Driver InstallerEZ Troubleshooter- ASRock Post Status CheckerCPU- Supports Intel Core™ Ultra Processors (Series 2) (LGA1851)- Supports Intel Hybrid Technology- Supports Intel Turbo Boost Max 3.0 Technology- Supports Intel Thermal Velocity Boost (TVB)- Supports Intel Adaptive Boost Technology (ABT)- Integrated NPU for dedicated AI accelerationChipset- Intel B860Memory- Dual Channel DDR5 Memory Technology- 4 x DDR5 DIMM Slots- Supports DDR5 non-ECC, un-buffered memory up to 8933+(OC)*- Supports Clocked Unbuffered DIMM (CUDIMM)- Max. capacity of system memory: 256GB- Supports Intel Extreme Memory Profile (XMP) 3.0x* 1DPC 1R Up to 8933+ MHz (OC), 5600 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively. 2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively. 2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively.BIOS- 256Mb AMI UEFI Legal BIOS with GUI supportGraphics- Intel Xe LPG Graphics Architecture- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz- 1 x Intel Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz*** Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.** Supports two 4K displays or one 8K displayOnly the CPUqqq1s embedded graphics can be displayed through Thunderbolt™ ports. If you want to display to a Thunderbolt™ monitor, please use CPU models with embedded graphics.Audio- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)- Impedance Sensing on Rear Out port- Individual PCB Layers for R/L Audio Channel- Nahimic AudioLAN- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s- Killer E3100G- Supports Killer LAN Software- Supports Killer DoubleShot™ ProWireless LAN- 802.11axe Wi-Fi 6E Module- Supports IEEE 802.11a/b/g/n/ac/ax/axe- Supports Dual-Band 2x2 160MHz with extended 6GHz band* support- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology- Supports Bluetooth 5.3- Supports MU-MIMO- Supports Killer LAN Software- Supports Killer DoubleShot™ Pro*The Wi-Fi 6E module is supported by Microsoft Windows 11 only. There is no driver available for Windows 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.A 6GHz compatible router is required for 6E functionality.SlotsCPU:- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*Chipset:- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x2 mode*- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)* Supports NVMe SSD as boot disksStorageCPU:- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode*- 4 x SATA3 6.0 Gb/s Connectors* Supports Intel Volume Management Device (VMD)Supports NVMe SSD as boot disksRAID- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesUSBCPU:- 1 x Thunderbolt™ 4 Type-C (Rear) Chipset:- 1 x USB 3.2 Gen2x2 Type-C (Front)- 2 x USB 3.2 Gen2 Type-A (Rear)- 8 x USB 3.2 Gen1 (4 Rear, 4 Front)- 7 x USB 2.0 (3 Rear, 4 Front)* All USB ports support ESD ProtectionConnector- 1 x Thermistor Cable Header- 1 x SPI TPM Header- 1 x Power LED and Speaker Header- 1 x RGB LED Header*- 3 x Addressable LED Headers**- 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***- 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***- 1 x 24 pin ATX Power Connector- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)- 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)* Supports in total up to 12V/3A, 36W LED Strip** Support in total up to 5V/3A, 15W LED Strip*** CPU_FAN1 supports the fan power up to 1A (12W).CPU_FAN2, CHA_FAN1~5 and AIO_PUMP support the fan power up to 3A (36W).CPU_FAN2, CHA_FAN1~5 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.Rear Panel I/O- 2 x Antenna Ports- 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x Optical SPDIF Out Port- 1 x Thunderbolt™ 4 Type-C Port (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)*- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)- 4 x USB 3.2 Gen1 Ports**- 3 x USB 2.0 Ports- 1 x RJ-45 LAN Port- 1 x BIOS Flashback Button- 1 x Line Out Jack (Gold Audio Jack)- 1 x Microphone Input Jack (Gold Audio Jack)* Supports USB PD 3.0 up to 5V@3A (15W) charging** USB32_45 support Ultra USB Power.Software and UEFISoftware- ASRock Motherboard Utility (Phantom Gaming Tuning)- Killer Control Center- ASRock Polychrome SYNC*UEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Auto Driver Installer- ASRock Instant Flash*These utilities can be downloaded from ASRock Live Update & APP Shop.Accessories- 2 x SATA Data Cables- 2 x ASRock WiFi 2.4/5/6 GHz Antennas- 1 x ARGB Splitter Cable- 1 x Thermistor CableForm Factor- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm- 2oz Copper PCBOS- Microsoft Windows 11 64-bitCertifications- FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)
