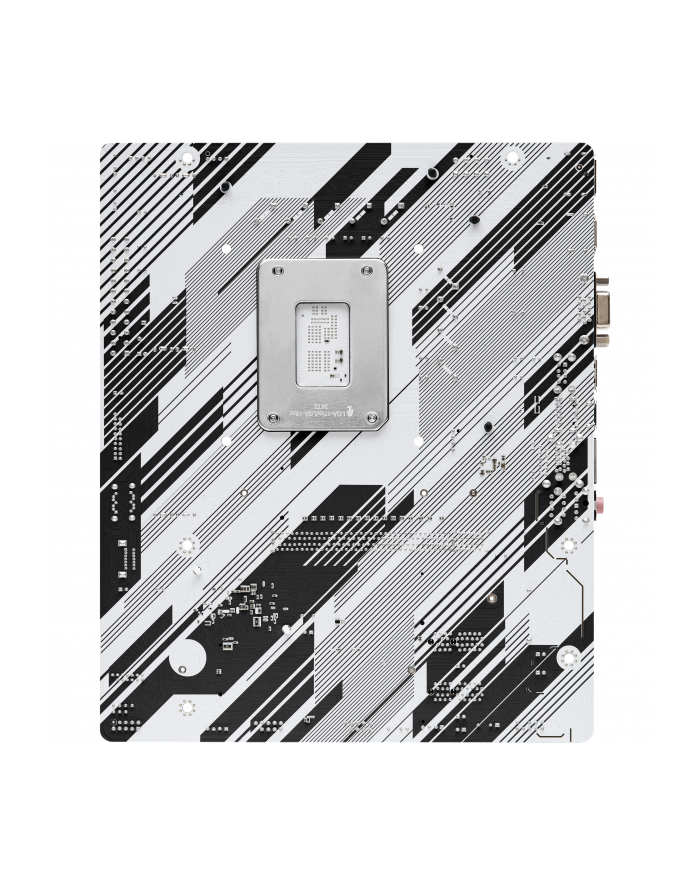

ASROCK B760M-HDV/M.2 mATX LGA1700 DDR5

Format:micro ATX; Chipset:Intel B760; Socket:Socket 1700; Motherboard memory module type:DDR5; RAID support:0, 1, 5, 10; PCI express 16x:1ASRock B760M-HDV/M.2Supports 14th, 13th & 12th Gen Intel Core™ Processors (LGA1700)7+1+1 Power Phase, Dr.MOS for VCore+GTSupports DDR5 7200MHz (OC)1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFiGraphics Output Options: HDMI, DisplayPort, VGARealtek ALC897 7.1 CH HD Audio Codec4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 Ultra M.2 (PCIe Gen3 x4)1 USB 3.2 Gen1 Type-C (Rear), 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)Dragon 2.5G LANSupports ASRock Auto Driver InstallerCPU- Supports 14th, 13th & 12th Gen Intel Core™ Processors (LGA1700)- Supports Intel Hybrid Technology- Supports Intel Turbo Boost Max 3.0 Technology- Supports Intel Thermal Velocity Boost (TVB)- Supports Intel Adaptive Boost Technology (ABT)Chipset- Intel B760Memory- Dual Channel DDR5 Memory Technology- 2 x DDR5 DIMM Slots- Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*- Max. capacity of system memory: 96GB- Supports Intel Extreme Memory Profile (XMP) 3.0* 1DPC 1R Up to 7200+ MHz (OC), 5600 MHz Natively.1DPC 2R Up to 6800+ MHz (OC), 5200 MHz Natively.Please refer to Memory Support List on ASRockqqq1s website for more information.BIOS- 128Mb AMI UEFI Legal BIOS with GUI supportGraphics- Intel Xe Graphics Architecture (Gen 12)- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz- 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz* Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.Audio- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)LAN- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s- Dragon RTL8125BG- Supports Dragon 2.5G LAN Software- Smart Auto Adjust Bandwidth Control- Visual User Friendly UI- Visual Network Usage Statistics- Optimized Default Setting for Game, Browser, and Streaming Modes- User Customized Priority ControlSlotsCPU:- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*Chipset:- 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module* Supports NVMe SSD as boot disksStorageChipset:- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) modes**- 4 x SATA3 6.0 Gb/s Connectors* Supports Intel Volume Management Device (VMD)** Supports NVMe SSD as boot disks- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesUSB- 1 x USB 3.2 Gen1 Type-C (Rear)- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)- 6 x USB 2.0 (2 Rear, 4 Front)Connector- 1 x SPI TPM Header- 1 x Chassis Intrusion and Speaker Header- 1 x RGB LED Header*- 3 x Addressable LED Headers**- 1 x CPU Fan Connector (4-pin)***- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)*Supports in total up to 12V/3A, 36W LED Strip** Support in total up to 5V/3A, 15W LED Strip*** CPU_FAN1 supports the fan power up to 1A (12W).**** CPU_FAN2/WP supports the fan power up to 2A (24W).***** CHA_FAN1~2/WP support the fan power up to 2A (24W).CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.Rear Panel I/O- 2 x Antenna Mounting Points- 1 x D-Sub Port- 1 x HDMI Port- 1 x DisplayPort 1.4- 1 x USB 3.2 Gen1 Type-C Port- 3 x USB 3.2 Gen1 Type-A Ports- 2 x USB 2.0 Ports- 1 x RJ-45 LAN Port- HD Audio Jacks: Line in / Front Speaker / MicrophoneSoftware and UEFISoftware- ASRock Motherboard Utility (A-Tuning)- ASRock Dragon 2.5G LAN Software- ASRock Polychrome SYNC*UEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Auto Driver Installer- ASRock Instant Flash- ASRock Easy RAID Installer*These utilities can be downloaded from ASRock Live Update & APP Shop.Unique FeatureSuperb Productivity- Dual Channel DDR5Rock-Solid Durability- 7+1+1 Power Phase-ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) TechnologyUltrafast Connectivity- 2.5G LANEZ Update- ASRock Auto Driver InstallerOperating SystemWindows 11, Windows 10 64-bitAccessories- 1 x User Manual- 1 x I/O Shield- 2 x SATA Data Cables- 3 x Screws for M.2 SocketsForm Factor- Micro ATX Form Factor: 24.4 cm x 20.1 cm

Das ASRock B760M-HDV/M.2 WHITE Mainboard basiert auf dem Intel®-B760-Chipsatz und unterstützt Intel®-Prozessoren für den Sockel 1700 der 13ten und 12ten Generation. Es verfügt über zwei DDR5-DIMM-Slots im Dual-Channel-Betrieb für bis zu 96 GB Arbeitsspeicher. Zur weiteren Ausstattung des ASRock B760M-HDV/M.2 WHITE gehören ein PCIe-4.0-x16-Slot und zwei PCIe-4.0-x1-Slots. Außerdem verfügt das B760M-HDV/M.2 WHITE über 8-Kanal-Sound, eine 2.5 Gigabit-LAN-Schnittstelle, vier SATA3-Anschlüsse, zwei M.2-Anschlüsse, und eine Reihe an USB-Schnittstellen.

Das ASRock B760M-HDV/M.2 WHITE Mainboard basiert auf dem Intel®-B760-Chipsatz und unterstützt Intel®-Prozessoren für den Sockel 1700 der 13ten und 12ten Generation. Es verfügt über zwei DDR5-DIMM-Slots im Dual-Channel-Betrieb für bis zu 96 GB Arbeitsspeicher. Zur weiteren Ausstattung des ASRock B760M-HDV/M.2 WHITE gehören ein PCIe-4.0-x16-Slot und zwei PCIe-4.0-x1-Slots. Außerdem verfügt das B760M-HDV/M.2 WHITE über 8-Kanal-Sound, eine 2.5 Gigabit-LAN-Schnittstelle, vier SATA3-Anschlüsse, zwei M.2-Anschlüsse, und eine Reihe an USB-Schnittstellen.
