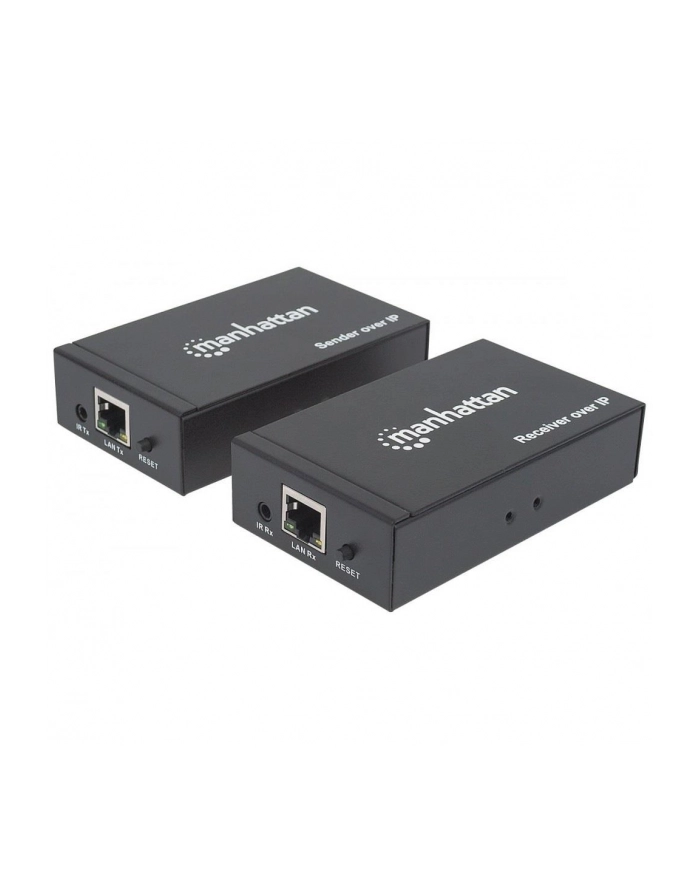

ic intracom MANHATTAN 207959 Manhattan Extender AV HDMI over IP, Cat6/6a/7 1080p do 120m IR

Cable/adaptor specification:Adapter1080p HDMI over IP Extender Splitter KitExtends an HDMI signal from an HDMI source to a High-Definition (HD) monitor or projector up to 120 m (396 ft.) using an unmanaged network switch and an Ethernet cableWorks in conjunction with existing network infrastructures via TCP/IPSupports three connection configurations: direct connect from transmitter (Tx) unit to receiver (Rx) unit; Tx unit to network switch to Rx unit; Tx unit to network switch to many Rx unitsCan connect up to 250 displays to network with additional Rx unitsSupports video amplifier bandwidth up to 165 MHz and 1.65 Gbps per channel (4.95 Gbps total) for 1080p displaysSupports lossless LPCM 8 channel uncompressed audio formatting and 5.1 surround soundOffers IR Tx and Rx cables that allow for convenient remote control of HD signal sourceFully HDCP compliant to protect high-definition content transmission and ensure quality receptionPlug and play — requires no installation or configurationA flexible Audio/Video solution for conference rooms (when sharing ideas and data), digital signage (extending the distances between displays) and other applicationsCompatible with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers and moreGold-plated contacts for corrosion-free connectionsThree-year warranty TECHNICAL SPECIFICATIONS Standards and Certifications HDCP 1.2TCP/IPDVI 1.0CTS 1.2CEFCCRoHS2 Package Contents 1080p HDMI over IP Extender Splitter Kit (receiver & transmitter modules)Power adapter (two units)IR blaster and receiver (one unit)Wall mounting hardware (two units each)Quick Instruction Guide General Source-to-switch range up to 100 m (330 ft.) Switch-to-display rangeup to 100 m (330 ft.)Combined distance source-to-switch-to-display 120 m (396 ft.)Cat6 cable 1080p at 120 m (396 ft.)720p at 160 m (528 ft.)480p at 200 m (660 ft.)1080p at 100 m (330 ft.)720p at 140 m (462 ft.)480p at 180 m (594 ft.)Power 5 VDC / 2 A (cable: 1.4 m [4.5 ft.]) ConnectionsConnections One HDMI female, 19-pin (transmitter/receiver)One RJ45 female (transmitter/receiver)One 5 VDC power female, OD 5.5 mm / ID 2.1 mm (transmitter/receiver)Two 3.5 mm IR female (transmitter/receiver) Signal Input/Output Input video signal 0.5 – 1.0 V p-pInput DDC signal 5 V p-p (TTL)Maximum single-link range 1.65 Gbps and 1080p resolution Output video HDCP 1.2, DVI 1.0 Frequency1.65 Gbps / 165 MHz Supported Video Resolutions SDTV/HDTV/UHDTV 480i/576i/480p/576p/720p/1080i/1080pPhysical Dimensions 100 x 59 x 25 mm (3.9 x 2.3 x 1 in.)Weight 0.66 kg (1.45 lbs.)Housing metalOperating EnvironmentOperation Temperature 0 – 40°C (32 – 104°F)Storage Temperature -20 – 60°C (-4 – 140°F)Humidity (noncondensing) 20 – 96%
