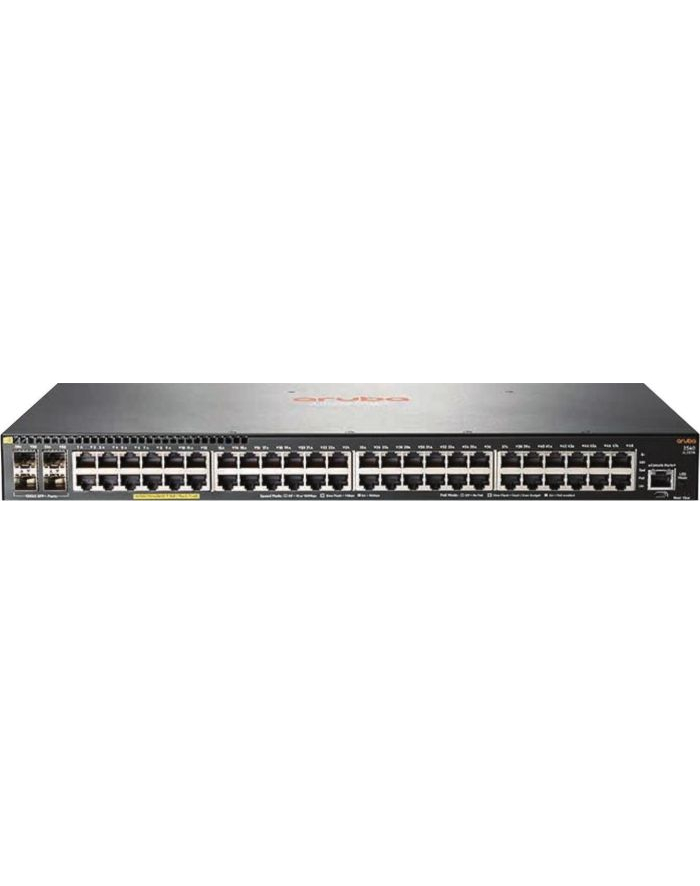

HEWLETT PACKARD - NW Aruba 2540 48G PoE+ 4SFP+ Switch

Aruba 2540 48G PoE+ 4SFP+ Switch Overview Designed for digital workplaces. The Aruba 2540 Switch Series is optimized for mobile users. With enhanced security, Atuba ClearPass Policy Manager and Aruba AirWave network management, this Access Switch is easy to place and manage. With support from Aruba Central, you can easily set up remote network branches with little or no IT knowledge. The powerful Aruba ProVision ASIC delivers performance, robust support functions, and programmability flexibility for future applications. The Aruba 2540 Switch Series provides a convenient and cost-effective wired access solution, ensuring zero-touch connectivity. PoE + models provide power to all access ports for wireless APs (Access Points), security cameras, and IoT (Internet of Things) devices The Aruba 2540 has cable backbone bandwidth speed based on 10 GbE uplinks, a robust QoS system, static and RIP routing, IPv6, including a limited warranty without the need for software registration. - Management: Fully Managed - Layer 3 Dynamic: L2 switching / L3 Static routing / RIP routing - 48x PoE + 10/100/1000 RJ45 ports + 4x SFP + ports - Mounting in a 19 "rack. - Network and security management with tools like Aruba ClearPass Policy Mnagaer and Aruba AirWave - Lifetime Warranty! - Repair in exchange the next working day! - Extensive network of HP service centers in the Czech Republic and Slovakia I / O ports: 48 RJ-45 autosensing 10/100/1000 PoE + ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE +); Duplex: 10BASE-T / 100BASE-TX: half or full; 1000BASE-T: full only 4 SFP + 1 / 10GbE ports; PHY-less 1000BASE-T: full only 4 SFP + 1 / 10GbE ports; PHY-less Extra ports and slots: 1 dual-personality (RJ-45 or USB micro-B) serial console port Physical characteristics: Dimensions: 17.42 (w) x 7.88 (d) x 1.73 (h) in. (44.25 x 20.02 x 4.39 cm) (1U height) Weight: 9.83 lb (4.46 kg) Memory and processor: Dual Core ARM® Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5 MB Ingress / 7.875 MB Egress, 4 GB eMMC Execution: Latency time: 1,000 MB Latency: <3.8 µs (64-byte packets) 10 Gbps Latency: <1.6 µs (64-byte packets) Throughput: up to 112.0 Mpps Switching capacity: 176 Gbps Routing table: 2,000 entries (IPv4), 1,000 entries (IPv6) MAC address table: 16,384 entries Environment: Operating temperature: 32 ° F to 113 ° F (0 ° C to 45 ° C); up to 5,000 Feet, -0 ° C to 40 ° C (32 ° F to 104 ° F) up to 10,000 Feet Operating relative humidity: 15% to 95% @ 104 ° F (40 ° C), noncondensing Storage temperature: -40 ° F to 158 ° F (-40 ° C to 70 ° C); up to 15,000 Feet Storage relative humidity: 15% to 95% @ 149 ° F (65 ° C), noncondensing Acoustics: Power: 55.7 dB, Pressure: 41.7 dB Airflow: Side-to-side Electrical properties: Frequency: 50/60 Hz 80+ certification: Silver Maximum temperature variance: 1566 BTU / hr (1652.13 kJ / hr) Voltage: 100–127 / 200–240 VAC, rated Current: 5.1 / 2.5 A Maximum power: 459 W Idle power: 48.6 W PoE Power: 370 W PoE + Security: UL 60950-1, 2nd Edition; EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + A2: 2013; IEC 60950-1: 2005 + A1: 2009 + A2: 2013; CSA 22.2 No. 60950-1-07 2nd; EN 60825-1: 2007 / IEC 60825-1: 2007 Class 1 Emissions: VCCI Class A; CNS 13438; ICES-003 Class A; FCC CFR 47 Part 15, Class A; EN 55022: 2010 / CISPR-22, Class A Resilience: EN 55024: 2010 / CISPR 24, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 61000-3-2, IEC 61000-3-2, EN 61000-3-3, IEC 61000-3-3 Management: Aruba Central; Aruba AirWave Network Management; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP; Out-of-band management (serial RS-232C or micro USB

Funkcja: switch
Typ: samodzielny, Rack (przez winkiel montażowy)
Złącza sieciowe: 48x RJ-45, 4x SFP+
Prędkości: 48x RJ-45 (10/?100/?1000Base-T), 4x SFP+ (1G/?10Gb/?s)
PoE: 48x RJ-45 PoE+ (48x 30W), łącznie: 370W
backplane: 176Gb/?s, 112Mp/?s, 9KB Jumboframes, 12.38MB Bufor pakietów, 16K Adresów MAC
Obsługiwane funkcje: 802.1AB, 802.1AX, 802.1D, 802.1Q, 802.1X, 802.1ap, 802.1p, 802.1s, 802.1v, 802.1w, 802.3, 802.3ab, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3u, 802.3x, IGMPv3, MLDv2
Konfiguracja: interfejs web, konsola, port szeregowy (RJ-45, USB 2.0 Micro-B), przez Cloud
Chłodzenie: aktywne
Wymiary (SxWxG): 443x44x304mm, 1U
Waga: 4.46kg
Kolor produktu: czarny
Cechy dodatkowe produktu: obudowa metalowa, odejmowane winkle mocujące, możliwe aktualizacje firmware
Gwarancja producenta: dożywotnia (10 lat w AT/?DE)
