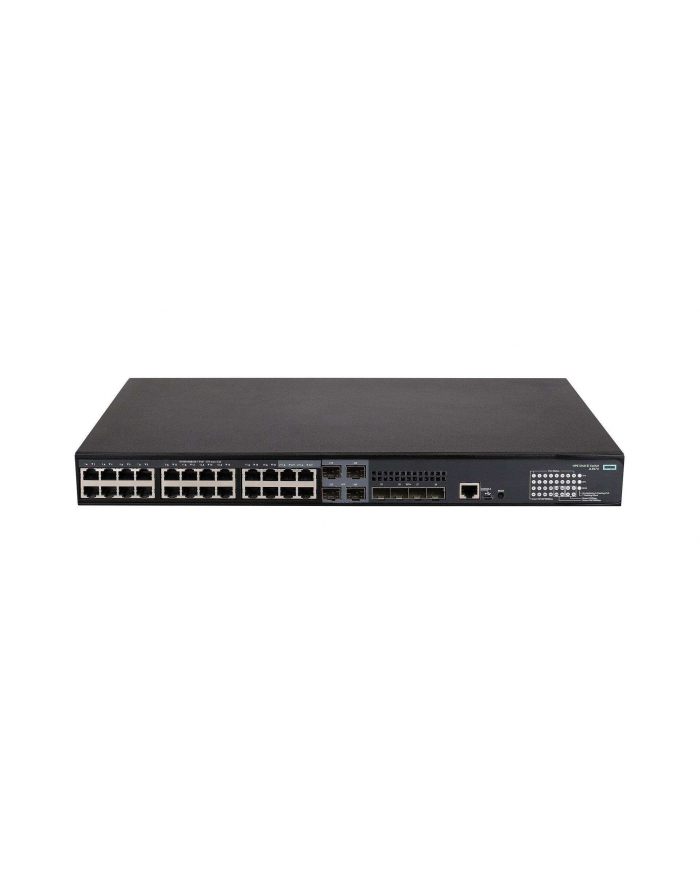

Hewlett Packard HPE Switch 5140 24G PoE+ 4SFP+ EI 24xGBit/4xSFP+ JL827A

HPE FlexNetwork 5140 24G PoE+ 4SFP+ EI Switch HPE FlexNetwork 5140 48G 4SFP+ EI Switch (JL829A)The HPE FlexNetwork 5140 EI Switch Series comprises Gigabit Ethernet switches that support static, OSPF and RIP Layer 3 routing, convenient fixed 10GbE uplink ports, PoE+, ACLs, IPv6 and delivers energy savings with Energy Efficient Ethernet. Unique Intelligent Resilient Fabric (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in small data centers. High availability, simplified management, and comprehensive security control policies are among the key features that distinguish this series.I/O ports and slots48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only4 SFP+ fixed 1000/10000 SFP+ portsAdditional ports and slots1 RJ-45 serial console portPhysical characteristicsDimensions17.32(w) x 9.04(d) x 1.72(h) in (44 x 23 x 4.36 cm) (1U height)Weight7.72 lb (3.5 kg)Memory and processor512 MB SDRAM, 256 MB flashMounting and enclosureMounts in an EIA standard 19-inch telco rack or equipment cabinet (Rack Mount Kit R8M91A sold separately)PerformanceIPv6 Ready Certified1000 Mb Latency< 5 µs10 Gbps Latency< 3 µsThroughput131 MppsRouting/Switching capacity176 GbpsRouting table size1024 entriesMAC address table size16384 entriesEnvironmentOperating temperature23°F to 113°F (-5°C to 45°C)Operating relative humidity10% to 90%, noncondensingNon-operating/Storage temperature-40°F to 158°F (-40°C to 70°C)Non-operating/Storage relative humidity5% to 95%, noncondensingAcousticLow-speed fan: 42.2 dB, High-speed fan: 49.3 dB; ISO 7779Electrical characteristicsFrequency50/60 HzMaximum heat dissipation130/153 BTU/hr (137.15/161.42 kJ/hr), For AC powered units. For DC powered units heat dissipation is 130 BTU/hr min, 171 BTU/hr maxVoltage100 - 240 VAC-48 to -60 VDCCurrent10 AMaximum power rating44 WIdle power38 WNotes:- Idle power is the actual power consumption of the device with no ports connected.- Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.- Power ratings for AC power indicated above. Current used is 5A Max when DC Power used. For DC input power, idle power is 38W, maximum DC power used is 50W.SafetyUL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; ROHS ComplianceEmissionsFCC Part 15 Subpart B CLASS A; ICES-003 CLASS A; VCCI-CISPR 32 CLASS A; EN 55032 CLASS; AS/NZS CISPR32 CLASS A; CISPR 24; EN 55024; EN 61000-3-2; EN 61000-3-3; ETSI EN 300 386; GB/T 9254; YD/T 993ImmunityGenericEN 55024ESDEN300 386ManagementIMC - Intelligent Management Center; SmartMC; command-line interface; Web browser; SNMP ManagerServicesRefer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office. HPE FlexNetwork 5140 24G PoE+ 4SFP+ (370W) EI Switch (JL827A )I/O ports and slots24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) with 4 combo ports (RJ-45 or SFP); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full onlyAdditional ports and slots1 RJ-45 serial console portPhysical characteristicsDimensions17.32(w) x 10.24(d) x 1.72(h) in (44 x 26 x 4.36 cm) (1U height)Weight17.64 lb (8 kg)Memory and processor512 MB SDRAM, 256 MB flashMounting and enclosureMounts in an EIA standard 19-inch telco rack or equipment cabinet (Rack Mount Kit R8M91A sold separately)PerformanceIPv6 Ready Certified1000 Mb Latency< 5 µs10 Gbps Latency< 3 µsThroughput95 MppsRouting/Switching capacity128 GbpsRouting table size1024 entriesMAC address table size16384 entriesEnvironmentOperating temperature23°F to 113°F (-5°C to 45°C)Operating relative humidity10% to 90%, noncondensingNon-operating/Storage temperature-40°F to 158°F (-40°C to 70°C)Non-operating/Storage relative humidity5% to 95%, noncondensingAcousticLow-speed fan: 44.4 dB, High-speed fan: 53.6 dB; ISO 7779 Electrical characteristicsFrequency50/60 Hz Maximum heat dissipation102/1569 BTU/hr (107.61/1655.29 kJ/hr), for AC Power. For DC Power min heat dissipation is 85 BTU/hr and max heat dissipation is 2695 BTU/hr Voltage100 - 240 VAC, -54 to -57 VDC Current10 A Maximum power rating451 W Idle power30 W PoE power370 W PoE+ Notes:- Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE Power is the power supplied by the internal power supply. When supplemented with the use of an HPE RPS1600 Redundant Power System, up to 740 W of PoE+ can be supplied.- Max current rating for DC power is 25A. AC Input power is 30W typical, and 460W max(including 370W PoE+ consumption. DC Input voltage range is -54 to -57VDC. Total DC input power is 25W Typical and 790W with 740W PoE+ Power consumption. DC Input voltage range is -54VDC to -57VDC. DC Input Source is the HPE RPS1600.SafetyUL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; ROHS ComplianceEmissionsFCC Part 15 Subpart CLASS A; ICES-003 CLASS A; VCCI-CISPR 32 CLASS A; EN 55032 CLASS; AS/NZS CISPR32 CLASS A; CISPR 24; EN 55024; EN 61000-3-2; EN 61000-3-3; ETSI EN 300 386; GB/T 9254; YD/T 993ImmunityGenericEN 55024ESDEN300 386ManagementIMC - Intelligent Management Center; SmartMC; command-line interface; Web browser; SNMP Manager.ServicesRefer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.ModelsHPE FlexNetwork 5140 24G POE+2SFP+2XGT EI SwitchJL823AHPE FlexNetwork 5140 48G PoE+ 4SFP+ EI SwitchJL824AHPE FlexNetwork 5140 48G POE+ 2SFP+ 2XGT EI SwitchJL825AHPE FlexNetwork 5140 24G SFP w/8G Combo 4SFP+ EI SwitchJL826AHPE FlexNetwork 5140 24G PoE+ 4SFP+ EI SwitchJL827AHPE FlexNetwork 5140 24G 4SFP+ EI SwitchJL828AHPE FlexNetwork 5140 48G 4SFP+ EI SwitchJL829AHPE FlexNetwork 5140 24G 2SFP+ 2XGT EI SwitchR8J41AHPE FlexNetwork 5140 8G 2SFP 2GT Combo EI SwitchR8J42A Key featuresGigabit Ethernet access switch with static layer 3 routing, RIP, high density 10GbE uplinks and POE+ models for voice, video and wirelessIRF technology that enables plug-and-play device aggregation and link aggregation across multiple devicesEmbedded network management capabilities at no additional cost with Smart Management Centre (SmartMC)Energy-saving green design features such as automatic switching of idle ports to energy-saving mode and powering down unused ports Standard FeaturesSoftware-defined networkingOpenFlow Supports OpenFlow 1.3 specification to enable SDN by allowing separation of the data (packet forwarding) and control (routing decision) paths Quality of Service (QoS)Broadcast control Allows limitation of broadcast traffic rate to cut down on unwanted network broadcast trafficAdvanced classifier-based QoSClassifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or whole switchPowerful QoS feature Supports the following congestion actions: strict priority (SP) queuing, weighted round robin (WRR), and SP+WRRTraffic policing Supports Committed Access Rate (CAR) and line rate ConnectivityAuto-MDIX Automatically adjusts for straight-through or crossover cables on all 10/100/1000 portsFlow control Provides back pressure using standard IEEE 802.3x, reducing congestion in heavy traffic situationsHigh-density connectivity Provides up to 48 fixed 10/100/1000BASE-T ports in a Layer 2/Layer 3 switchIEEE 802.3at Power over Ethernet (PoE+) supportSimplifies deployment and dramatically reduces installation costs by helping to eliminate the time and cost involved in supplying local power at each access point locationEthernet operations, administration and maintenance (OAM) Detects data link layer problems that occurred in the qqq1qqq1last mileqqq1qqq1 using the IEEE 802.3ah OAM standard; monitors the status of the link between two devices Resiliency and high availabilitySeparate data and control paths Separate control from services and keeps service processing isolated; increases security and performanceExternal redundant power supply Provides high reliabilitySmart link Allows 100 ms failover between linksSpanning Tree/MSTP, RSTP, PVST+, RPVST+ Link redundancy with support for protocols such as Multiple Spanning Tree Protocol (MSTP), Rapid Spanning Tree Protocol (RSTP), Per-VLAN Spanning Tree (PVST+), Rapid Per-VLAN Spanning Tree (RPVST+), Equal-Cost Multipath (ECMP), and Smart Link provides high availabilityIntelligent Resilient Fabric (IRF)Creates virtual resilient switching fabrics, where two or more switches perform as a single L2 switch and L3 router; switches do not have to be co-located and can be part of a disaster-recovery system; servers or switches can be attached using standard LACP for automatic load balancing and high availability; can eliminate the need for complex protocols like Spanning Tree Protocol, (), or VRRP, thereby simplifying network operation Layer 3 routingStatic IP routing Provides manually configured routing for both IPv4 and IPv6 networksOpen Shortest Path First (OSPF) An Interior Gateway Protocol (IGP) that uses a link state routing algorithm; supports OSPFv1/v2 and OSPFv3Routing Information Protocol (RIP)Uses a distance vector algorithm with UDP packets for route determination; supports RIPv1 and RIPv2 routing; includes loop protection ManagementRemote configuration and management Enables configuration and management through a secure Web browser or a CLI located on a remote deviceManager and operator privilege levels Provides read-only (operator) and read/write (manager) access on CLI and Web browser management interfacesCommand authorizationLeverages HWTACACS to link a custom list of CLI commands to an individual network administratorqqq1s login; also provides an audit trailSecure Web GUI Provides a secure, easy-to-use graphical interface for configuring the module via HTTPSMultiple configuration files Stores easily to the flash imageComplete session logging Provides detailed information for problem identification and resolutionRemote monitoring (RMON)Uses standard SNMP to monitor essential network functions; supports events, alarm, history, and statistics group plus a private alarm extension groupIEEE 802.1AB Link Layer Discovery Protocol (LLDP)Advertises and receives management information from adjacent devices on a network, facilitating easy mapping by network management applicationssFlow (RFC 3176)Provides scalable ASIC-based wirespeed network monitoring and accounting with no impact on network performance; this allows network operators to gather a variety of sophisticated network statistics and information for capacity planning and real-time network monitoring purposesManagement VLAN Segments traffic to and from management interfaces, includingCLI/telnet, a Web browser interface, and SNMPRemote intelligent mirroringMirrors ingress ACL-selected traffic from a switch port or VLAN to a local or remote switch port anywhere on the networkDevice Link Detection Protocol (DLDP)Monitors a cable between two compatible switches and shuts down the ports on both ends if the cable is broken, which prevents network problems such as loopsIPv6 managementProvides future-proof networking because the switch is capable of being managed whether the attached network is running IPv4 or IPv6; supports pingv6, tracertv6, Telnetv6, TFTPv6, DNSv6, syslogv6, FTPv6, SNMPv6, DHCPv6, and RADIUS for IPv6TroubleshootingIngress and egress port monitoring enables network problem-solving; virtual cable tests provide visibility into cable problemsSmart Management Center (SmartMC)Embedded network management tool with a web-based GUI to simplify operations and facilitate centralized management. It is made available at no additional cost and offers centralized configuration backup, software version management and seamless switch replacement. HPE Intelligent Management Center (IMC)Integrates fault management, element configuration, and network monitoring from a central vantage point; built-in support for third-party devices enables network administrators to centrally manage all network elements with a variety of automated tasks, including discovery, categorization, baseline configurations, and software images; the software also provides configuration comparison tools, version tracking, change alerts, and moreNetwork ManagementSNMP v1/v2c/v3, MIB-II with Traps, and RADIUS Authentication Client MIB (RFC 2618); embedded HTML management tool with secure access SecurityAccess control lists (ACLs) Provides IP Layer 2 to Layer 4 traffic filtering; supports global ACL, VLAN ACL, port ACL, and IPv6 ACLIEEE 802.1XIndustry-standard method of user authentication using an IEEE 802.1X supplicant on the client in conjunction with a RADIUS serverMAC-based authentication Client is authenticated with the RADIUS server based on the clientqqq1s MAC addressIdentity-driven security and access control- Per-user ACLsPermits or denies user access to specific network resources based on user identity and time of day, allowing multiple types of users on the same network to access specific network services without risking network security or providing unauthorized access to sensitive data- Automatic VLAN assignment Automatically assigns users to the appropriate VLAN based on their identitiesSecure management access Delivers secure encryption of all access methods (CLI, GUI, or MIB) through SSHv2, SSL, HTTPS and/or SNMPv3Secure FTP/ SCPAllows secure file transfer to and from the switch; protects against unwanted file downloads or unauthorized copying of a switch configuration fileGuest VLAN Provides a browser-based environment to authenticated clients that is similar to IEEE 802.1XPort security Allows access only to specified MAC addresses, which can be learned or specified by the administratorPort isolation Secures and adds privacy, and prevents malicious attackers from obtaining user informationSTP BPDU port protection Blocks Bridge Protocol Data Units (BPDUs) on ports that do not require BPDUs, preventing forged BPDU attacksSTP root guard Protects the root bridge from malicious attacks or configuration mistakesDHCP protection Blocks DHCP packets from unauthorized DHCP servers, preventing denial-of-service attacksIP source guard Helps prevent IP spoofing attacksDynamic ARP protection Blocks ARP broadcasts from unauthorized hosts, preventing eavesdropping or theft of network dataRADIUS/HWTACACS Eases switch management security administration by using a password authentication server PerformanceNonblocking architecture Up to 176 Gb/s nonblocking switching fabric provides wirespeed switching with up to 130.9 Mpps throughputHardware-based wirespeed access control lists (ACLs)Help provide high levels of security and ease of administration without impacting network performance with a feature-rich TCAM-based ACL implementation Device supportPrestandard PoE Support Detects and provides power to prestandard PoE devices such as wireless LAN access points and IP phones ConvergenceIEEE 802.1AB Link Layer Discovery Protocol (LLDP) Facilitates easy mapping using network management applications with LLDP automated device discovery protocolLLDP-MED Is a standard extension that automatically configures network devices, including LLDP-capable IP phonesLLDP-CDP compatibility Receives and recognizes CDP packets from Ciscoqqq1s IP phones for seamless interoperationIEEE 802.3at Power over Ethernet (PoE+)Provides up to 30 W per port that allows support of the latest PoE+-capable devices such as IP phones, wireless access points, and security cameras, as well as any IEEE 802.3af-compliant end device; eliminates the cost of additional electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deploymentsPoE allocationsSupports multiple methods (automatic, IEEE 802.3af class, LLDP-MED, or user-specified) to allocate PoE power for more efficient energy savingsVoice VLAN Automatically assigns VLAN and priority for IP phones, simplifying network configuration and maintenanceIP multicast snooping (data-driven IGMP) Prevents flooding of IP multicast traffic Additional informationGreen IT and powerImproves energy efficiency through the use of the latest advances in silicon development; shuts off unused ports and utilizes variable-speed fans, reducing energy costsGreen initiative support Provides support for RoHS and WEEE regulationsUnified Hewlett Packard Enterprise Comware operating system with modular architectureProvides an easy-to-enhance-and-extend feature set, which doesnqqq1t require whole-scale changes; all switching, routing, and security platforms leverage the Comware OS, a common unified modular operating system Energy Efficient Ethernet (EEE) Support Reduces power consumption in accordance with IEEE 802.3az Layer 2 switching16K MAC address table Provides access to many Layer 2 devicesVLAN support and tagging Supports IEEE 802.1Q with 4,094 simultaneous VLAN IDsIEEE 802.1ad QinQ and selective QinQIncrease the scalability of an Ethernet network by providing a hierarchical structure; connect multiple LANs on a high-speed campus or metro network10GbE port aggregation Allows grouping of ports to increase overall data throughput to a remote deviceDevice Link Detection Protocol (DLDP)Monitors link connectivity and shuts down ports at both ends if unidirectional traffic is detected, preventing loops in STP-based networksJumbo Frame Support Improves the performance of large data transfers; supports frame size of up to 9K-bytes Layer 3 servicesAddress Resolution Protocol (ARP)Determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 networkDynamic Host Configuration Protocol (DHCP)Simplifies the management of large IP networks; supports client; DHCP Relay enables DHCP operation across subnetsLoopback interface address Defines an address that can always be reachable, improving diagnostic capabilityUser Datagram Protocol (UDP) helper functionAllows UDP broadcasts to be directed across router interfaces to specific IP unicast or subnet broadcast addresses and prevents server spoofing for UDP services such as DHCPRoute maps Provide more control during route redistribution; allow filtering and altering of route metricsDHCP server Centralizes and reduces the cost of IPv4 address management Warranty and supportLimited Lifetime WarrantySee Warranty check for warranty and support information included with your product purchase.Software releasesTo find software for your product, refer to http://www.hpe.com/networking/support; for details on the software releases available with your product purchase, refer to Warranty check
