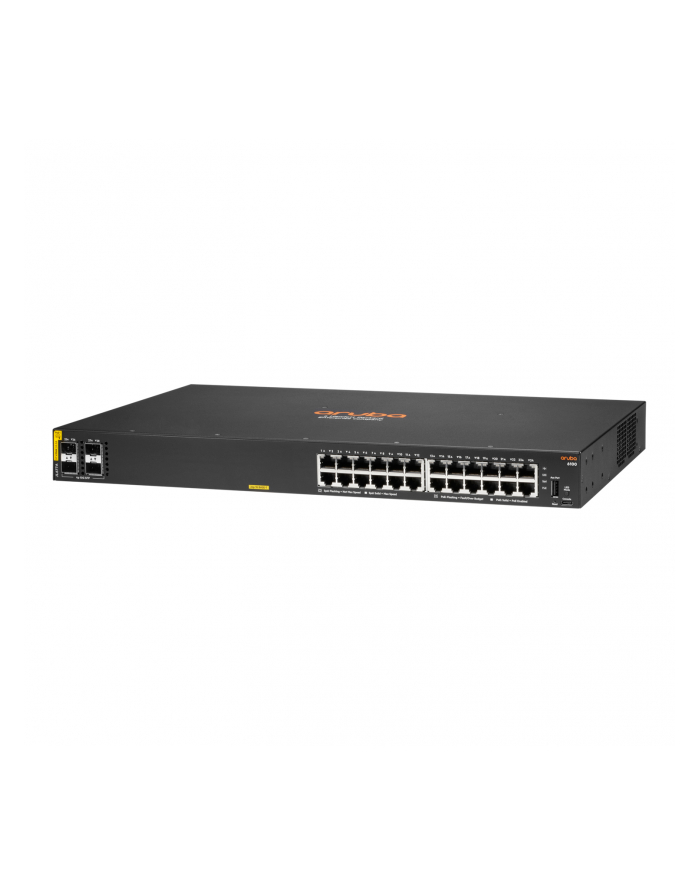

hewlett packard enterprise HPE Aruba 6100 Switch 24G CL4 4SFP+ Europe - English localization

HPE Aruba Networking CX 6100 24G Class4 PoE 4SFP+ 370W SwitchAruba 6100 24G Class4 PoE 4SFP+ 370W Switch JL677AR RENEWŘada přepínačů Aruba CX 6100 je moderní rodina přístupových přepínačů základní úrovně ideální pro pobočky, střední podniky a sítě SMB. Přepínače Aruba CX 6100, navržené pro spolehlivý, jednoduchý a bezpečný přístup, poskytují pohodlné řešení kabelového přístupu pro podnikové sítě podporující IoT, mobilní a cloudové aplikace.Technické parametry24x 10/100/1000Base-T porty4x 1/10G SFP porty1x USB-C Console Port, 1x USB Type-A Host portInterní (pevný) napájecí zdroj (500 W), pevné ventilátoryMaximální výkon: 32,7 W bez PoE, 455 W s PoEVstupní napětí: 100-127 VAC / 200-240 VACPřepínací kapacita: 128 Gb/sPropustnost: 95,2 MppsProcesor: Dual Core ARM Cortex A9 @ 1016 MhzPaměť a Flash: 4 GB DDR3, 16 GB eMMCMožnost PoE: Až 370W Class 4 PoERozměry: 4,39 x 44,2 x 26,82 cmHmotnost: 4,2 kgHPE Aruba Networking CX 6100 Switch SpecificationsHPE Aruba Networking CX 6100 24G Class4 PoE4SFP+ 370W SwitchProduct NumberJL677ADifferentiator24x 10/100/1000BASE-T Ports 4x 1G/10G SFP+ Ports Supports IEEE 802.3af, 802.3at PoE Standards 1x USB-C Console Port 1x USB Type-A Host PortFixed Power Supply (370W Class 4 PoE) Fixed FansPorts24x 10/100/1000BASE-T Ports 4x 1G/10G SFP+ PortsMemory and ProcessorDual Core ARM Cortex A9 @ 1016 MHz 4 GB DDR3 RAM 16 GB eMMC StorageLatency1 Gbps: 1.5 µs 10 Gbps: 1.8 µsThroughput95.2 MppsSwitching Capacity128 GbpsPoE Capability370W Class 4 PoE / PoE+Input Voltage100–127 VAC / 200–240 VACPower ConsumptionMax Power (without PoE): 32.7W Max Power (with PoE): 455WProduct Dimensions4.4 x 44.2 x 26.8 cmWeight4.2 kg SpecificationsAruba 6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A)Description24x ports 10/100/1000BASE-T Ports 4x 1G/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x USB Type-A Host portPower suppliesFixed power supply (500W) Up to 370W of Class 4 PoE PowerFansFixed fansPhysical characteristicsDimensions(H) 4.39 cm (W) 44.2 cm (D) 26.82 cm (1.73qqq1qqq1 x 17.4qqq1qqq1 x 10.56qqq1qqq1)Configuration Weight4.19kg (9.24 lbs)Additional SpecificationsCPUDual Core ARM Cortex A9 @ 1016 MhzMemory and Flash4 GB DDR3 16 GB eMMCPacket Buffer12.38MB (4.5MB Ingress/7.875MB Egress)PerformanceModel Switching Capacity128 GbpsModel Throughput Capacity95.2 MppsAverage Latency (LIFO-64- bytes packets)1 Gbps: 1.5 µSec , 10 Gbps: 1.8 µSecSwitched Virtual Interfaces (dual stack)16IPv4 Host Table (ARP)1,024IPv6 Host Table (ND)512IPv4 Unicast Routes512IPv6 Unicast Routes512MAC Table Capacity8,192IGMP Groups512MLD Groups512IPv4/IPv6/MAC ACL Entries (ingress)256 / 128 / 256 EnvironmentOperating Temperature32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)Operating Relative Humidity15% to 95% at 104°F (40°C) non-condensingNon-Operating-40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km)Non-Operating Storage Relative Humidity15% to 90% @ 149°F (65°C) non-condensingMax Operating Altitude10000 feet (3 km) MaxMax Non-Operating Altitude15000 feet (4.6 km) MaxAcousticSound Power, LWAd = 3.9 Bel Sound Pressure, LpAm (Bystander)= 24.3 dBPrimary AirflowSide-to-sideElectrical CharacteristicsFrequency50 / 60 HzAC Voltage100-127 VAC / 200-240 VACCurrent4.6 A / 2.3 APower Consumption (230 VAC)Idle: 22.9W Max Power (w/o PoE): 32.7W Max Power (w/ PoE): 455WSafety UL 60950-1; IEC 60950-1;EN 60950-1; CAN/CSA-C22.2 No. 60950-1;EN 60825-1UL 62368-1 Ed. 2; IEC62368-1 Ed. 2; EN 62368-1:2014Emissions VCCI-CISPR 32, Class A; CNS13438; ICES-003 Issue 6Class A; FCC CFR 47Part 15, Class A;EN 55032: 2015 +AC:2016 /CISPR-32, Class A Aruba 6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A)Lasers EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only)ImmunityGenericCISPR 24 / CISPR 35ENEN 55024:2010 /EN 55035:2017ESDIEC 61000-4-2RadiatedIEC 61000-4-3EFT/BurstIEC 61000-4-4SurgeIEC 61000-4-5ConductedIEC 61000-4-6Power frequency magnetic fieldIEC 61000-4-8Voltage dips and interruptionsIEC 61000-4-11HarmonicsEN 61000-3-2, IEC 61000-3-2FlickerEN 61000-3-3, IEC 61000-3-3Mounting and Enclosure Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting HPE Aruba Networking CX 6100 Switch SeriesThe HPE Aruba Networking CX 6100 Switch Series is a modern family of entry level access switches ideal for enterprise branch offices and SMB networks. Optimized for reliable, simple, and secure access, the HPE Aruba Networking CX 6100 Switch series switches provide a convenient wired access solution for networks supporting IoT, mobile and cloud applications. CX 6100 Switch series is based on the HPE Aruba Networking ASIC architecture with the programmable AOS-CX operating system used across the entire HPE Aruba Networking CX portfolio for a more consistent, more efficient operator experience. This fully managed Layer 2 switch series has convenient built-in high-speed uplinks with up to 370W of PoE to support IoT devices, such as security cameras and wireless APs, and includes a compact and fanless model ideal for use in quiet workspaces. CX 6100 Switch series supports management choices that include Web GUI, CLI, cloud-based and on-premises HPE Aruba Networking Central, so you can choose the best fit for your needs today with flexibility to change without replacing hardware. With enhanced access security, traffic prioritization, and IPv6 support, the HPE Aruba Networking CX 6100 Switch series also simplifies ownership and brings peace of mind with switch software embedded with no subscription required to enable and a Limited Lifetime Warranty.Key FeaturesEnterprise-class Layer 2 connectivity with support for ACLs, robust QoS and static routingConvenient built-in 1/10GbE uplinks and up to 740W of Class 4 PoE for support of IoT devicesCompact and fanless 12 port model for quiet deploymentManage via single pane of glass with HPE Aruba Networking Central across wired, wireless, and WANAutomated configuration and verification with HPE Aruba Networking NetEditSoftware defined ready with REST APIsSimplify adds, moves and changes with colorless portsStandard FeaturesProduct DifferentiatorsAOS-CX - A modern software systemThe HPE Aruba Networking CX 6100 Switch Series is based on AOS-CX, a modern, database-driven operating system that is built on a modular Linux architecture. This operating system provides the following unique capabilities:Easy access to all network configuration state informationREST APIs for fine-grained programmability of network tasksA micro-services architecture that enables full integration with other workflow systems and servicesAll software processes communicate with the database rather than each other, ensuring near real-time state and resiliencyHPE Aruba Networking ASICs - Programmable innovationBased on over 30 years of continuous investment, HPE Aruba Networkingqqq1s ASICs create the basis for innovative and agile software feature advancements, unparalleled performance, and deep visibility. These programmable ASICs are purpose-built to allow for a tighter integration of switch hardware and software within campus and data center architectures to optimize performance and capacity. The HPE Aruba Networking CX 6100 Switch Series is based on the HPE Aruba Networking ASIC architecture.HPE Aruba Networking Central - Unified single pane of glass managementFlexible cloud-based or on-premises management for unified network operations of wired, WLAN, SD-WAN, and public cloud infrastructure. Designed to simplify day zero through day two operations with streamlined workflows. Switch management capabilities include configuration, onboarding, monitoring, troubleshooting, and reporting.HPE Aruba Networking NetEdit - Automated switch configuration and managementThe entire HPE Aruba Networking CX portfolio empowers IT teams to orchestrate multiple switch configuration changes for smooth end-to-end service rollouts. HPE Aruba Networking NetEdit introduces automation that allows for rapid network-wide changes and ensures policy conformance post network updates. Intelligent capabilities include search, edit, validation (including conformance checking), deployment and audit features. Capabilities include:Centralized configuration with validation for consistency and complianceTime savings via simultaneous viewing and editing of multiple configurationsCustomized validation tests for corporate compliance and network designAutomated large-scale configuration deployment without programmingNotes: A separate software license is required to use HPE Aruba Networking NetEdit.Mobility and IoT performance The HPE Aruba Networking CX 6100 Switch Series uses internally developed HPE Aruba Networking ASICs that provide very low latency, increased packet buffering, and adaptive power consumption. Each switch includes the following:Up to 176 Gbps in non-blocking bandwidth and up to 98.6 Mpps for forwardingSelectable queue configurations that allow for increased performance by defining a number of queues and associated memory buffering to best meet the requirements of network applicationsSimplify adds, moves and changesReduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves and changes with colorless ports using local user roles and local-MAC-Authentication (LMA). Instead of statically pre-configuring access ports to VLANs and maintaining the switch port to VLAN mapping, colorless ports can automatically apply the role/policy required.Enterprise-class access connectivity To address branch office and small enterprise environments, the HPE Aruba Networking CX 6100 Switch series family includes five fixed 1U models. Each switch includes built-in high speed uplinks that automatically detect the use of 1G or 10G transceivers to deliver non-blocking performance. Additional highlights:1U models support 24 and 48 access ports of IEEE 802.3 1GbE with four built-in 1GbE/10GbE uplink SFP+ ports. The 24 port PoE models support up to 370W and the and 48 pot PoE models support up to 740W IEEE 802.3at Class 4 Power over Ethernet for up to 30W per portCompact and fanless model supports 12 ports of IEEE 802.3 1GbE with four uplinks (two built-in 1GbE/10GbE uplink SFP/SFP+ ports, two built-in 1GbE ports), and 139W IEEE 802.3at Class 4 Power over Ethernet for up to 30W per portSupport for Energy Efficient Ethernet IEEE 802.3az reduces power consumption during periods of low network trafficSupport for pre-standard PoE detects and provides power to pre-standard PoE devicesAuto-MDIX provides automatic adjustments for straight through or crossover cables on all 10/100/1000 portsUnsupported Transceiver Mode (UTM) allows to insert and enable all unsupported 1G and 10G transceivers and cables. Note that there is no warranty nor support for the transceiver/cable when this feature is usedJumbo frames allow for high-performance backups and disaster-recovery systems; provides a maximum frame size of 9198 bytesPacket storm protection against broadcast, multicast and unknown unicast storms with user-defined thresholdsResiliency and availabilityTo support a highly-available Layer 2 access deployment, the HPE Aruba Networking CX 6100 Switch series supports the following features:Uni-directional Link Detection (UDLD) to monitor link connectivity and shut down ports at both ends if unidirectional traffic is detected, preventing loops in STPbased networksIEEE 802.3ad LACP supports up to 8 LAGs, each with up to 8 links per LAG; and provides support for static or dynamic groups and a user-selectable hashing algorithmIEEE 802.1s Multiple Spanning Tree provides high link availability in VLAN environments where multiple spanning trees are required; and legacy support for IEEE 802.1d and IEEE 802.1wSmartLink provides easy-to-configure link redundancy of active and standby linksQuality of Service (QoS) features To support congestion actions and traffic prioritization, the HPE Aruba Networking CX 6100 Switch series includes the following:Strict priority (SP) queuingTraffic prioritization (IEEE 802.1p) for real-time classificationClass of Service (CoS) sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServRate limiting sets per-port ingress enforced maximums and per-port, per-queue minimumsLarge buffers for graceful congestion managementSimplified configuration and managementThe HPE Aruba Networking CX 6100 Switch series supports a choice of management interfaces including, easy to use Web GUI, industry standard. CLI, HPE Aruba Networking NetEdit, and HPE Aruba Networking Central for unified network operations of wired, WLAN, SD-WAN, and public cloud infrastructure. Features include:Built-in programmable and easy-to-use REST API interfaceIndustry-standard CLI with a hierarchical structure for reduced training time and expense. Delivers increased productivity in multivendor environmentssFlow (RFC 3176) is ASIC-based wire speed network monitoring and accounting with no impact on network performance; network operators can gather a variety of network statistics and information for capacity planning and real-time network monitoring purposesManagement security restricts access to critical configuration commands, provides multiple privilege levels with password protection and local and remote syslog capabilities allow logging of all accessSNMPv1/v2c/v3 support provides Read capability of industry standard Management Information Base (MIB), and private extensionsSNMP support includes: Write Set Speed and Duplex, Write Port Security, Write POE Priority, Write Config Mgmt, SNMP-Read single OID for average CPU and memory, SNMP MIB ViewSNMP Trap include: Transceiver Traps (insertion/removal), SNMP Trap, SNMP MIB-SNMB Authentication, SNMPv2 MIB, Port Sec MIB-Port Sec, Config MIB-Running Config Change, Config MIB, AAA Server MIB, AAA Server StateRemote monitoring (RMON) with standard SNMP to monitor essential network functions. Supports events, alarms, history, and statistics groups as well as a private alarm extension groupTFTP and SFTP support offers different mechanisms for configuration updates; trivial FTP (TFTP) allows bidirectional transfers over a TCP/ IP network; Secure File Transfer Protocol (SFTP) runs over an SSH tunnel to provide additional securityDebug and sampler utility supports ping and traceroute for IPv4 and IPv6Network Time Protocol (NTP) synchronizes timekeeping among distributed time servers and clients; keeps timekeeping consistent among all clock-dependent devices within the network so the devices can provide diverse applications based on the consistent timeIEEE 802.1AB Link Layer Discovery Protocol (LLDP) advertises and receives management information from adjacent devices on a network, facilitating easy mapping by network management applicationsDual flash images provide independent primary and secondary operating system files for backup while upgradingMultiple configuration files can be stored to a flash imageUnidirectional link detection (UDLD) monitors the link between two switches and blocks the ports on both ends of the link if the link goes down at any point between the two devicesLayer 2 SwitchingThe following Layer 2 services are supported:VLAN support and tagging support for IEEE 802.1Q (4094 VLAN IDs) and 512 VLANs simultaneouslyJumbo packet support improves the performance of large data transfers; supports frame size of up to 9,220 bytesRapid Per-VLAN Spanning Tree (RPVST+) allows each VLAN to build a separate spanning tree to improve link bandwidth usage; is compatible with PVST+STP supports standard IEEE 802.1D STP, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) for faster convergence, and IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)MVRP allows automatic learning and dynamic assignment of VLANsBridge Protocol Data Unit (BPDU) tunneling transmits STP BPDUs transparently, allowing correct tree calculations across service providers, WANs, or MANsPort mirroring duplicates port traffic (ingress and egress) to a monitoring port; supports 4 mirroring groupsInternet Group Management Protocol (IGMP) Controls and manages the flooding of multicast packets in a Layer 2 networksLayer 3 ServicesThe following Layer 3 services are supported:Address Resolution Protocol (ARP) determines the MAC address of another IP host in the same subnet; supports static ARPsDomain Name System (DNS) provides a distributed database that translates domain names and IP addresses, which simplifies network design; supports client and serverSupports internal loopback testing for maintenance purposes and increased availability; loopback detection protects against incorrect cabling or network configurations and can be enabled on a per-port or perVLAN basis for added flexibilityDynamic Host Configuration Protocol (DHCP) simplifies the management of large IP networks and supports client; DHCPv4 Relay support enables DHCP operation across subnetsLayer 3 Routing The following Layer 3 routing services are supported:Static IP routing provides manually configured routes.Dual stack static IPv4 and IPv6 routing provides simple manually configured IPv4 and IPv6 routingDual IP stack maintains separate stacks for IPv4 and IPv6 to ease the transition from an IPv4-only network to an IPv6-only network designMulticast IGMP Snooping allows multiple VLANs to receive the same IPv4 multicast traffic, lessening network bandwidth demand by reducing multiple streams to each VLANMulticast Listener Discovery (MLD) enables discovery of IPv6 multicast listeners; support MLD v1 and v2Internet Group Management Protocol (IGMP) utilizes Any-Source Multicast (ASM) to manage IPv4 multicast networks; supports IGMPv1, v2, and v3IP multicast snooping (data-driven IGMP) prevents flooding of IP multicast trafficIPv6 capabilities IPv6 host enables switches to be managed in an IPv6 networkDual stack (IPv4 and IPv6) transitions from IPv4 to IPv6, supporting connectivity for both protocolsMLD snooping forwards IPv6 multicast traffic to the appropriate interfaceIPv6 ACL/QoS supports ACL and QoS for IPv6 network trafficIPV6 static routingSecurity provides RA guard, dynamic IPv6 lockdown, and ND snooping
