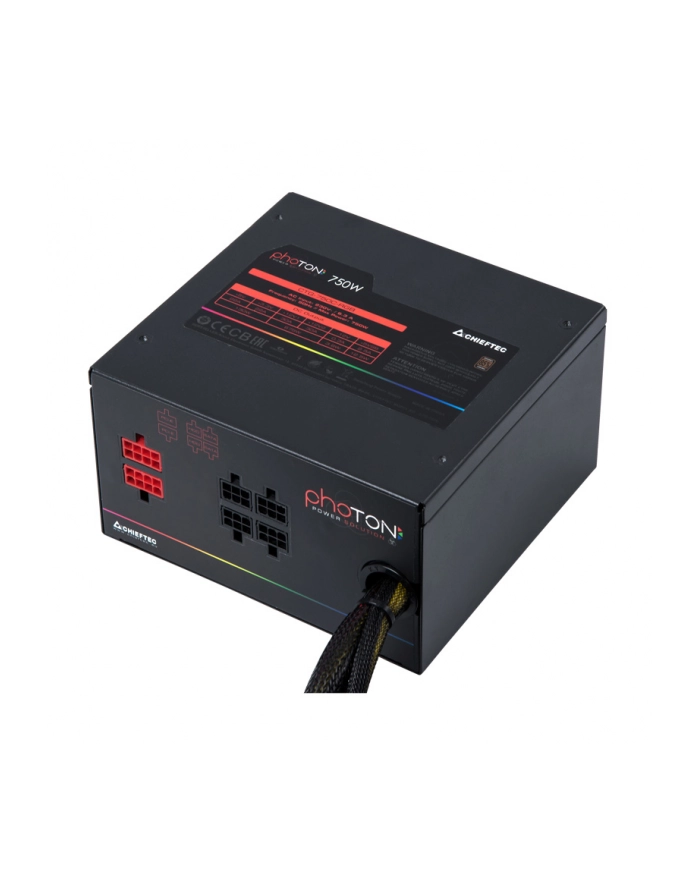

Chieftec Photon CTG-750C-RGB 750W ATX23 - Photon bronze

PSU format:ATX; Connectors:8pin CPU 1x, PCIe 6-pin, PCIe 8-pin, SATA 15-pin, Molex, FDD; Motherboard connectors:ATX 20-pin, ATX 24-pin, EPS 8-pin; PSU properties:Modular cablingSupports all renowned RGB synchronization systems - Rainbow RGB fan with a +5V addressable LED connector - High-Performance (85% Eff. @230V) RGB Gaming The highly innovative Photon series are aimed at gamers and enthusiasts, looking for the ultimate in power, longevity, performance and of course, RGB lightning effects and all this at a highly affordable price. The +5V addressable LED connector of the PSU offers an extreme wide range of lightening modes and effects, supports all renowned RGB lightening synchronization systems such as ASUS™ AURA SYNC, MSI™ MYSTIC LIGHT SYNC, ASROCK™ POLYCHROME SYNC and GIGABYTE™ RGB FUSION. Photon series in addition provide a vast number of predefined and MB-independent lightening modes and effects, which are set via a button on the rear of the power supply while a minute toggle switch, equally located on the rear of the PSU allows the choice between the M/B RGB control (if available) or the integrated modes and effects. With its modular cables and related vast amount of connectors, an efficiency of 85% @230V, coupled with its highly competitive price positioning, the models of the Photon series stand out as perfect RGB Gaming solutions.PerformanceModelPhoton 750WArticle no.CTG-750C-RGBEAN code0753263075925Gewicht (Netto/Brutto)2,15 kg / 2,55 kgAC Input230V / 6,3AFrequency50Hz+5V22A+3,3V22A+5V & +3,3V combined130W+12V 130A+12V 230A+12V 1 & +12V 2 combined675WP.F.>0,9-12V0,3A / 3,6W+5VsB2,5A / 12,5WMaximum Power750W Connectors24PIN ATX18 PIN EPS (4+4)18 PIN PCIe (6+2)4SATA6MOLEX4FLOPPY2+5V RGB LED1 Cable length24PIN ATX5508 PIN EPS (4+4)6008 PIN PCIe (6+2)2x 550/150SATA2x 450/150/150MOLEX2x 450/150/150FLOPPYMolex+5V RGB LED600/100 FeaturesSpecificationATX 12V 2.3Form factorPS IIEfficiency>85%Lightning modes17x dynamic modes integratedDimension (DxWxH)140 mm x 150 mm x 87 mmPFCActive PFC (0,9) (only 230V)Fan120mm silent RGB Rainbow fanSecurityUVP (Undervoltage protection)OVP (Overvoltage protection)SCP (Short-circuit protection)OPP (Overload protection)AFC (Automatic Fanspeed Control)SIP (Surge & Inrush Protection)Warranty24 Months

Typ produktu: zasilacz komputerowy
Czarny kolor
EAN: 0753263075925
Kod producenta: CTG-750C-RGB
Moc: 750W
: 675W
: 130W
: Do 85%
: 230 V
: 6,3 A przy 230 V / 50 Hz
Domyślnie: ATX12V 2.3
Projekt: ATX
Natężenie prądu: 22 A
: 22A
: 2,5A
: 0,3 A
: 30A
: 30A
Korekcja współczynnika mocy: aktywny PFC
Złącza: 1x 24-pin ATX12V-2.x, 1x 4+4-pin 12V, 2x 4-pin 3.5", 4x 4-pin 5.25", 4x 6+2-pin grafiki , 6x 15-pin SATA
Złącza RGB: adresowalne nagłówki RGB
Standard RGB: AURA Sync, Mystic Light, RGB Fusion, RGB LED
Oświetlenie: tak, RGB
Kabel: tak
Chłodzenie: 1x wentylator 120mm
: Kontrola temperatury
Zabezpieczenia: Ochrona przed przepięciem (OVP), Ochrona podnapięciowa (UVP), Ochrona przed przeciążeniem (OLP/OPP), Ochrona przed zwarciem (SCP), Ochrona przeciwprzepięciowa (SIP)
Wymiary: Szerokość: 150mm x Wysokość: 87mm x Głębokość/Długość: 140mm
Waga: 2,2 kg
