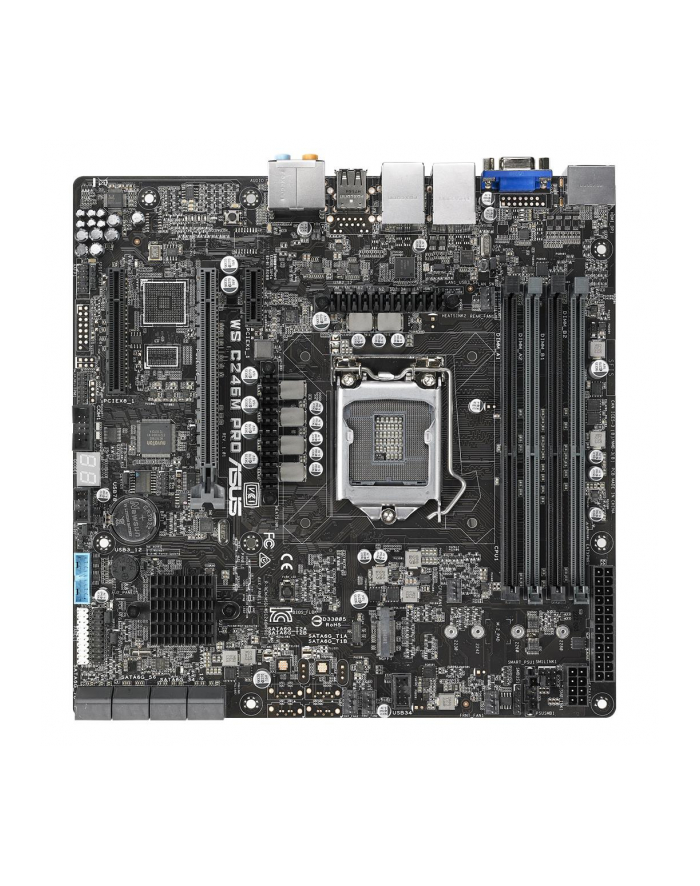

ASUS WS C246M PRO - 1151

WS C246M PRO Compact, rack-optimized Intel® LGA1151 micro-ATX motherboard with M.2, USB 3.1 Gen2 connectors and dual Gigabit LAN Rack-optimized design for better cooling efficiency and stability Supports up to three independent displays simultaneously via HDMI, DisplayPort and VGA Accelerated data-transfer speeds of up to 32Gbps with M.2 Onboard USB 3.1 for fast transfer speeds of up to 10Gbps Dual Intel® Gigabit LAN with teaming support ASUS Control Center — A software utility that provides convenient, secure and cost-saving centralized IT management for small and medium businesses TECHNICAL SPECIFICATIONS Processor / System Bus 1 x Socket LGA1151Intel® Xeon® processor E-2100 familyThe 8th/9th generation Intel® Core™ i3/Pentium®/Celeron® ProcessorIntel® Core™ i9/i7/i5/i3 processorsIntel® Xeon® E ProcessorsE-2100/E-2200*Refer to support page for more information Core Logic Intel® C246 Chipset Memory Total Slots: 4 (2-channel)Capacity: Maximum up to 128GB UDIMMMemory Type:Dual Channel DDR4 2666/2400 UDIMM non ECC and with ECCMemory Size:32GB, 16GB, 8GB UDIMM* Refer to support page for more information Expansion Slots Total Slot: 3Slot Location 1: PCI-E x1 (Gen2 X1 Link)Slot Location 2: PCI-E x16 (Gen3 X16 Link)Slot Location 3: PCI-E x8 (Gen3 X4 Link) Form Factor U ATX (244 x 244mm) Storage SATA Controller:Intel® C246 Chipset8 x SATA3 6Gb/s portsIntel® Rapid Storage Technology(RST) (For Linux/Windows)(Support Software RAID)SAS Controller:ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional) Networking 1 x Intel® I210AT1 x i219-LM On Board I/O 2 x USB 2.0 pin header1 x USB 3.0 pin header1 x M.2 Connector , NGFF Type : 2280/2260/22421 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)1 x COM port1 x TPM header1 x S/PDIF Out (Optical) Back I/O Ports 2 x USB 3.1 ports (Type A)2 x USB 3.0 ports2 x USB 2.0 ports1 x HDMI1 x DisplayPort1 x VGA2 x RJ-45 ports8-channel Audio I/O ports (5+1 Audio jacks) Management Solution WfM 2.0, DMI 3.0, WOL by PME, WOR by PME, PXE Accessories Gift Box (1-in-1)1 x Support CD1 x I/O shield8 x SATA 6G cables1 x Com port cable1 x User manual1 x Quick start guide1 x M.2 screwBulk Pack (10-in-1)1 x Support CD10 x I/O shield80 x SATA 6G cables10 x Com port cable1 x User manual1 x Quick start guide10 x M.2 screw Monitoring CPU TemperatureFan RPM

Budowa: microATX
Typ: 1x Intel Socket 1151 v2
Chipset: Intel C246
RAM: 4x DDR4 DIMM, dual PC4-21300E/?DDR4-2666, max. 64GB (UDIMM)
Sloty rozszerzeń: 1x PCIe 3.0 x16, 1x PCIe 3.0 x8 (x4), 1x PCIe 2.0 x1, 1x M.2/?M-Key (PCIe 3.0 x4/?SATA, 2280/?2260/?2242/?2230)
Złącza zewnętrzne: 1x VGA, 1x HDMI 1.4, 1x DisplayPort 1.2, 2x USB-A 3.1 (C246), 2x USB-A 3.0, 2x USB-A 2.0, 2x Gb LAN (Intel I219-LM/?Intel I210-AT), 5x wtyczka jack, 1x Toslink
Złącza wewnętrzne: 2x USB 3.0, 4x USB 2.0, 8x SATA 6Gb/s (C246), 1x port szeregowy, 1x TPM-Header
Header Chłodzenie: 1x Wentylatory CPU 4-Pin, 4x wentylator 4-Pin
Header Oświetlenie: brak
Przyciski/przełączniki: przycisk Power (wewn.), USB BIOS Flashback (wewn.)
Audio: 7.1 (Realtek ALC887)
Poziom RAID: 0/?1/?5/?10 (C246)
Multi Procesor graficzny: brak
Złącza zasilania: 1x 24-Pin ATX, 1x 8-Pin EPS12V
Grafika: IGP (przez CPU/?APU)
Oświetlenie: brak
Cechy dodatkowe produktu: Audio+solid capacitors, dioda diagnostyczna
Gwarancja producenta: trzy lata (realizacja tylko przez sklepy)


ASUS WS C246M PRO. Producent procesora: Intel, Gniazdo procesora: LGA 1151 (Socket H4), Procesor: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®, Intel® Xeon®. Obsługiwane rodzaje pamięci: DDR4-SDRAM, Maksymalna pojemność pamięci: 64 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: SATA III. Kontroler LAN: Intel® I210-AT, Intel I219LM. Przeznaczenie: PC, Rodzaj płyty: micro ATX, Rodzina płyt z chipsetami: Intel
