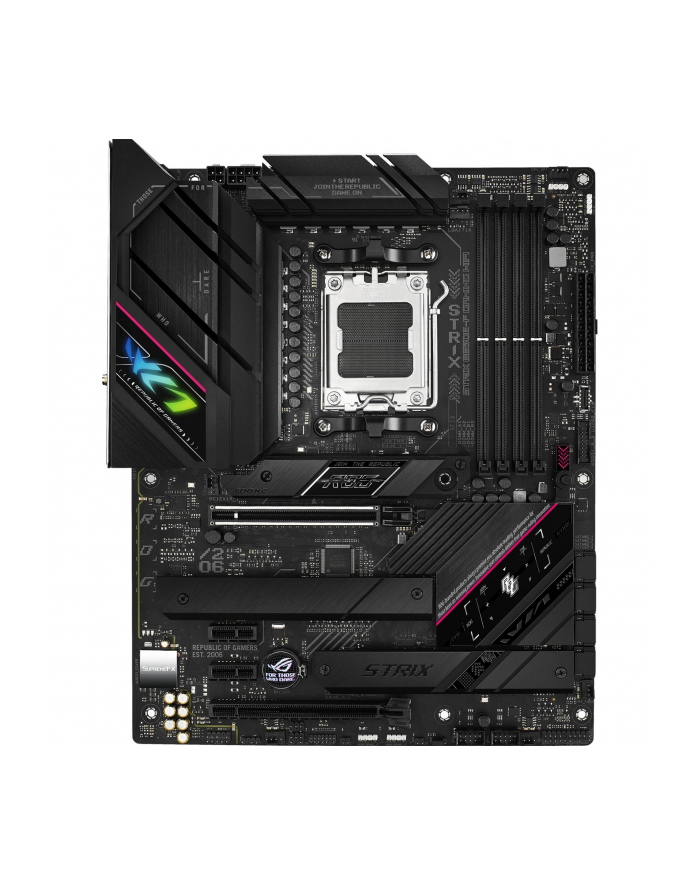

ASUS Asus ROG STRIX B650E-F GAMING WIFI - Socket AM5 - motherboard

Format:ATX; Chipset:AMD B650; Socket:Socket AM5 (LGA 1718); Motherboard memory module type:DDR5; RAID support:0, 1, 10; PCI express 16x:2ROG STRIX B650E-F GAMING WIFIThis mean machine is the heart of your next hot rod. With the stunning speed of PCIe 5.0 and WiFi 6E, hearty cooling from onboard heasinks, and advanced power design engineered for the latest Ryzen™ processors, the ROG Strix B650E-F leaves its competition in the dust.CPUAMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors** Refer to www.asus.com for CPU support list.ChipsetAMD B650Memory4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports AMD EXTended Profiles for Overclocking (EXPO™)OptiMem II* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.Graphics1 x DisplayPort*1 x HDMI port*** Supports max. 8K@60Hz as specified in DisplayPort 1.4. **Supports 4K@60Hz as specified in HDMI 2.1.Expansion SlotsAMD Ryzen™ 7000 Series Desktop Processors1 x PCIe 5.0 x16 slotAMD B650 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)*2 x PCIe 4.0/3.0 x1 slots* PCIe 4.0 x16 slot (supports x4 mode) from AMD B650 Chipset shares bandwidth with M.2_3.StorageTotal supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*AMD Ryzen™ 7000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)AMD B650 ChipsetM.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)**4 x SATA 6Gb/s port*AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.** M.2_3 slot shares bandwidth with PCIe 4.0 x16 slot (supports x4 mode) When M.2_3 slot is operating in PCIe mode, M.2_3 will be disabled.Ethernet1 x Intel 2.5Gb EthernetASUS LANGuardWireless & BluetoothWi-Fi 6E2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)Supports 2.4/5GHz frequency bandBluetooth v5.2* Wi-Fi 6E 6GHz regulatory may vary between countries, and function will beready in Windows 11 or later.USBRear USB (Total 12 ports)1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)4 x USB 3.2 Gen 1 port (4 x Type-A)4 x USB 2.0 ports (4 x Type-A)Front USB (Total 7 ports)1 x USB 3.2 Gen 2 connector (supports USB Type-C)1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers supports additional 4 USB 2.0 portsAudioROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playbackAudio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP- Rear optical S/PDIF out port- Premium audio capacitors- Audio coverBack Panel I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)4 x USB 3.2 Gen 1 ports (4 x Type-A)4 x USB 2.0 ports (4 x Type-A)1 x DisplayPort1 x HDMI port1 x Wi-Fi Module1 x Intel I225-V 2.5Gb Ethernet port5 x Audio jacks 1 x BIOS FlashBack™ buttonInternal I/O ConnectorsFan and Cooling related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header4 x 4-pin Chassis Fan headersPower related 1 x 24-pin Main Power connector1 x 8-pin +12V Power connector1 x 4-pin +12V Power connectorStorage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s portsUSB 1 x USB 3.2 Gen 2 connector (supports USB Type-C)1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers supports additional 4 USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x AURA RGB header1 x Clear CMOS header1 x CPU Over Voltage jumper1 x Front Panel Audio header (AAFP)1 x S/PDIF Out header1 x 20-3 pin System Panel header with Chassis intrude function1 x Thermal Sensor header1 x Thunderbolt™header1 x COM_DEBUGheaderSpecial FeaturesExtreme Engine Digi+- 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch- PCIe Slot Q-Release- Q-LED- Q-DIMM- Q-SlotASUS Thermal Solution- M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- ProCool- Pre-mounted I/O shield- SafeSlot- SafeDIMMAURA Sync- AURA RGB header- Addressable Gen 2 headersSoftware FeaturesROG Exclusive Software- GameFirst VI- ROG CPU-Z- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion- Sonic Radar III- DTS Sound Unbound - Anti-virus softwareASUS Exclusive SoftwareArmoury Crate- AIDA64 Extreme (60 days free trial) - AURA Creator- AURA Sync- Fan Xpert 4- Power Saving- Two-Way AI Noise CancellationAI Suite 3- TPU- DIGI+ VRM- Turbo app- PC CleanerMyAsusWinRARUEFI BIOSASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ ModeFlexKeyBIOS256 Mb Flash ROM, UEFI AMI BIOSManageabilityWOL by PME, PXEAccessoriesCables2 x SATA 6Gb/s cables Additional Cooling Kit1 x Thermal pad for M.2Miscellaneous1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack1 x M.2 Q-Latch package1 x ROG key chain1 x ROG Strix stickers1 x ROG Strix thank you card2 x M.2 Rubber PackagesDocumentation1 x User guideOperating SystemWindows 11 64-bitForm FactorATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Das ASUS ROG STRIX B650E-F GAMING WIFI basiert auf dem AMD-B650-Chipsatz und unterstützt AMD-Prozessoren für den Sockel AM5. Es verfügt über vier DDR5-Slots für bis zu 192 GB Arbeitsspeicher. Zur weiteren Ausstattung des ROG STRIX B650E-F GAMING WIFI gehören ein PCIe-5.0-x16-Slot und ein PCIe-4.0-x16-Slot. Außerdem verfügt das ASUS ROG STRIX B650E-F GAMING WIFI über 8-Kanal-Sound, eine Gigabit-LAN-Schnittstelle, WiFi 6E, Bluetooth 5.2, vier SATA3-Anschlüsse, drei M.2-Anschlüsse und eine Reihe an USB Schnittstellen.

Das ASUS ROG STRIX B650E-F GAMING WIFI basiert auf dem AMD-B650-Chipsatz und unterstützt AMD-Prozessoren für den Sockel AM5. Es verfügt über vier DDR5-Slots für bis zu 192 GB Arbeitsspeicher. Zur weiteren Ausstattung des ROG STRIX B650E-F GAMING WIFI gehören ein PCIe-5.0-x16-Slot und ein PCIe-4.0-x16-Slot. Außerdem verfügt das ASUS ROG STRIX B650E-F GAMING WIFI über 8-Kanal-Sound, eine Gigabit-LAN-Schnittstelle, WiFi 6E, Bluetooth 5.2, vier SATA3-Anschlüsse, drei M.2-Anschlüsse und eine Reihe an USB Schnittstellen.

ASUS ROG STRIX B650E-F GAMING WIFI. Producent procesora: AMD, Gniazdo procesora: Gniazdo AM5, Procesor: AMD Ryzen™ 7. Obsługiwane rodzaje pamięci: DDR5-SDRAM, Maksymalna pojemność pamięci: 128 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2, SATA III, Obsługiwane rodzaje dysków: HDD & SSD, Poziomy raid: 0, 1, 10. Rodzaj interfejsu sieci Ethernet: 2.5 Gigabit Ethernet, Kontroler LAN: Intel I225-V, Podstawowy standard Wi-Fi: Wi-Fi 6E (802.11ax). Przeznaczenie: PC, Rodzaj płyty: ATX, Rodzina płyt z chipsetami: AMD
