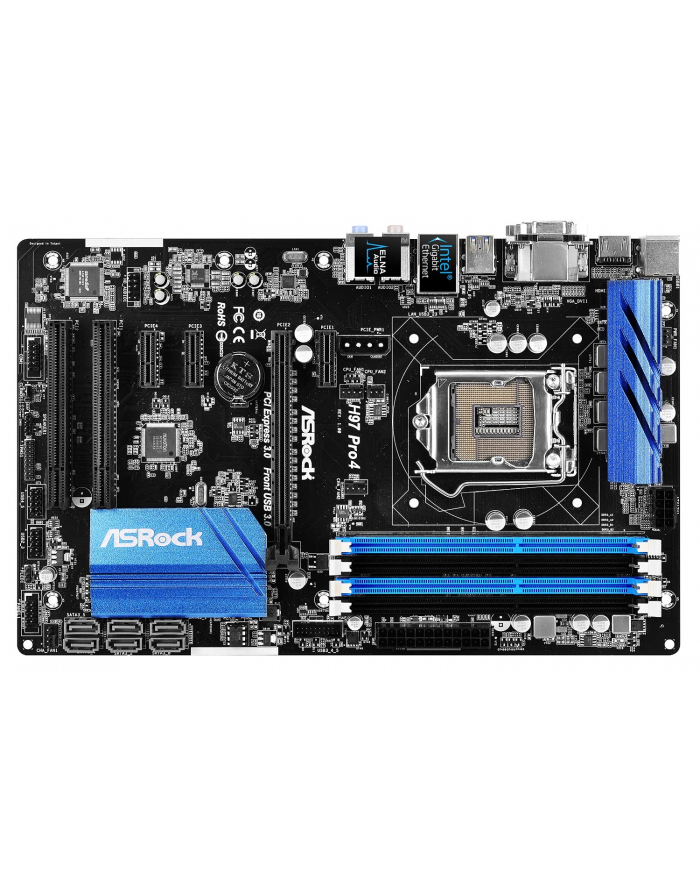

ASROCK H97 PRO4 H97 LGA1150

Opis produktu: ASRock H97 Pro4 - płyta główna - ATX - LGA1150 Socket - H97
Rodzaj produktu: Płyta główna - ATX
Typ chipsetu: Intel H97 ekspresowe
Gniazdo procesora: Socket 1 x LGA1150
Procesor: Pentium kompatybilne, Celeron, Xeon, Core i5, Core i3, Core i7 (obsługuje Intel 5. generacji Core i3 / i5 / i7 Pentium / Celeron /)
Max RAM Rozmiar: 32 GB
RAM Supported: 4 gniazda DIMM DDR3 -, non-ECC, niebuforowana
Porty przechowywania: 6 x SATA-600 (RAID)
Porty USB / FireWire: 4 x USB 3.0, 2x USB 2.0 + (2 x USB 3.0 + 4 x USB 2.0 poprzez nagłówków)
Max Przydzielony RAM Rozmiar: 1792 MB
Dźwięk: HD Audio (8-kanałowy)
LAN: Gigabit Ethernet


Product Specifications General Unique FeatureASRock Super Alloy- Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke)- NexFET™ MOSFET- Sapphire Black PCBASRock Full Spike ProtectionASRock CloudASRock APP Shop CPU- Supports 5th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150)- Supports New 4th and 4th Generation Intel® Xeon®/Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150)- Digi Power design- 4 Power Phase design- Supports Intel® Turbo Boost 2.0 Technology Chipset- Intel® H97- Supports Intel® Small Business Advantage 2.0 Memory- Dual Channel DDR3/DDR3L Memory Technology- 4 x DDR3/DDR3L DIMM Slots- Supports DDR3/DDR3L 1600/1333/1066 non-ECC, un-buffered memory- Max. capacity of system memory: 32GB*- Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. BIOS- 128Mb AMI UEFI Legal BIOS with multilingual GUI support- ACPI 1.1 Compliant wake up events- SMBIOS 2.3.1 support- CPU, DRAM, PCH 1.05V Voltage multi-adjustment Audio, Video and Networking Graphics- Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600- Pixel Shader 5.0, DirectX 11.1- Max. shared memory 512MB*- Three graphics output options: D-Sub, DVI-D and HDMI- Supports Triple Monitor- Supports HDMI with max. resolution up to 1920x1200 @ 60Hz- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)- Supports HDCP with DVI-D and HDMI Ports- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports*The size of maximum shared memory may vary from different operating systems.**Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit. Audio- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)- Premium Blu-ray Audio support- Supports Surge Protection (ASRock Full Spike Protection)- ELNA Audio Caps LAN- Gigabit LAN 10/100/1000 Mb/s- Giga PHY Intel® I218V- Supports Intel® Remote Wake Technology- Supports Wake-On-LAN- Supports Lightning/ESD Protection (ASRock Full Spike Protection)- Supports Energy Efficient Ethernet 802.3az- Supports PXE Expansion / Connectivity Slots- 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)- 3 x PCI Express 2.0 x1 Slots- 2 x PCI Slots Storage- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 13 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug Connector- 1 x COM Port Header- 1 x TPM Header- 1 x Power LED Header- 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)- 2 x Chassis Fan Connectors (2 x 4-pin)- 1 x Power Fan Connector (3-pin)- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 1 x PCIe Power Connector- 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))- 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) Rear Panel I/O- 1 x PS/2 Mouse/Keyboard Port- 1 x D-Sub Port- 1 x DVI-D Port- 1 x HDMI Port- 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))- 4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone Other Features / Miscellaneous Software and BIOSSoftware- ASRock A-Tuning- ASRock Disk Health Report- ASRock USB Key- ASRock System Browser- ASRock APP Charger- ASRock XFast LAN- ASRock XFast RAM- ASRock Restart to UEFIUEFI- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock UEFI Guide- ASRock Instant Flash- ASRock Internet Flash- ASRock Crashless BIOS- ASRock OMG (Online Management Guard)- ASRock UEFI Tech Service- ASRock Dehumidifier- ASRock Easy RAID Installer- ASRock Easy Driver Installer Support CD- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial), Orbweb.ME Professional (Win 8.1) Accessories- Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables Hardware Monitor- CPU/Chassis temperature sensing- CPU/Chassis/Power Fan Tachometer- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)- CPU/Chassis Fan multi-speed control- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore Form Factor- ATX Form Factor- Solid Capacitor design- High Density Glass Fabric PCB OS- Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit Certifications- FCC, CE, WHQL- ErP/EuP ready (ErP/EuP ready power supply is required) Caution:Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS or using the third-party overclocking tools. Overclocking may affect your system stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking. The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed. Informacje podstawowe Asrock Základní desky Socket LGA1150 Asrock Socket LGA1150

Typ socketu w płycie głównej 1150
Obsługiwane procesory
Modele Intel® Core™ i7 (Haswell), Intel® Core™ i5 (Haswell), Intel® Core™ i3 (Haswell), Intel® Pentium G (Haswell), Intel® Celeron G (Haswell), Intel® Xeon E3 v3 (Haswell)
Chipset płyty głównej Intel® H97 Express
Sloty na karty
1x PCIe x16
3x PCIe x1
2x PCI 32 Bit
BIOS 128Mbit AMI UEFI
Format płyty głównej ATX
Obsługiwany zasilacz ATX z EPS (24-Pin + 8-Pin)
Miejsce na pamięć RAM<
maksymalnie 32 GB
Liczba wolnych slotów na pamięci 4x DDR3
Obsługiwany Gwarancja producenta: dożywotnia
Typ pamięci DDR3
Obsługiwane szybkości pamięci DDR3-1066, DDR3-1333, DDR3-1600
Obsługa Dual Channel Tak
Zarządzanie pamięcią z procesora Tak
Porty w płycie głównej (zewnętrzne)
USB 3.0 4 sztuki
USB 2.0 2 sztuki
VGA 1 sztuka
DVI-D 1 sztuka
HDMI 1 sztuka
Wejście mikrofonowe 1 sztuka
Line-In 1 sztuka
Line-Out 4 sztuki
Sieć RJ45 1 sztuka
Złącza (wewnętrzne)
SATA 6 sztuk
Na wentylatory PWM 4 pin 3 sztuki
Na wentylatory 3-pin 2 sztuki
Złącza (opcjonalne) 4x USB 2.0, 2x USB 3.0, 1x szeregowe, TPM
Kontroler SATA Intel® H97 (PCH) (RAID 0, 1, 5, 10)
Wbudowana karta muzyczna Realtek ALC892
LAN Intel® i218V (10/100/1000 MBit/s)
