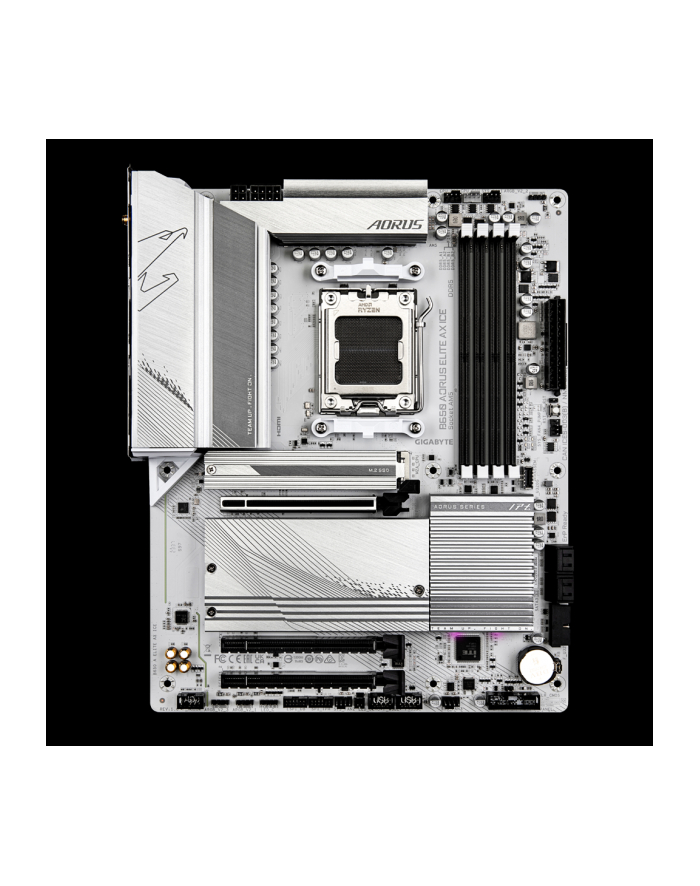

GIGABYTE B650 A ELITE AX ICE AM5 4xDDR5 4xSATA 3xM.2

Format:ATX; Chipset:AMD B650; Socket:Socket AM5 (LGA 1718); Motherboard memory module type:DDR5; RAID support:0, 1, 10; PCI express 16x:3GIGABYTE B650 AORUS ELITE AX ICEAMD Socket AM5:Supports AMD Ryzen™ 7000/ Ryzen™ 8000 Series ProcessorsUnparalleled Performance:Twin 12+2+2 Phases Digital VRM SolutionDual Channel DDR5:4*DIMMs with AMD EXPO™ & Intel XMP Memory Module SupportSuperfast Storage:1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 ConnectorsAdvanced Thermal Design & M.2 Thermal Guard :To Ensure VRM Power Stability & 25110 M.2 SSD PerformanceEZ-Latch:PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless DesignFast Networks:2.5GbE LAN & Wi-Fi 6EExtended Connectivity:HDMI, DP, Front USB-C 20Gb/s, Rear USB-C 10Gb/sSmart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOPQ-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics CardCPUAMD Socket AM5, support for:AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors* Please refer to qqq1qqq1CPU Support Listqqq1qqq1 for more information.ChipsetAMD B650MemorySupport for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to qqq1qqq1Memory Support Listqqq1qqq1 for more information.)Onboard GraphicsIntegrated Graphics Processor with AMD Radeon™ Graphics support:- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz* Support for DisplayPort 1.4 version and HDR.- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support for native HDMI 2.1 TMDS compatible ports.(Graphics specifications may vary depending on CPU support.)StorageCPU:- 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0(Note) x4/x2 SSD support) (M2A_CPU)- 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)Chipset:- 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)- 4 x SATA 6Gb/s connectorsRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, and RAID 10 support for SATA storage devicesEthernetRealtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)Wireless Communication moduleRealtek Wi-Fi 6E RTL8852CE- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.3- Support for 11ax 160MHz wireless(Actual data rate may vary depending on environment and equipment.)AudioRealtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Expansion SlotsCPU:- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)USBCPU:- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panelCPU + USB 2.0 Hub:- 4 x USB 2.0/1.1 ports on the back panelChipset:- 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)- 4 x USB 2.0/1.1 ports available through the internal USB headersChipset+USB 3.2 Gen 1 Hub:- 4 x USB 3.2 Gen 1 ports on the back panelInternal I/O Connectors1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x 4-pin ATX 12V power connector1 x CPU fan header1 x CPU fan/water cooling pump header3 x system fan headers1 x system fan/water cooling pump header3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header3 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C header, with USB 3.2 Gen 2x2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)1 x reset button1 x reset jumper1 x Clear CMOS jumperBack Panel Connectors1 x Q-Flash Plus button2 x SMA antenna connectors (2T2R)jk1 x DisplayPort1 x HDMI port1 x USB Type-C port, with USB 3.2 Gen 2 support2 x USB 3.2 Gen 2 Type-A ports (red)5 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacksI/O ControlleriTE I/O Controller ChipH/W MonitoringVoltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.BIOS1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique FeaturesSupport for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusBundled SoftwareNorton Internet Security (OEM version)LAN bandwidth management softwareOperating SystemSupport for Windows 11 64-bitSupport for Windows 10 64-bitForm FactorATX Form Factor; 30.5cm x 24.4cm
